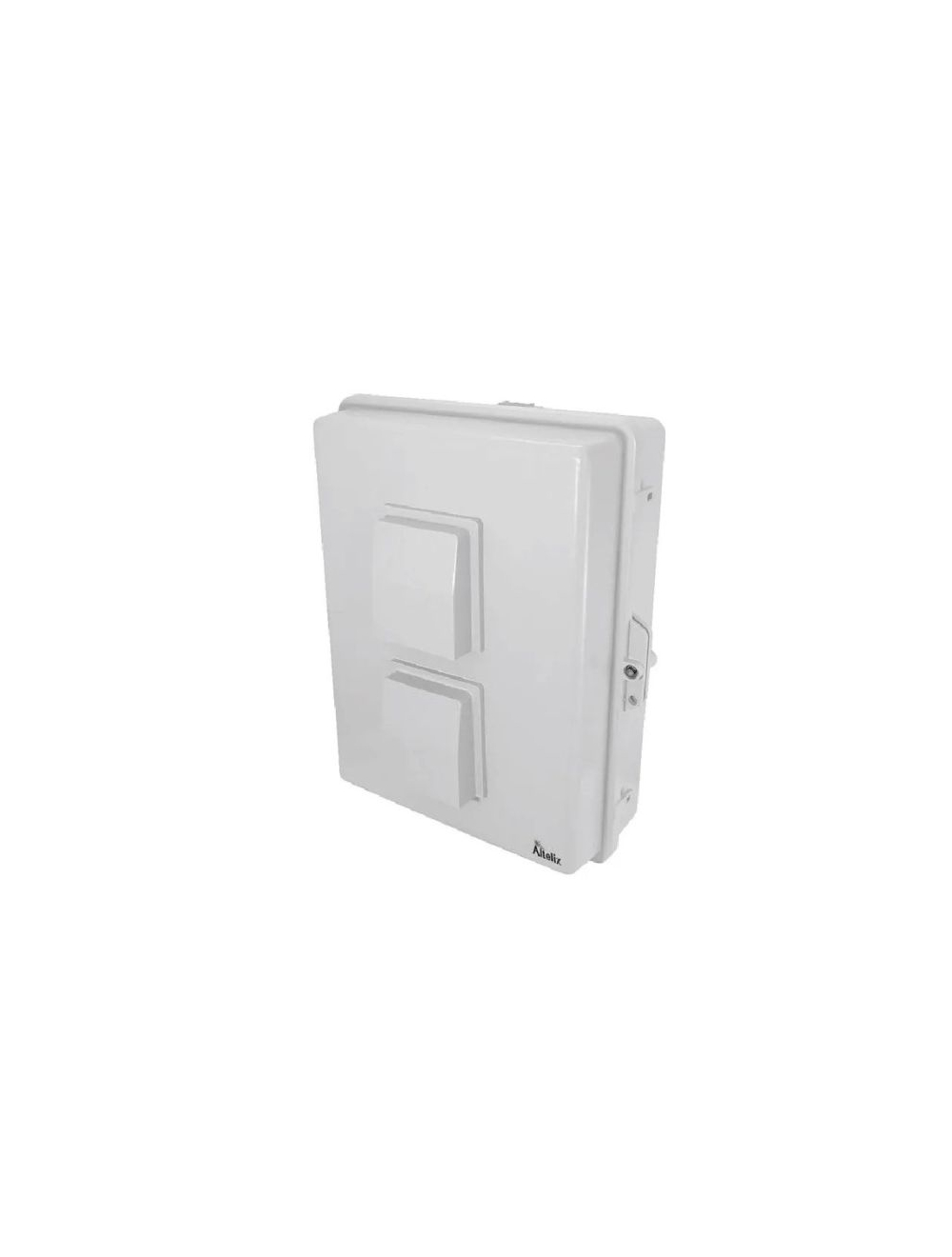

Halco PSC-CGW-200-BLE-SR TruBlu Mesh Long-Range Cellular Outdoor Gateway 120-277 Volt 25429

The built-in range extender provides range connectivity up to 900ft. The integral Gateway is intended to connect to the nearest local network via Ethernet. This device operates on 120–277VAC input voltage and includes 20kA surge protection.

• This integral Gateway is intended to connect to the nearest local network via Ethernet
• This long-range outdoor gateway can be used indoors or outdoors
• Enables Time Scheduling, Real-time Power Consumption, and Occupancy Heat Map
• Input: 120–277 VAC
• Bluetooth range up to 900 ft
• Comes in an Outdoor Rated NEMA 3R Non-Metallic Enclosure
• Configurable using the mwConnect TruBlu web Portal or iOS Phone App

TruBlu™ Mesh Outdoor Long-range Gateway
• Bluetooth® NLC Certified
• Integral Gateway Enables Advanced Features of Lighting Control Network
• Suitable for Outdoor or Indoor use
• Input Voltage 120 to 277VAC
• Gateway Connects to Local Network via Ethernet
• Outdoor Rated NEMA 3R Non-Metallic Enclosure

Key Features
• Outdoor long-range gateway
• Input: 120–277 VAC
• Bluetooth range up to 900 ft (274 m)
• Surface-mounted enclosure
• Operating temp: -4°F to 104°F (-20°C to 40°C)
• Storage temp: -22°F to 122°F (-30°C to 50°C)
• 90–95% non-condensing humidity at 86°F (30°C)

Operation
• Long-range gateway with Bluetooth NLC certification
• Supports true multi-vendor interoperability
• Configurable via TruBlu™ web portal or iOS mobile app
• Enables energy monitoring and demand response
• Ethernet connection for local network communication
• Refer to TruBlu™ Commissioning Manual for more details
