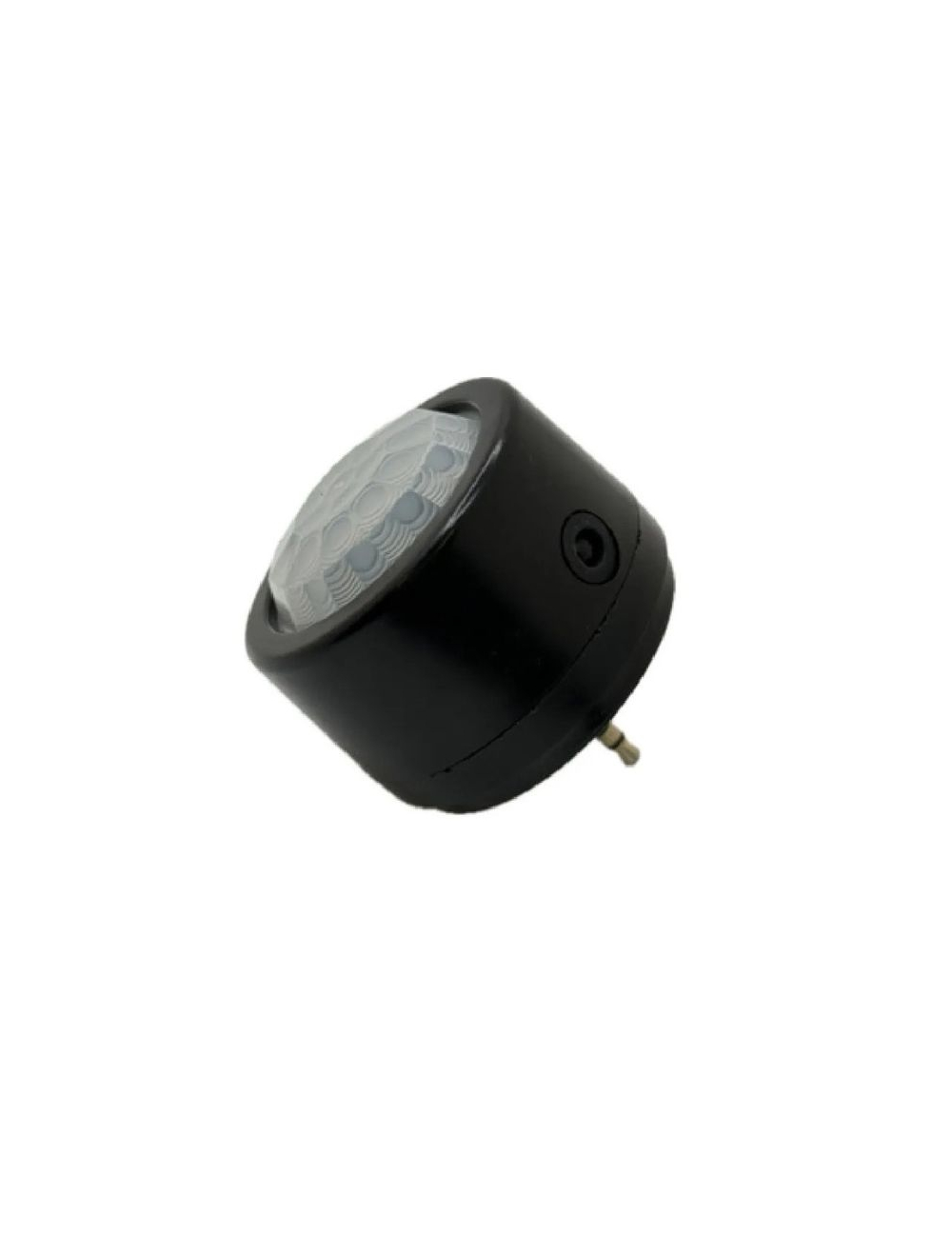

Halco PSC-JAV-I-11H-BLE-SR-BK TruBlu Mesh Wireless PIR High/Low Bay Sensor Controller 12-24 VDC 0-10V with Photocell Black Finish 25418

Designed to operate in temperatures from –20 °C to 45 °C, each controller includes an integral photosensor and a compact form factor for seamless fixture integration. Bluetooth NLC certification and Bluetooth Mesh technology enable wireless dimming and flexible control of luminaires without the need for hardwired connections.

• Bluetooth PIR Sensor/Controller for use with Highbays or Outdoor Fixtures with a 3.5mm audio jack base
• Bluetooth range up to 100Ft
• 0-10V Dimming, 1-Channel, Integrated Photosensor, Zoning
• Mounting Height 20-40FT Sensor Detection Range 80FT Diameter
• Configurable using the mwConnect TruBlu web Portal or iOS Phone App

TruBlu™ Mesh Passive Infrared Sensor-Controller
• Bluetooth® NLC Certified
• 1-Channel 0-10VDC Dimming
• Mounts On Fixture
• PIR Sensor Mounting Height Up To 40 ft (12.2 m)
• Photocell
• High-End Trim, Zoning, Continuous Dimming
• 3.5mm Audio Jack Base
• Quick Connector For Easy Installation
• Powered by 12-24VDC

Key Features
• 1-channel PIR sensor and controller
• 12–24 VDC input, 20 mA max current consumption
• 0–10VDC dimming output
• High bay mounting height: 20–40 ft (6.1–12.2 m)
• Maximum sensor range: 80 ft (24.4 m) diameter
• Fixture mount via audio jack receptacle
• Maximum Bluetooth® range: 100 ft (30.4 m)
• Operating temperature: –20°C to 45°C; black or white housing

Operation
• Bluetooth® NLC certified for true multi-vendor interoperability
• Uses Bluetooth Mesh technology for wireless control
• Configured via TruBlu™ web portal or iOS mobile app
• App supports initial setup and ongoing parameter adjustments
• Optional TruBlu™ Gateway enables energy monitoring and demand response
• Single-channel controller with 0–10V dimming output
• Integral photosensor enables ambient light-based control
• Audio jack mounting for direct fixture integration
