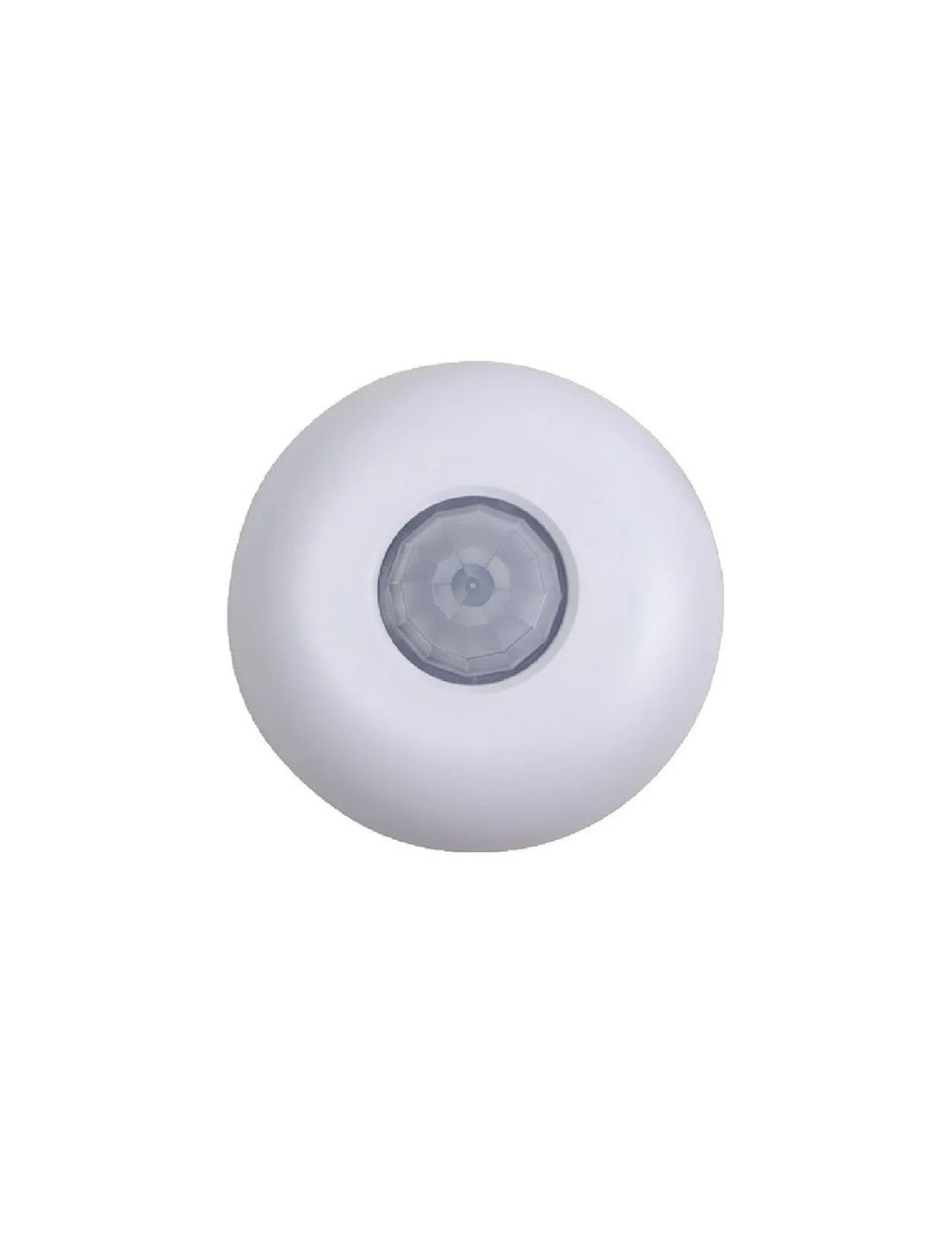

Halco PSC-ND-I-CM-DC-BLE-SR TruBlu Mesh Wireless PIR Ceiling Occupancy Sensor 12-24 VDC 25431

Designed for mounting heights up to 12 ft (3.6 m), it delivers consistent coverage for offices, retail, and commercial environments. The sensor connects to the TruBlu Bluetooth Mesh network for configuration, scheduling, and control through a web portal or mobile app. It can operate with a 12–24 VDC power pack or a driver with auxiliary output, enabling flexible integration into a variety of lighting control systems.

• Room Bluetooth PIR Sensor Mounted to Ceiling up to 12ft
• Use with TruBlu Room Controller 25433
• Can operate with a 12–24 VDC power pack or a driver with auxiliary output
• Has LED Motion Light and 37ft Sensor Radius
• Bluetooth range up to 100 ft
• Provides automatic on/off and daylight-based lighting
• Configurable using the mwConnect TruBlu web Portal or iOS Phone App

TruBlu™ Mesh Wireless PIR Ceiling Occupancy Sensor
• Passive infrared occupancy sensor
• Bluetooth® SIG mesh
• Ceiling Mount
• Mounting height up to 12ft (3.6m)
• LED Motion indicator
• Conforms with DLC NLC5 Cybersecurity Standards

Key Features
• Passive infrared (PIR) occupancy sensing
• Bluetooth® SIG mesh connectivity
• Ceiling mount installation up to 12 ft (3.6 m)
• 12–24 VDC input voltage, 50 mA current consumption
• Sensor range up to 37 ft (11.3 m) radius
• Bluetooth range up to 100 ft (30.4 m)¹
• LED motion indicator
• Meets DLC NLC5 cybersecurity standards
• Operating temp: -22°F to 158°F (-30°C to 70°C); storage: -40°F to 176°F (-40°C to 80°C)
• 5-year warranty

Operation
• Connects to the TruBlu™ Mesh network for setup, scheduling, and control
• Configurable via TruBlu web portal or mobile app
• Supports energy monitoring and demand response with an optional gateway
• Operates with PacWave™ power pack or 12V auxiliary driver output
• Provides automatic on/off and daylight-based lighting control
• Recommended for ceiling-mounted applications up to 12 ft high
