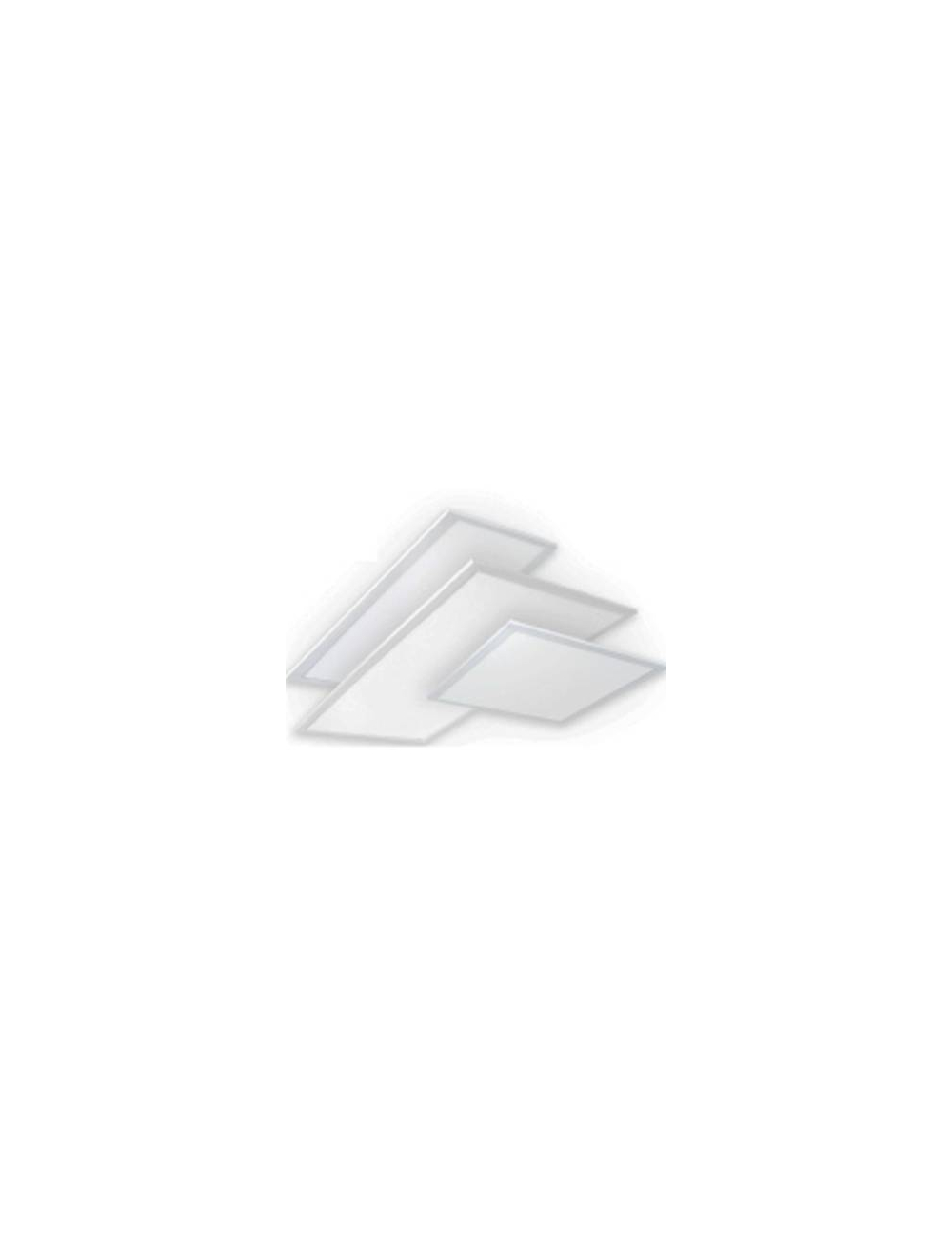

Halco 24FSEPL/8DU Field Selectable Edge Lit Panel 2X4 Selectable CCT 3500/4000/5000K 30/35/45W 10332
Halco’s ProLED Select EdgeLit Panel is the ideal solution where lighting preferences vary from space to space. The EdgeLit Panel Series is Field Selectable, allowing the installer to select both the preferred light output and color temperature (via DIP Switch) on the product driver box.
Performance
- Field Selectable Light Output
· 1x4 Selectable 25W, 30W, 40W
· 2x2 Selectable 25W, 30W, 40W
· 2x4 Selectable 30W, 35W, 45W
- Overall Efficacy >110 lm/W
- Field Selectable CCT
· 3500K, 4000K, 5000K
- CRI >80
- 0-10V Dimming Standard
- Universal 120-277VAC
- L70 Lumen Maintenance > 50,000 hours at 25°C
Design
- Designed for fast and easy install
- UGR <19
- Sleek and Modern Design
Certification
- UL Listed
- R0Hs Compliant
- Damp Location
- IC Rated
- IP40 Rated
Construction
- Field Adjustable Driver via DIP Switch
- PMMA Lens Material
- Die-Cast Steel Housing
| Part Number | 24FSEPL/8DU |
|---|---|
| Manufacturer | Halco Lighting |
| Watts | 30 Watts, 35 Watts, 45 Watts |
| Lumens | 5500 |
| CRI | 80 |
| Color Temperature | 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 0-10V, 120V-277V |
| Minimum Operating Temperature | -40C, -40F |
| Maximum Operating Temperature | 45C, 113F |
| Rated Life | 50,000 hours + |
| Dimensions | 2' x 4' |
| Certifications |  |
| Warranty | 5 Year |
| UPC Code | 807154103324 |
| Lead Time | In Stock - Quick Ship |
