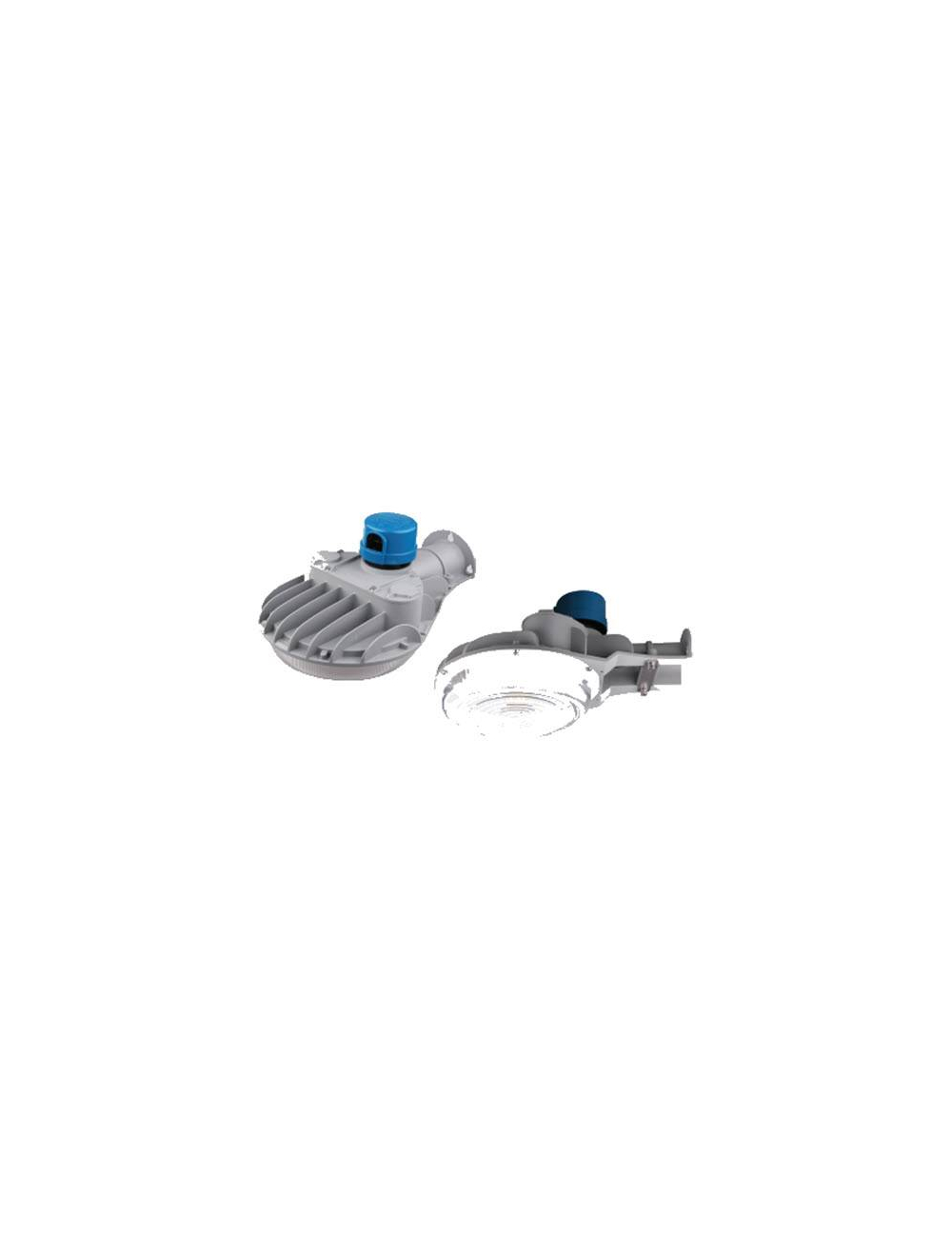

Keystone KT-ALED40-D2D-WM-850-VDIM 40W Dimmable XFit Dusk-to-Dawn LED Area Light Fixtures

40W Compact Dusk-to-Dawn LED Area Light | 120–277V Input | Gray Housing

$166.43

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

KT-ALED40-D2D-WM-850-VDIM

Keystone KT-ALED40-D2D-WM-850-VDIM 40W Dimmable XFit Dusk-to-Dawn LED Area Light Fixtures is available to buy in increments of 2

• Compact design matches appearance and light distribution of legacy HID, optimized for one for one replacements

• Heavy-duty, die-cast aluminum housing with ample heat sinking for enhanced thermal performance

• 3-pin twist-lock photocell included along with integrated NEMA/ANSI C136.10 3-pin twist-lock receptacle

• Impact resistant and highly diffused poly carb lens with anti-yellowing agent, offers reduced glare for low mounting height applications

• Mounts directly to a structure OR a pole arm of 1 5/8”– 2 3/8” diameter with universal clamp

• Powered by Keystone 0–10V dimming LED driver

• Ambient operating temperature: −40ºC/−40ºF to 50ºC/122ºF

• UL Certified for wet locations, IP65

• 0–10V dimming, 10% min

• Power factor: >0.95

• THD: <20%

• LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp

• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions

More Information
Part Number	KT-ALED40-D2D-WM-850-VDIM
Manufacturer	Keystone Technologies
Watts	40 Watts
Lumens	6150
Lumens Per Watt	154
CRI	>80
Color Temperature	5000 Kelvin
Beam Angle	Not Specified
Input Voltage	0-10V
Rated Life	50,000 hours +
Minimum Operating Temperature	−40°F
Maximum Operating Temperature	122ºF
Dimensions	Length: 17.12" Width: 12.4"
Certifications	, , ,
Warranty	5 Year
Lead Time	In Stock - Quick Ship
UPC Code	843654131610
