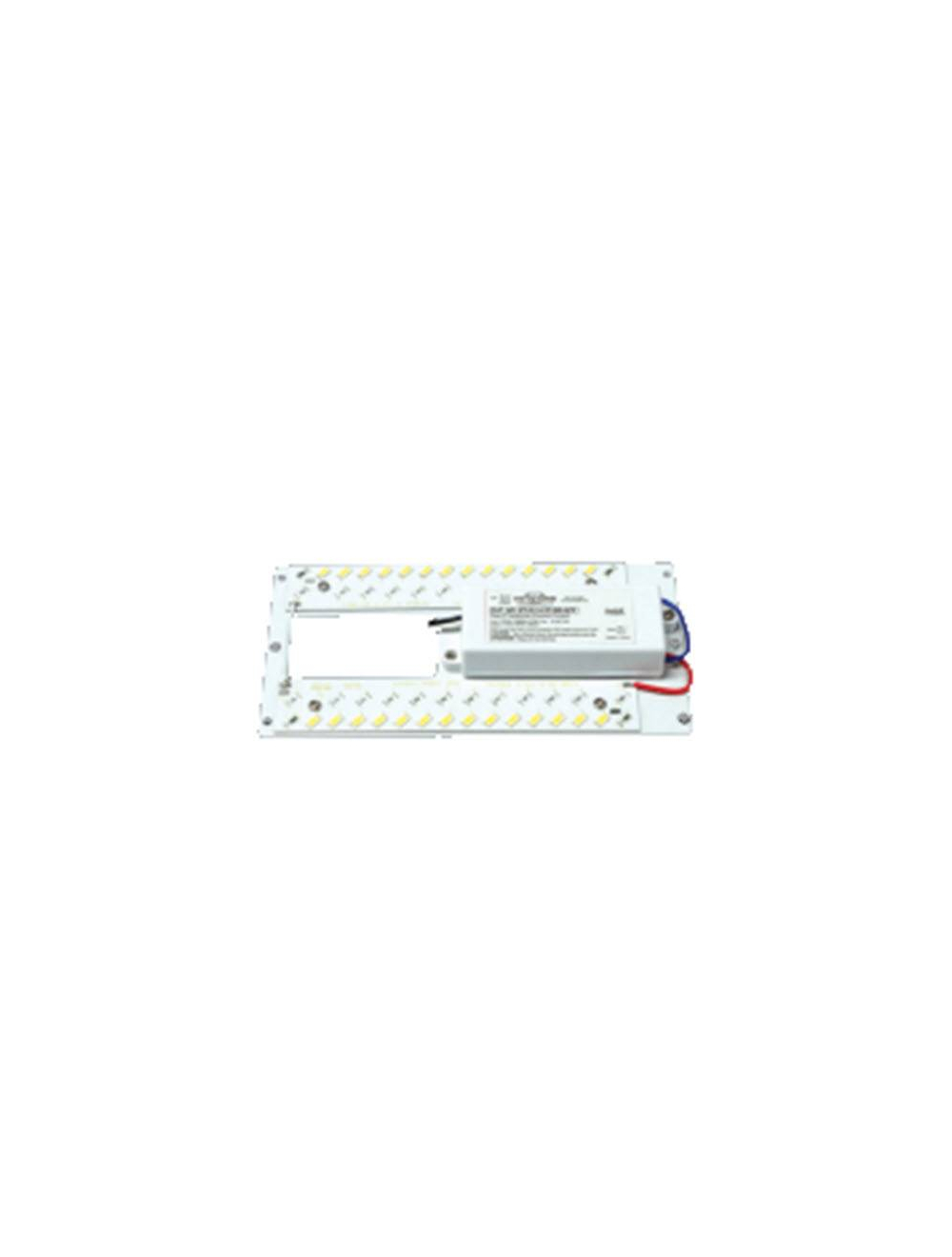

Keystone KT-RKIT-RP-6-1600-8xx 17W 3"x6" 1600 Lumen Rectangular FutureFit LED Kit

Pre-assembled UL 1598C Classified LED retrofit kit. Includes the following components: • (1) LED Driver • (1) LED Module • (1) Metal Pan • Mounting Accessories (Mounting Hardware and Wiring Hardware)

Upgrade surface-mount canopy/security fluorescent-style luminaires to an LED solution. Suitable for after-market or OEM installation. (OEM must have UL LED Luminaire General Coverage file.)

$64.93

Lead Time

In Stock - Quick Ship

SKU

KT-RKIT-RP-6-1600-8xx

Color Temp

3000K

4000K

5000K

Qty:

Keystone KT-RKIT-RP-6-1600-8xx 17W 3"x6" 1600 Lumen Rectangular FutureFit LED Kit is available to buy in increments of 20

Details

• For Use in Class 2 Lighting Systems

• Highly Reflective White Soldermask

• Low Profile WAGO Push Connectors

• UL Recognized Components

• Single-Sided CEM3 Substrate

• 3-Step MacAdam Color Binning

• LM80 Tested LEDs by Samsung

• Beam Angle: 120º • Reported Life Expectancy: L70 > 36,000 hours at Tc <85ºC

• Calculated Life Expectancy: L70 = 93,000 hours at Tc <85ºC

• Maximum Board Temperature at Tc Point: 85ºC

• 120V Input, 0.7 Power Factor

• UL 8750 Recognized Component LED Power Unit

• Meets FCC Part 15 Class B (Consumer) Limit for EMI

• Over Current, Short Circuit, and Open Circuit Protection

• Class 2 Output

• Type 1 Outdoor, Suitable for Dry and Damp Locations

• Up to 194ºF/90ºC Maximum Case Temperature

• THD: <20%

Specifications

More Information
Part Number	KT-RKIT-RP-6-1600-8xx
Manufacturer	Keystone Technologies
Watts	27 Watts
CRI	>80
Color Temperature	3000 Kelvin, 4000 Kelvin, 5000 Kelvin
Dimmable	Yes
Input Voltage	120V
Rated Life	50,000 hours +
Minimum Operating Temperature	-4ºF
Maximum Operating Temperature	113ºF
Dimensions	Length: 6" Width: 3"
Certifications	, ,
Warranty	10 Year
UPC Code	890949011324
Lead Time	In Stock - Quick Ship
