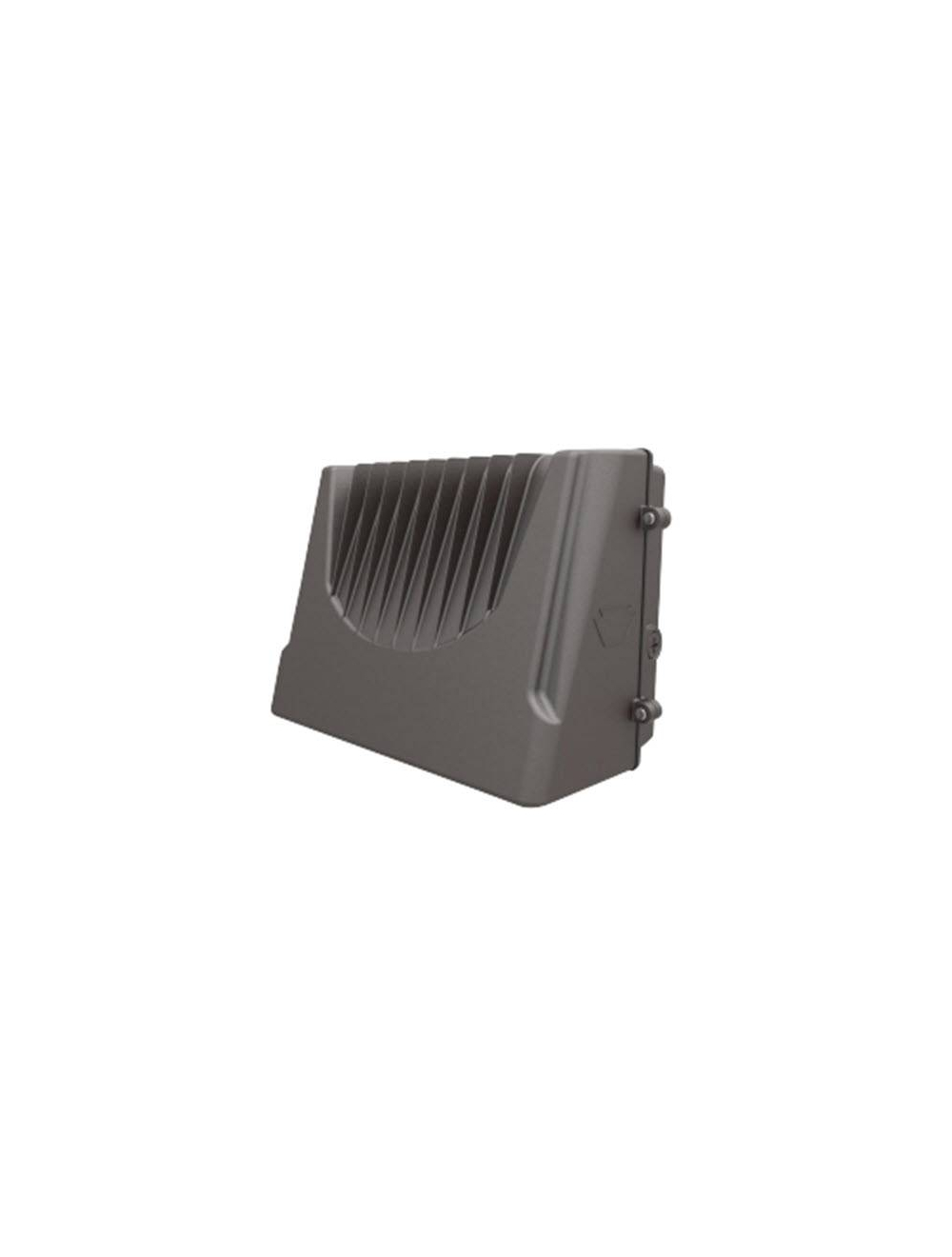

Keystone KT-WPLED100-M2-8XX-VDIM 100W Dimmable XFit Architectural Full-Cutoff Wall Pack

Architectural 100W Full-Cutoff LED Wall Pack | 120–277V Input | 4000–5000K | Medium-Size Bronze Housing | Wide Optic Lens

Building Mount for exterior illumination (perimeters, pathways, loading docks, and other general security lighting requirements)

$296.79

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

KT-WPLED100-M2-8XX-VDIM

Color Temp

4000K

5000K

Qty:

Details

• Architectural full-cutoff design improves the appearance of building exteriors and optimizes functional light distribution

• Heavy-duty, die-cast aluminum housing features modern aesthetics while retaining (5) available 1/2" threaded conduit hubs: (1) on back and (1) on all four sides

• Powered by Keystone 0–10V dimming LED drivers

• Dark Sky friendly performance, eliminates undesirable sky glow and glare

• Features one translucent 3/4" threaded plug with anti-yellowing agent for use with photocell accessory KT-WPLED-PS-UV-KO

• Precision-crafted optical lens provides wide distribution pattern ideal for increased fixture spacing and uniformity

• Covers footprint of mid-size HID wallpacks

• Ambient operating temperature: −40ºC/−40ºF to 50ºC/122ºF

• UL listed for wet locations, IP65

• 0–10V dimming, 10% min

• Power Factor: >0.95

• THD: <20%

• LED chip lifetime: L70 >100,000 hrs @ 25ºC/77ºF ambient fixture temp

• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions

• Fixture impact rating IK08

Specifications

More Information
Part Number	KT-WPLED100-M2-8XX-VDIM
Manufacturer	Keystone Technologies
Watts	100 Watts
Lumens	12500 13000
CRI	>80
Color Temperature	4000 Kelvin, 5000 Kelvin
Input Voltage	120V-277V
Rated Life	100,000 hours +
Minimum Operating Temperature	−40°F
Maximum Operating Temperature	122ºF
Dimensions	Length: 14.36" Width: 9.29"
Certifications	, ,
Warranty	5 Year
UPC Code	843654129099
Lead Time	In Stock - Quick Ship
