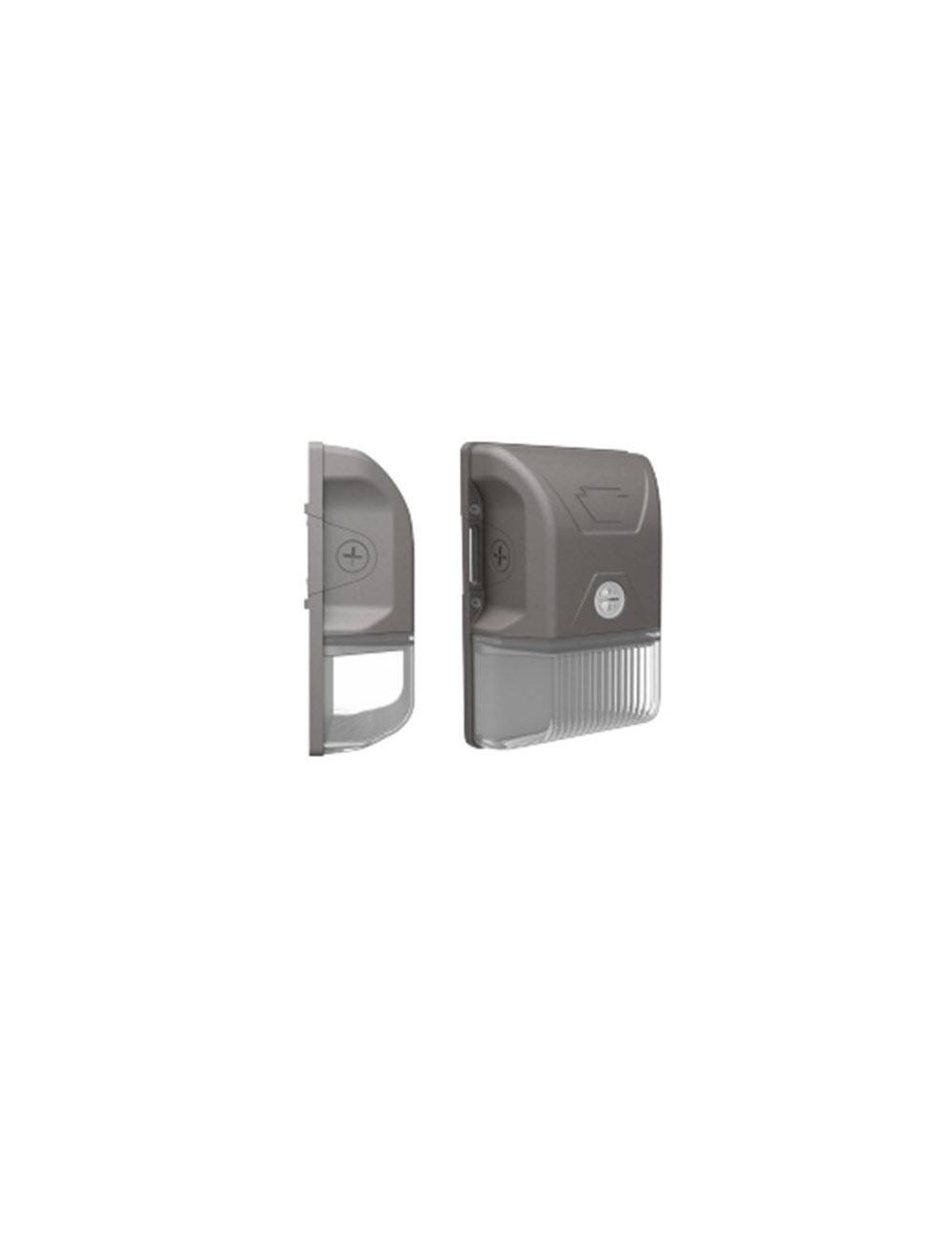

Keystone KT-WPLED20-S1-8XX-VDIM 20W Dimmable XFit Small Non-Cutoff LED Wall Pack

Small 20W Non-Cutoff LED Wall Pack | 120–277V Input | 4000K 5000K | Low Profile Bronze Housing | Impact Resistant Lens

Building Mount for exterior illumination (entryways, pathways, stairwells, security, and other general site lighting requirements)

$59.21

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

KT-WPLED20-S1-8XX-VDIM

Color Temp

4000K

5000K

Qty:

Details

• Small non-cutoff design can be mounted virtually anywhere, offering uniform vertical and horizontal distribution pattern for general safety and security illumination needs

• Heavy-duty die-cast aluminum housing features modern aesthetics and includes (3) available 1/2" threaded conduit hubs, (1) on back and (1) on each side

• Powered by Keystone 0–10V dimming LED drivers

• Built-in dusk-to-dawn photocell behind translucent 1/2” threaded plug with anti-yellowing agent

• ADA Compliant with low-profile housing less than 4” deep

• Impact-resistant and highly diffused polycarbonate lens with anti-yellowing agent offers reduced glare for low mounting height applications

• Ambient operating temperature: −40ºC/−40ºF to 50ºC/122ºF

• UL listed for wet locations, IP65

• 0−10V dimming, 10% min

• Power Factor: >0.95

• THD: <20%

• LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp

• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions

• Fixture impact rating IK07

Specifications

More Information
Part Number	KT-WPLED20-S1-8XX-VDIM
Manufacturer	Keystone Technologies
Watts	20 Watts
Lumens	2500
CRI	>80
Color Temperature	4000 Kelvin, 5000 Kelvin
Input Voltage	120V-277V
Rated Life	100,000 hours +
Minimum Operating Temperature	−40°F
Maximum Operating Temperature	122ºF
Dimensions	Length: 8.61" Diameter: 5.81"
Certifications	, ,
Warranty	5 Year
UPC Code	843654129143
Lead Time	In Stock - Quick Ship
