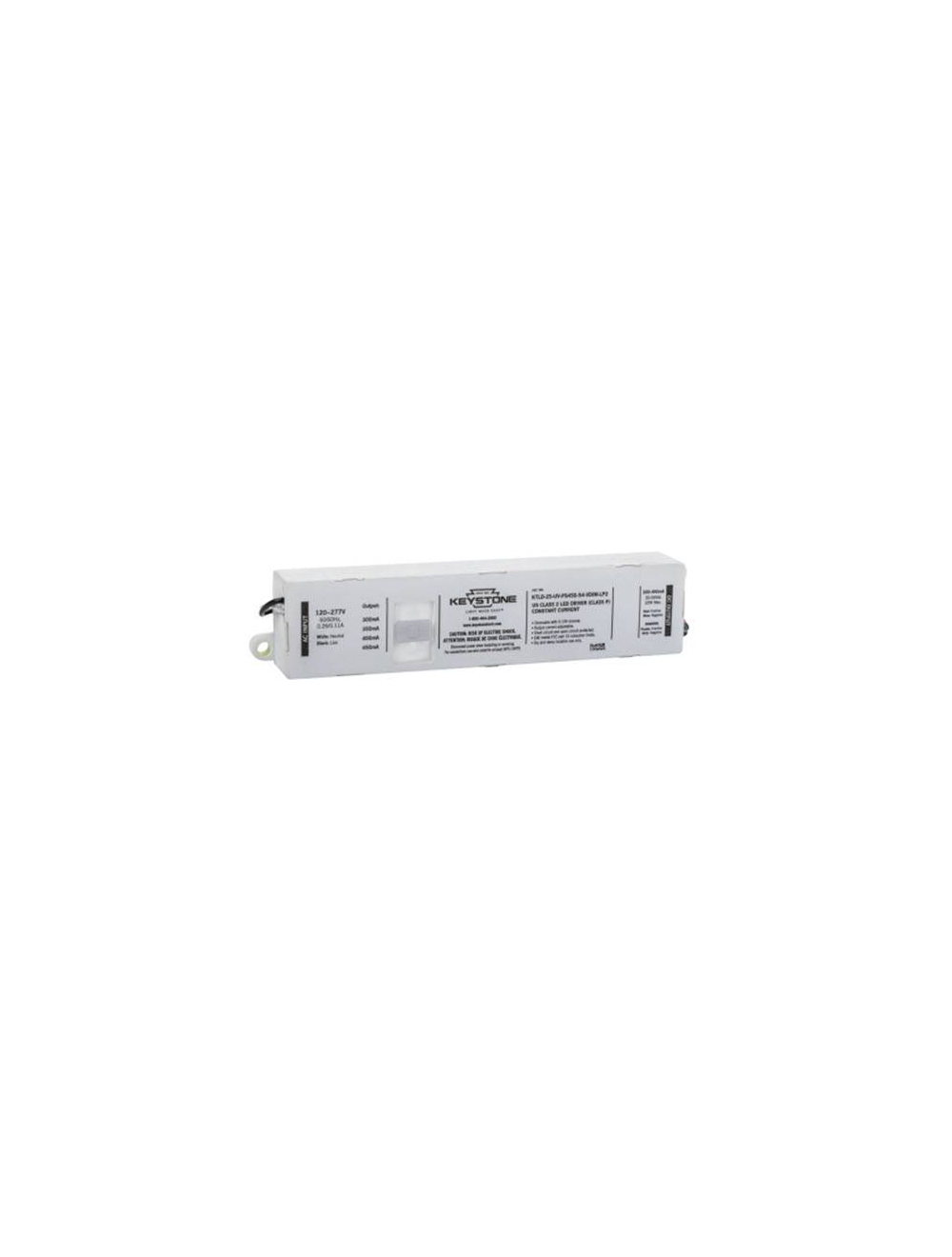

Keystone KTLD-25-UV-PS450-54-VDIM-LP2 25W Dimmable Power Select Constant Current LED Driver

TOTAL POWER: 25W

INPUT VOLTAGE: 120~277Vac ± 10%

INPUT FREQUENCY: 50/60 Hz

OUTPUT CURRENT: 300, 350, 400 or 450mA

DIMMING: 0-10V

WARRANTY: 5 Years

Input Voltage Range 120~277Vac ± 10%

Frequency 50/60 Hz

Power Factor > 0.9 under 120~277Vac input with 80~100% load condition (For All Output Currents)

THD < 20% under 120~277Vac input with 80~100% load condition (For All Output Currents)

Load Regulation ± 2%

Line Regulation ± 2%

Output Tolerance ± 5% at Full Load Condition

Turn-On Delay Time < 0.5s at Full Load Condition

Overshoot < 10% at Full Load Condition

No Load Power Consumption < 1W Ripple & Noise (pk-pk) < 10%

Withstand Voltage Input to output, 2,800Vdc, 2mA

Leakage Current Maximum 0.5mA at 277Vac, 60Hz input

Minimum Dim % ~10% Dimming

Protection • Over Voltage Protection: Hiccup mode. Protection will trigger when load voltage exceeds specified output voltage and will auto recover after the fault mode is removed.

• Over Current Protection: Hiccup mode. Protection will trigger when load current exceeds specified output current and will auto recover after the fault mode is removed.

• Short Circuit Protection: Hiccup mode. Protection will trigger when short circuited and will auto recover after the fault mode is removed.

Operating Temperature -40ºC/-40ºF to 60°C/140ºF

Storage Temperature -40ºC/-40ºF to 85°C/185ºF

Humidity 5% to 95%

MTBF 365,000 hours at 40°C/104ºF ambient (~70°C/158ºF Case temp)

Life Rating 85,000 hours at 120Vac input, 100% load and 60ºC/140ºF case temperature

Maximum Case Temperature 90°/194ºF
