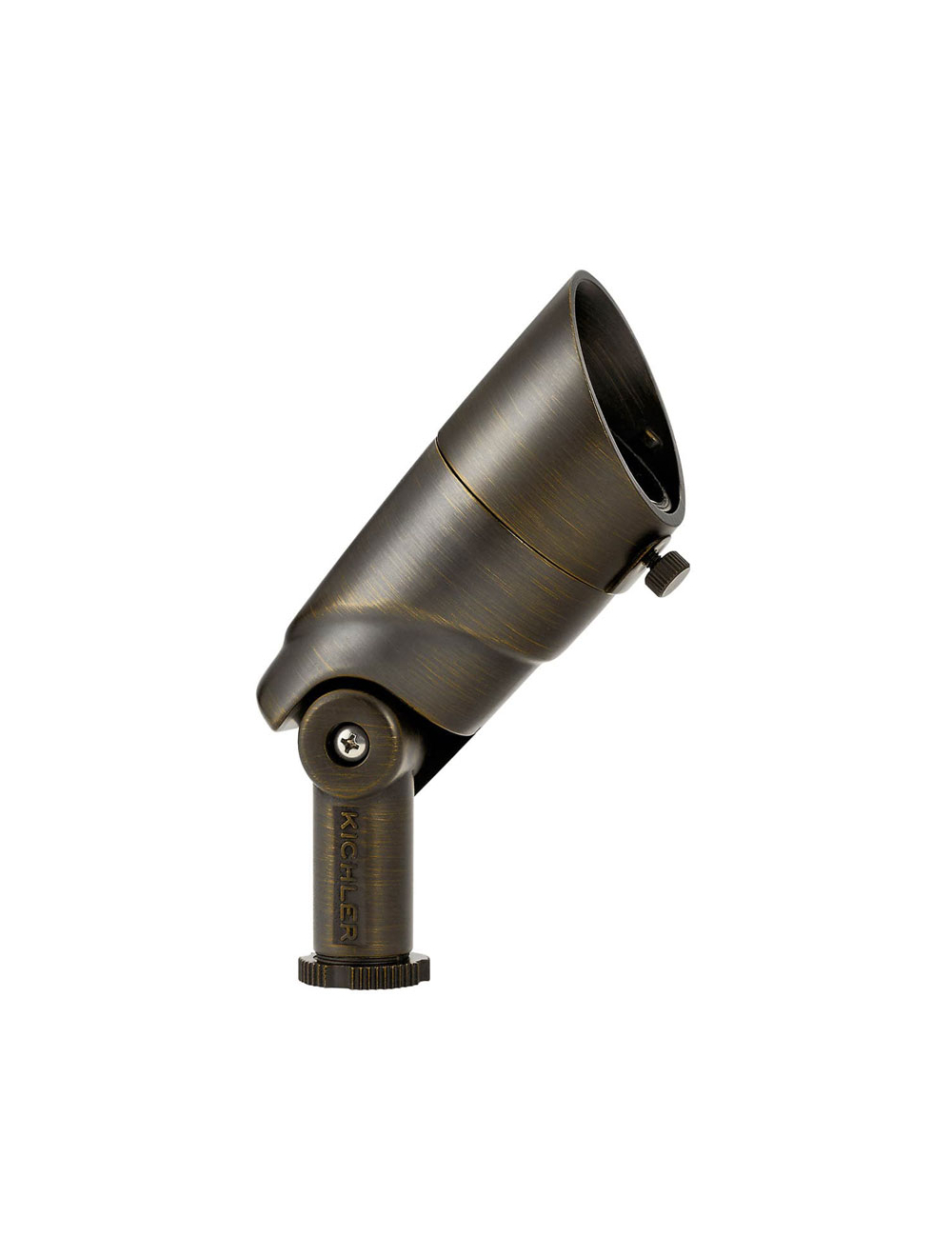

Kichler 16017CBR30 3.75" 1 Light VLO 3000K Small 60 Degree Wide Flood Centennial Brass Finish 5.5 Watts 12 Volt

12V with Variable Lumen Output ( VLO ) that allows you to easily switch between three lumen outputs (100, 200, 300 lumens) without mechanically adjusting the settings on the fixture. The adjustable lumen small accent 60 degree wide flood, 3000K spot light in cast brass (CBR) is an integrated, fully sealed LED fixture that features 6,000 volt surge protection. Featuring custom optics that assures no halos or scallops to deliver superb center-to-edge uniformity for clean, clear light.

Bulb Included.

$244.99

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

16017CBR30

Details

Features
• Variable Lumen Output (VLO) technology allows switching between 100, 200, and 300 lumens without mechanical adjustment
• Custom optical system ensures uniform light distribution with no halos or scallops
• Fully sealed integrated LED design for long-lasting outdoor durability
• Energy-efficient low-voltage operation
• Durable cast brass construction ideal for coastal or harsh outdoor environments

Specifications
• Brand: Kichler Lighting
• Model Number: 16017CBR30
• Product Type: Landscape LED Accent / Flood Light
• Collection: Landscape LED
• Style: Utilitarian / Transitional
• Finish: Centennial Brass (CBR)
• Material: Cast Brass
• Installation Type: Ground / Surface Mount (Landscape)
• Location Rating: Wet Rated (suitable for outdoor use)

Dimensions
• Size: 2" W x 3.75" H x 4.5" L
• Weight: 1.80 lbs.

Lighting Specifications
• Light Source: Integrated LED
• Number of Lights: 1
• Color Temperature: 3000K (Warm White)
• Beam Spread: 60° Wide Flood
• Lumens Output: Selectable (100 / 200 / 300 lumens via VLO)
• Color Rendering Index (CRI): 80
• Rated Life: 40,000 hours

Electrical Specifications
• Wattage: 5.5 Watts
• Voltage: 12V (operating range approx. 9–15V)
• Dimmable: No
• Surge Protection: 6,000V built-in

Additional Details
• Glass: Tempered lens
• Safety Certification: ETL Listed for wet locations
• Included Accessories: Ground stake, gel-filled wire connectors, magnetic key for lumen adjustment, lead wire
• Warranty: Limited manufacturer warranty (typically 15 years

Specifications

More Information
Part Number	16017CBR30
Manufacturer	Kichler
Watts	5 Watts
Lumens	300
Lumens Per Watt	55
UPC Code	783927534581
CRI	80
Color Temperature	3000 Kelvin
Beam Angle	60°
Input Voltage	12V
Rated Life	40,000 hours +
Dimmable	No
Dimensions	2" W x 3.75" H x 4.5" L
Warranty	15 Year
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
