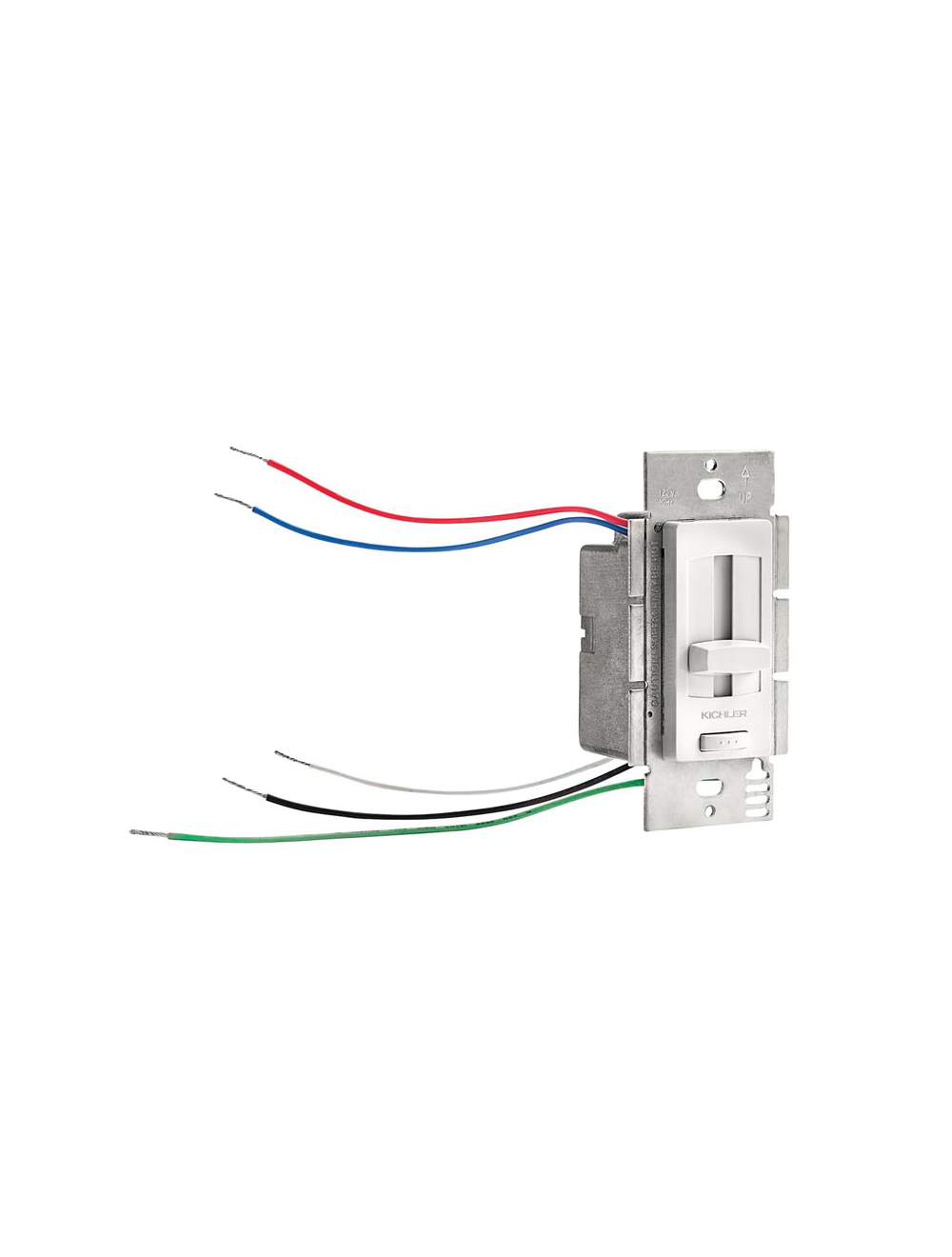

Kichler 6DD24V100WH 6DD Series 24V LED Driver + Dimmer White Finish 100 Watts

Features:
• 2-in-1 Driver + Dimmer: Combines power supply and dimmer into one compact unit for simplified installation and reduced components.
• Smooth Dimming Performance: Offers wide dimming range from 100% to 1% for precise lighting control.
• Compact Space-Saving Design: Small form factor fits neatly into a standard single-gang wall box.
• Reliable Power Conversion: Efficiently converts 120V AC to 24V DC for low-voltage LED systems.
• Ideal for Under Cabinet Lighting: Specifically engineered for Kichler LED tape and hard strip applications.
• Easy Installation: Simple wiring for both high-voltage input and low-voltage output connections.
• Integrated On/Off Control: Built-in push switch eliminates the need for a separate wall dimmer.

Specification:
• Model: 6DD24V0100WH
• Series: 6DD Series
• Product Type: LED Driver + Dimmer (Integrated)
• Finish: White (Non-painted)
• Material: Aluminum

Dimensions:
• Height: 4 in.
• Width: 2 in.
• Length (Depth): 2 in.
• Weight: Approx. 0.45 lbs

Electrical:
• Input Voltage: 120V AC
• Output Voltage: 24V DC
• Wattage: 100 Watts
• Frequency: 60 Hz
• Dimming Range: 100% down to 1%

Performance:
• Driver Type: Constant Voltage LED Driver
• Dimmable: Yes (integrated dimmer)
• Control Type: Built-in push on/off dimmer switch

Ratings & Certifications:
• Location Rating: Dry Rated
• Safety Listing: cULus Listed

Compatibility:
• Designed for Kichler 24V LED Tape Lights and Hard Strip Lighting systems

Installation:
• Mounting Type: Fits standard single-gang wall box
• Connection: Hardwired (line voltage input and low voltage output)
