Features

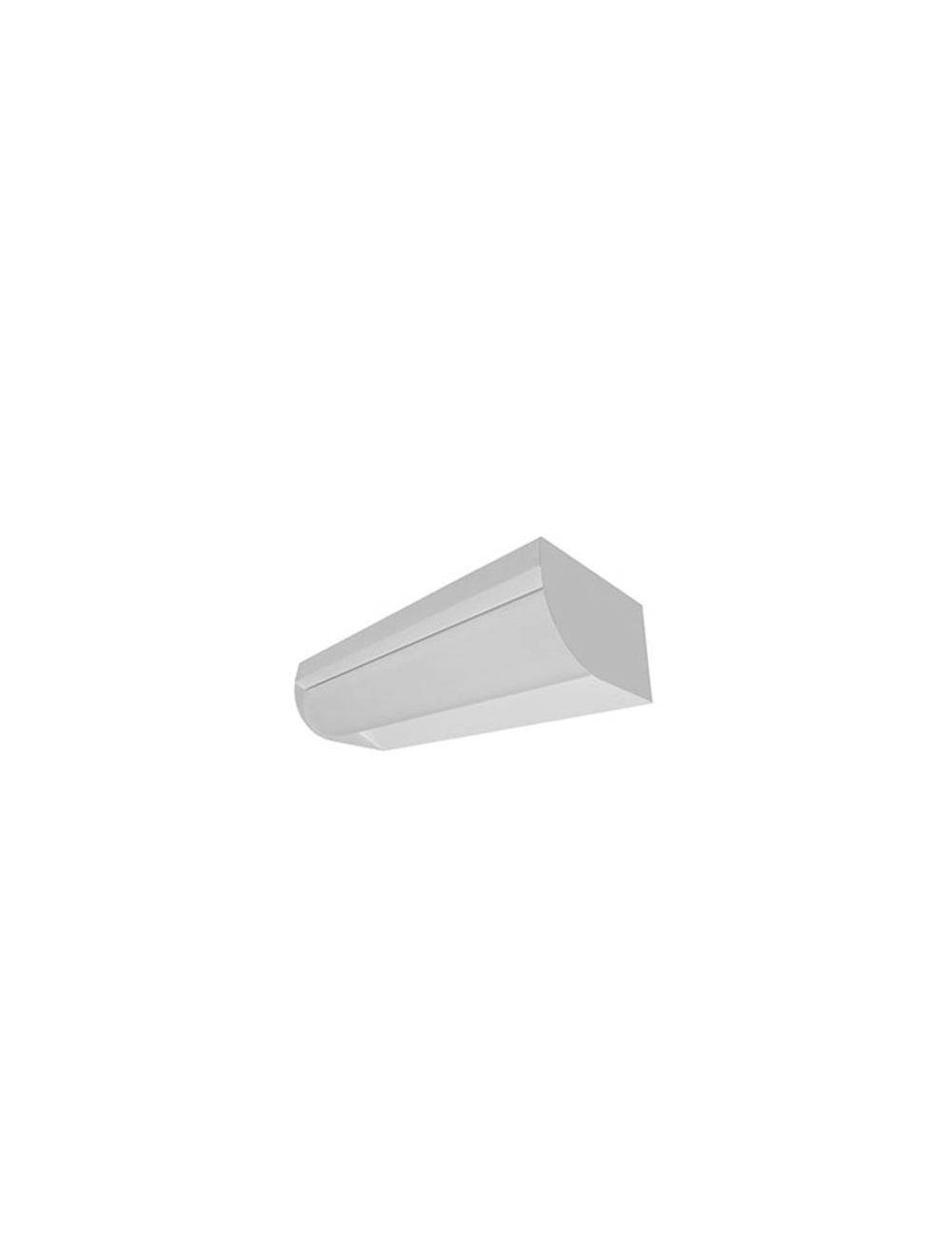

• Wall / ceiling mounted LED luminaire
• Provides front light and down light
• 0-10V dimming driver standard (other dimming types available)
• Controls and sensors available
• Wireless control options (Lutron, EnOcean, ZigBee, etc.)
• Supports California Title 24 compliance
• Suitable for damp locations
• Additional lumen packages and color temperatures available
• Full customization available upon request
Features
• Wall / ceiling mounted LED luminaire
• Provides front light and down light
• 0-10V dimming driver standard (other dimming types available)
• Controls and sensors available
• Wireless control options (Lutron, EnOcean, ZigBee, etc.)
• Supports California Title 24 compliance
• Suitable for damp locations
• Additional lumen packages and color temperatures available
• Full customization available upon request
Construction
• 22 ga. cold rolled steel welded housing
• Switch available
• 45-degree mounting bracket available
Optical
• Frosted smooth acrylic lens (snap-in lens)
• Lens retainer and tamper proof screws available
Electrical
• High efficiency drivers coupled with long-life LEDs
• Service life greater than 50,000 hours (L70)
• Universal voltage 120V through 277V (347V / 480V available)
• Emergency battery pack available finish
• Baked white powder coated
Finish
• Minimum reflectance 90%
• Painted after fabrication
• Custom colors available
| Part Number | BAC200 |
|---|---|
| Manufacturer | LA Lighting |
| Watts | 9 Watts |
| Lumens | 1088 |
| Lumens Per Watt | 123.6 |
| CRI | 840 |
| Color Temperature | 3500 Kelvin |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| Rated Life | 50,000 hours + |
| Minimum Operating Temperature | -4° F |
| Maximum Operating Temperature | 120° F |
| Certifications | ![]() ![]() ![]() ![]() ![]() ![]() |
| Warranty | 5 Year |
| Specification Sheet | Upon Request |
| Lead Time | Build Item 7-10 Days |
