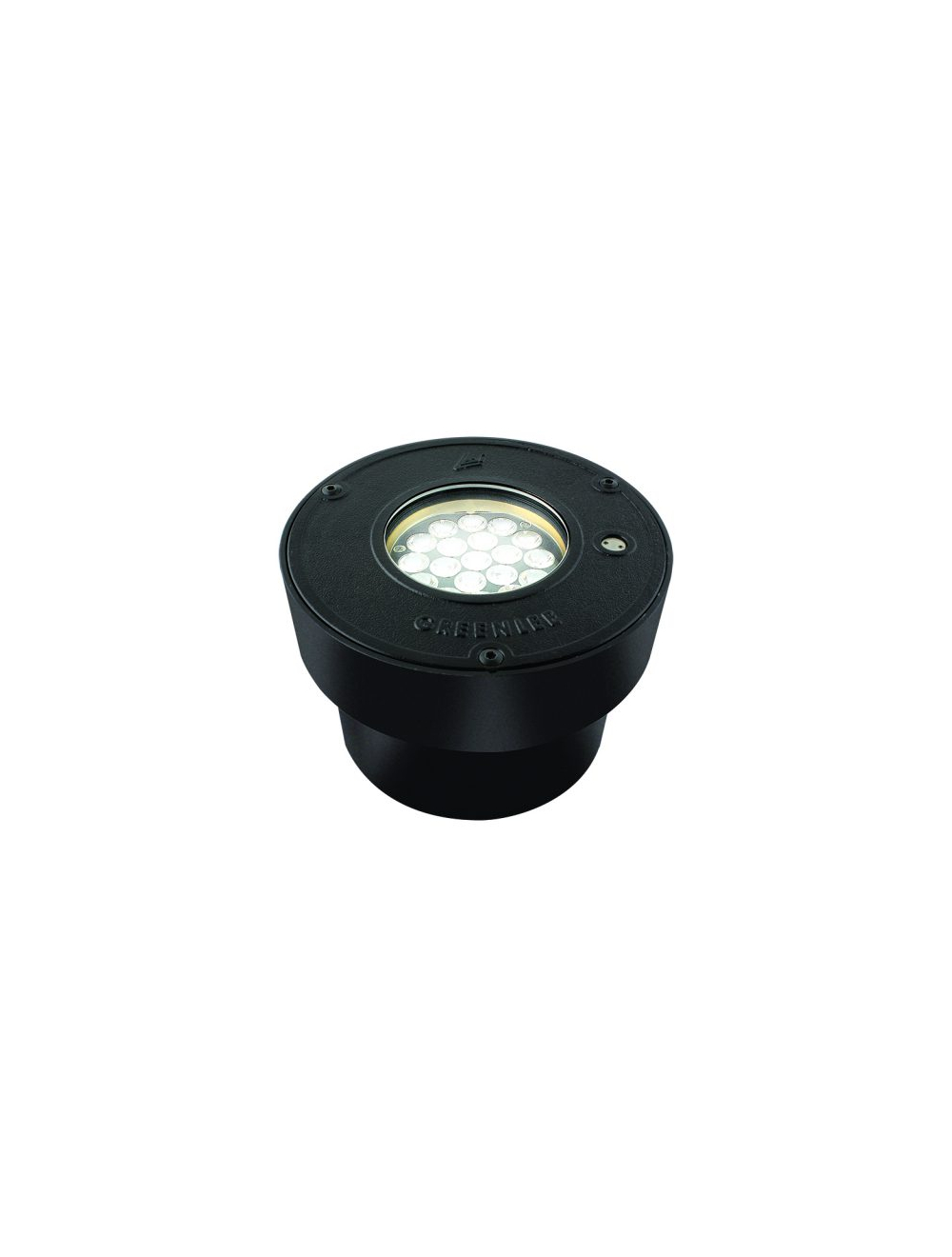

LSI XIG Series 9.5" LED In-Ground Light 19 Watts 120-277 Volt
The LSI XIG in-grade fixture is designed to provide uplighting for architectural and landscape features. The XIG delivers exceptional lighting performance with optimized beam control and external aiming adjustability. Its modular design ensures easy installation and its compact size is compatible with shallow site requirements.
• Precision 2pc die-cast aluminum head maintains durability and consistency while providing vandal resistance, effective heat dissipation, and superior aesthetics.
• 8-5/8” OD one-piece extruded aluminum heavy wall .322 inch thick seamless shaft. Various heights are available in 6” increments starting at a minimum of 26” (maximum height is 62”).
• Lower housing attaches to cast aluminum universal base plate with four stainless steel roll pins. Accommodates 4.5” - 6” bolt circles.
• Optional roughneck zinc plated steel base plate (.375” thick) with welded U shaped reinforcement. 3/8” diameter 302 stainless steel roll pins with 10,000 lb. shear load.
• IP66 rated Optical and Driver compartment protects integral components from harsh environments.
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
• Luminaire is proudly manufactured in the U.S. of U.S. and imported parts.
| Part Number | XIG |
|---|---|
| Manufacturer | LSI |
| Watts | 19 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 70 |
| Color Temperature | 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Beam Angle | Variable |
| Input Voltage | 120V-277V |
| Dimmable | No |
| Minimum Operating Temperature | -40℉ |
| Maximum Operating Temperature | 122℉ |
| Dimensions | 9.5" x 2.5" |
| Lead Time | Build Item 3-4 Weeks |
