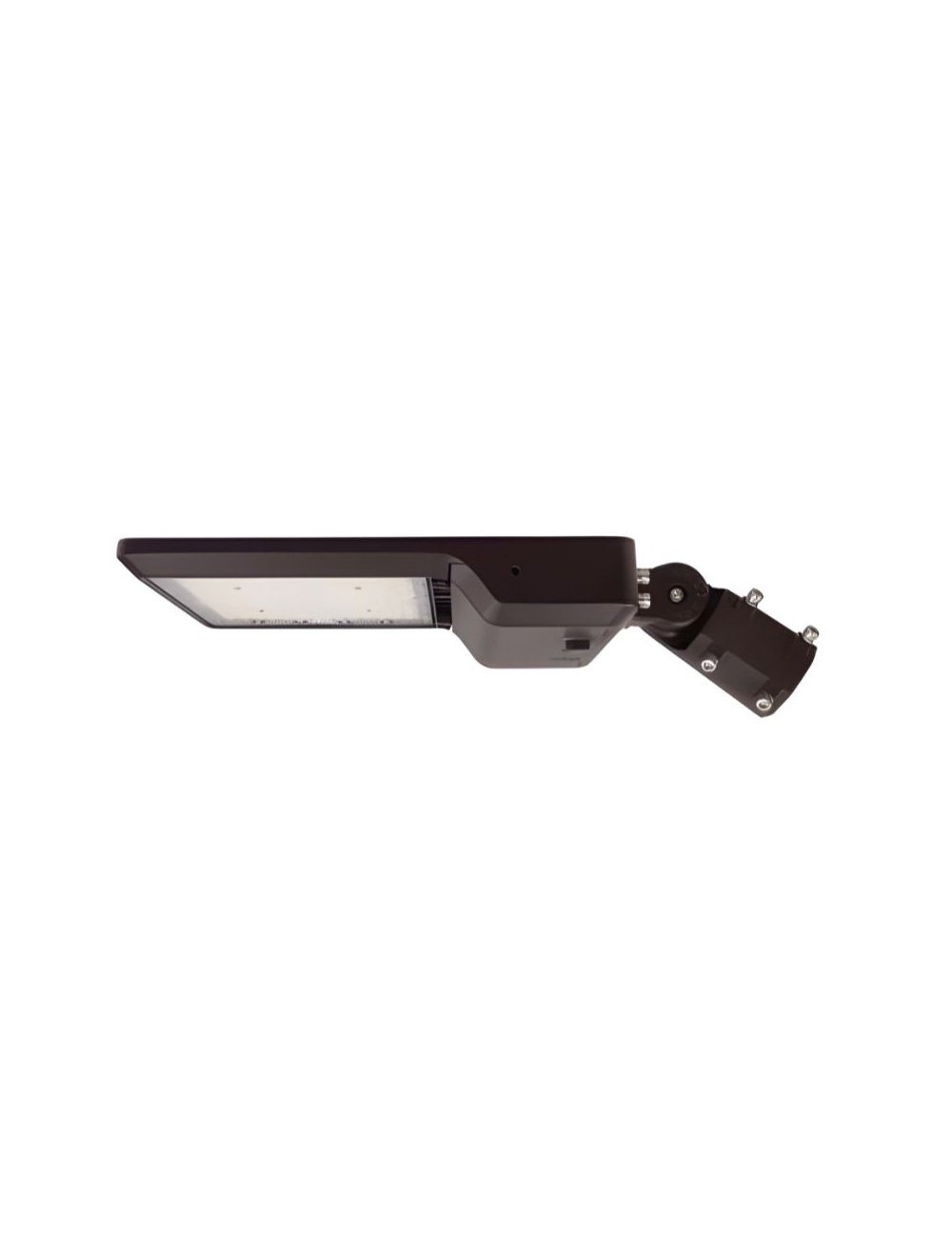

The Slim AE Area Fixture delivers high efficacy in a lightweight design that can be effortlessly installed on new and retrofit outdoor projects.
Available in 6 wattage/lumen packages ranging from 80W-450W/10,000 - 63,000 lumens, this family covers virtually every pole-mounted need. It also offers tremendous versatility with CCT/wattage selectability and field installable c-Max control capability standard. Additionally, you have choices between 3 lenses, 2 mountings, and 480V. All of this is delivered with a 10-year warranty and a competitive price, bringing you maximum value for your area project.
Features
• Controls Ready with the ability to field install a variety of c-Max controls, along with upgrades in the future
• CCT selectable between 3000/4000/5000K (450W is dedicated CCT)
• Wattage selectable on most versions
• Universal 120-277V standard, high voltage 277-480V option
• 10kA surge protection included in addition to driver surge protection, option for higher 20kA protection
• ANSI 3G vibration rated
• TAA compliance available - contact Maxlite for details
• Available in two mountings - Flexible Arm or Slipfitter
• Arm fits both square and round poles
Warranty
• 10-year standard
| Part Number | AE300UT5-WCSBKCR |
|---|---|
| Manufacturer | Maxlite |
| Watts | 200 Watts, 240 Watts, 300 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 80+ |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Beam Angle | Type 5 |
| Dimmable | Yes |
| Input Voltage | 120V-277V |
| Rated Life | 100,000 hours + |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 104°F |
| Dimensions | 25.67" x 13.07" x 3.31" |
| Warranty | 10 Year |
| Certifications | ![]() |
| Lead Time | In Stock - Quick Ship |
