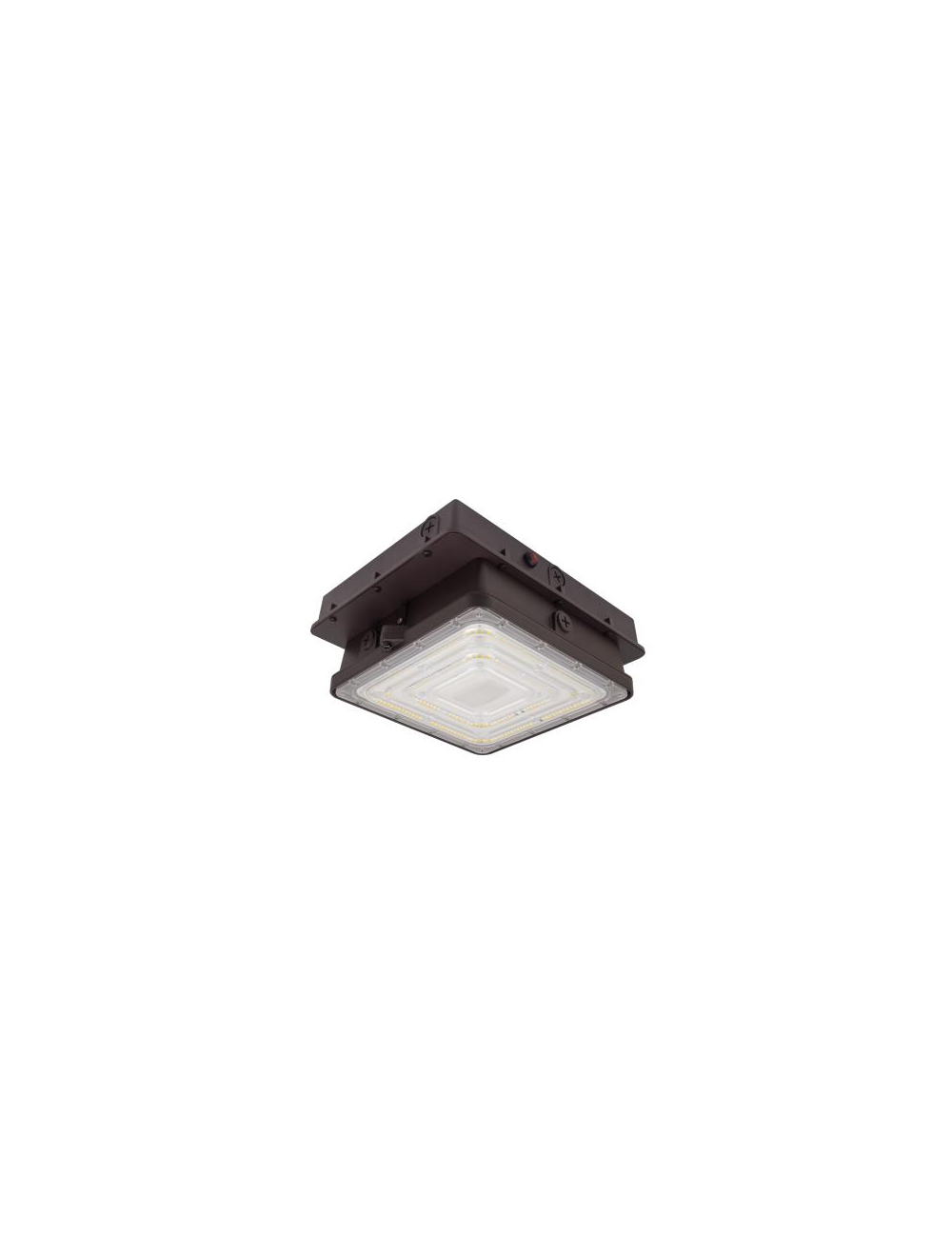

Maxlite CPL52UCSBCREM2 Enhanced Canopy, 52W, 120-277V, Cct Select 3/4/5K, Bronze, C-Max Ready, Battery Backup -20C

Quick to install and pay for itself, the Enhanced Canopy/Parking Garage fixture is an economical retrofit solution for 70-250W HID garage and canopy luminaires. Offered in five wattages, CCT and wattage selectable, with a single lens that covers up to 4 DLC distribution categories, the CPL can address a variety of canopy/parking garage lighting needs. The series comes standard with an internal c-Max control receptacle which allows for a variety of c-Max controls to be field installed (sold separately). The luminaire also features a single screw design that allows access to the fixture interior within seconds for quick and easy surface conduit connections or c-Max controls installation. In addition, factory installed battery backup, 480V and White finish options are available. For Canopy/Parking Garage applications, this family makes it easy!
$402.99
Lead Time
In Stock - Quick Ship
Return Policy
30 Days Terms
SKU
CPL52UCSBCREM2

•c-Max compatible allowing a variety of field installed c-Max controls
•Third party network controls available (factory installed)
•Quick and easy access to interior with single screw and hinge design for conduit connection and controls installation
•CCT selectable between 3000/4000/5000K (5K default)
•Single lens covers up to 4 different DLC categories
•Wattage selectable on 60W version
•Shorter height for more vehicle clearance (2.67”/67.6mm)
•18” leads standard for easier pendant mounting
•Universal 120-277V standard, High Voltage 277-480V option
•4kV + 10kA surge protection standard, option for higher 20kA protection (40W+ versions)
•TAA compliance available - contact Maxlite for details

More Information
Part Number CPL52UCSBCREM2
Manufacturer Maxlite
Watts 52 Watts
Lumens 6844
Lumens Per Watt 137
CRI ≥80
Color Temperature 5000 Kelvin
Input Voltage 120V-277V
Rated Life 174,000 hours
Minimum Operating Temperature -40°C
Maximum Operating Temperature 40°C
Dimensions 12.40" x 9.84" x 4.7
Certifications , ,
Warranty 10 Year
UPC Code 767627047541
Lead Time In Stock - Quick Ship
