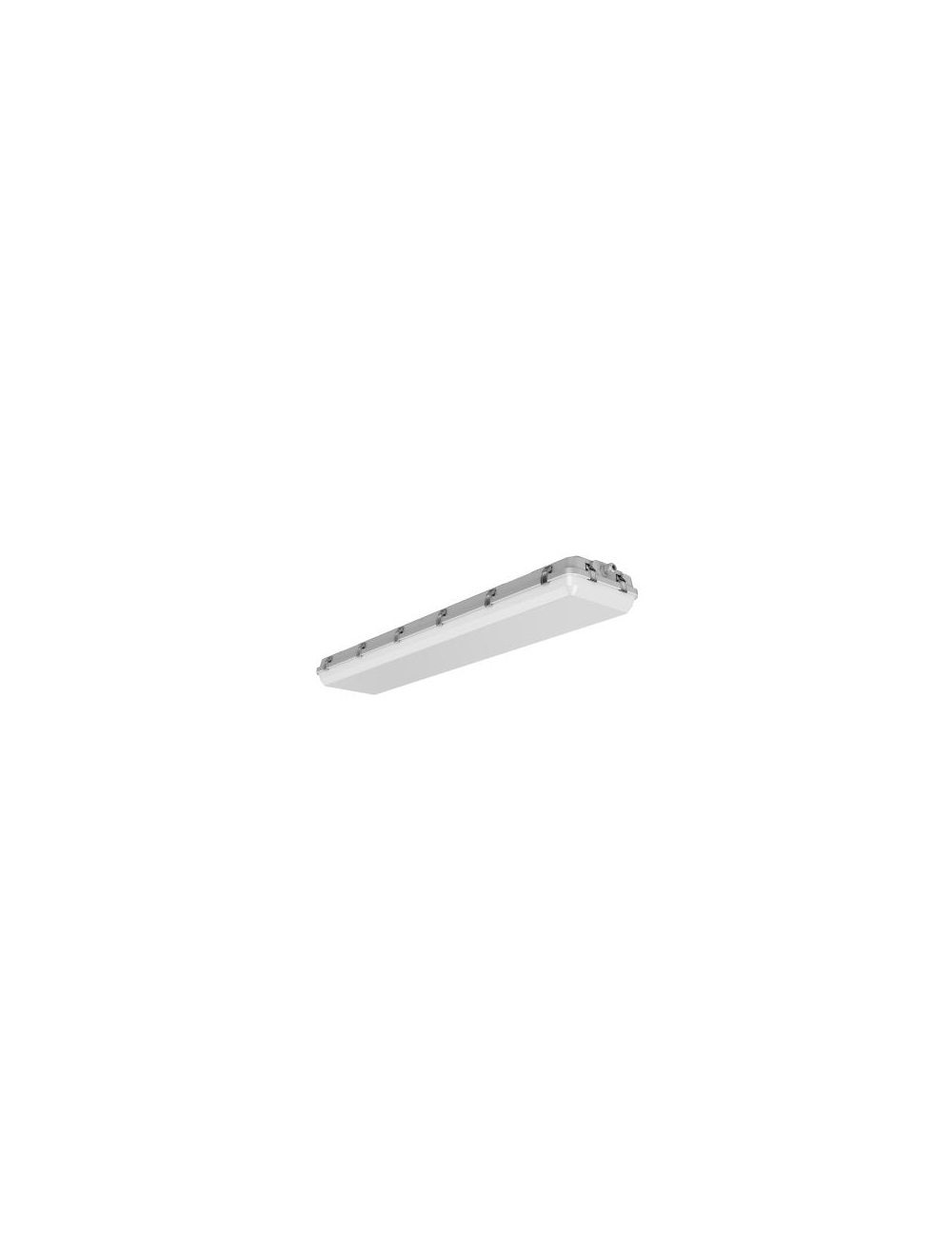

Maxlite LSVW-4U060WCS Wide Body Vapor Tight 4FT - 60W/80W/100W, 120-277V, 3500K/4000K/5000K, White, 113341

Wide Body Vapor Tight fixture with selectable wattage and CCT, sealed IP66 construction, IK10 protection, C-Max compatibility, and ideal performance for harsh commercial and industrial environments.

$214.29

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

LSVW-4U060WCS

Details

Introducing Maxlite’s LSVW Series Vapor Tight High Bay - a high-performance luminaire built for demanding environments. Its robust, sealed construction ensures reliable operation against moisture, dust, and impact, and it carries top certifications including DLC Premium, NSF, IP66, and IK10 for proven quality and durability. The LSVW Series combines efficiency up to 170 lm/W with lumen outputs from 10,000 to 27,000, along with fieldselectable CCT and wattage, multiple mounting options, and an operating range of –40°C to 50°C to meet diverse application needs. With its rugged design, strong performance, versatility and compatibility with c-Max controls, the LSVW Series is the ideal solution for high-bay installations in harsh or demanding environments.

Specifications

More Information
Part Number	LSVW-4U060WCS
Manufacturer	Maxlite
Watts	60 Watts, 80 Watts, 100 Watts
Lumens	10560/ 13840/ 17000
CRI	≥80
Color Temperature	3500 Kelvin, 4000 Kelvin, 5000 Kelvin
Input Voltage	120V-277V
Dimmable	No
IP_Rating	IP66
Rated Life	50,000 hours +
Minimum Operating Temperature	-40°F
Maximum Operating Temperature	122°F
Dimensions	4FT
Length	47.50
Width	10.50
Height	4.35
Certifications	,
Warranty	10 Year
Lead Time	In Stock - Quick Ship
