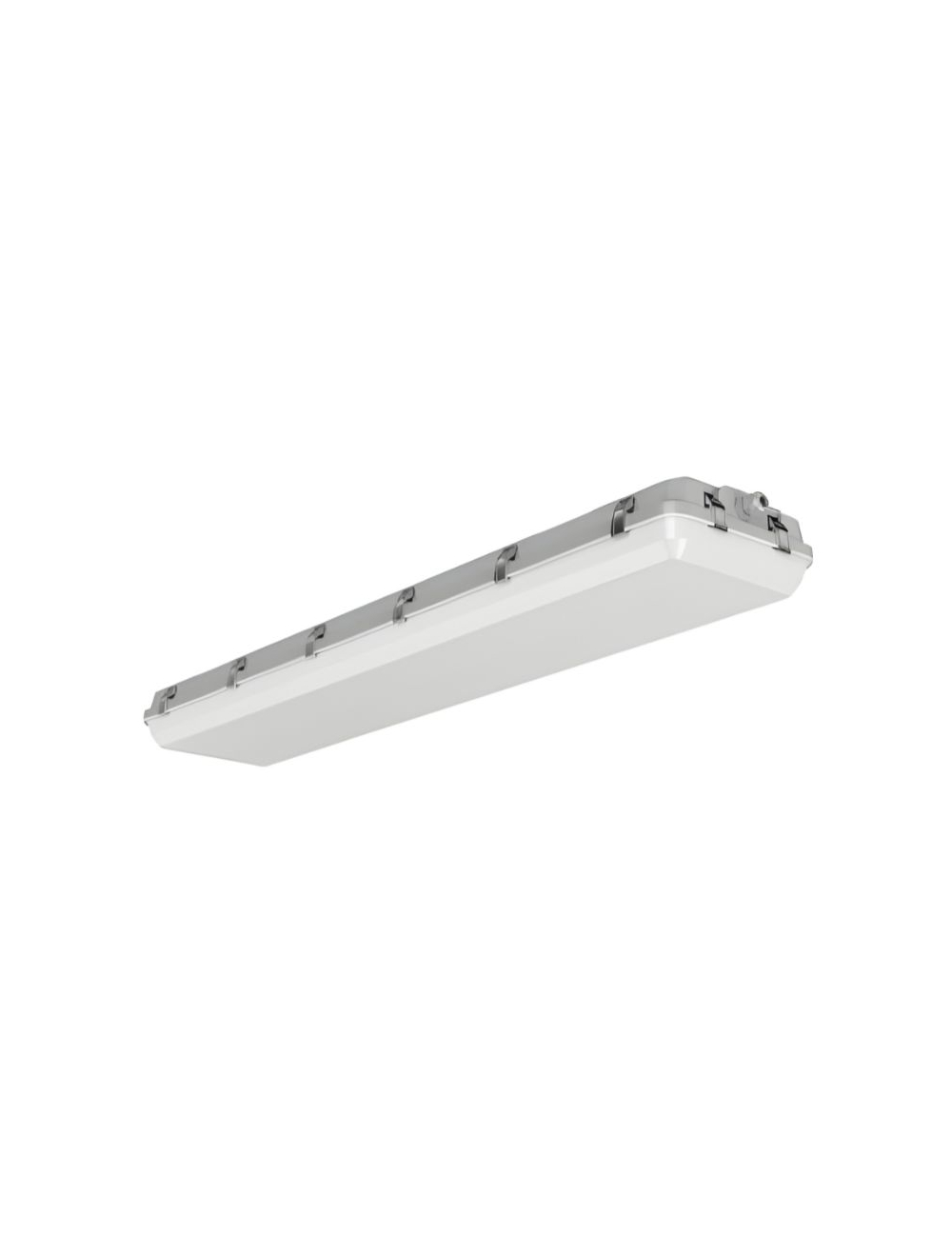

Introducing Maxlite's LSVW Series Vapor Tight High Bay — a high-performance luminaire built for demanding environments.
Its robust, sealed construction ensures reliable operation against moisture, dust, and impact, and it carries top certifications including DLC Premium, NSF, IP66, and IK10 for proven quality and durability. The LSVW Series combines efficiency up to 170 lm/W with lumen outputs from 10,000 to 27,000, along with field-selectable CCT and wattage, multiple mounting options, and an operating range of –40°C to 50°C to meet diverse application needs. With its rugged design, strong performance, versatility, and compatibility with c-Max controls, the LSVW Series is the ideal solution for high-bay installations in harsh or demanding environments.
Features:
• Sealed construction with IP66 and IK10 ratings
• Polycarbonate housing and lens with stainless steel clips
• DLC premium with industry-leading 170 LPW
• 3 Field selectable Wattage options with 2 wattage sets
– 60-80-100W
– 120-140-160W
• 3 Field selectable CCTs 3500-4000-5000K
• 0-10V dimmable down to 10%
• C-Max compatibility with 12V Aux supply
• Harsh Environments from -40°F to 122°F (–40°C to 50°C)
• Multiple mounting options included.
– V-Hook, Surface mount, and Pipe mount brackets
• Conforms to the requirements of NSF/ ANSI 2 - Food Equipment (NSF available only on non-TAA models)
Controls Features:
• Multifunction and Energy Monitoring
• Daylight Sensor
• Occupancy Sensor
• High-End Trim
• Bluetooth
• Luminaire Level Lighting Control (LLLC)
| Part Number | LSVW-4U120WCSEM |
|---|---|
| Manufacturer | Maxlite |
| Watts | 120 Watts, 140 Watts, 160 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 80+ |
| Color Temperature | 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| IP_Rating | IP66 |
| Rated Life | 50,000 hours + |
| Minimum Operating Temperature | 41°F |
| Maximum Operating Temperature | 122°F |
| Dimensions | 47.5" x 10.5" x 4.35" |
| Length | 47.5 |
| Width | 10.5 |
| Height | 4.35 |
| Certifications | ![]() ![]() ![]() ![]() |
| Warranty | 10 Year |
| Lead Time | In Stock - Quick Ship |
