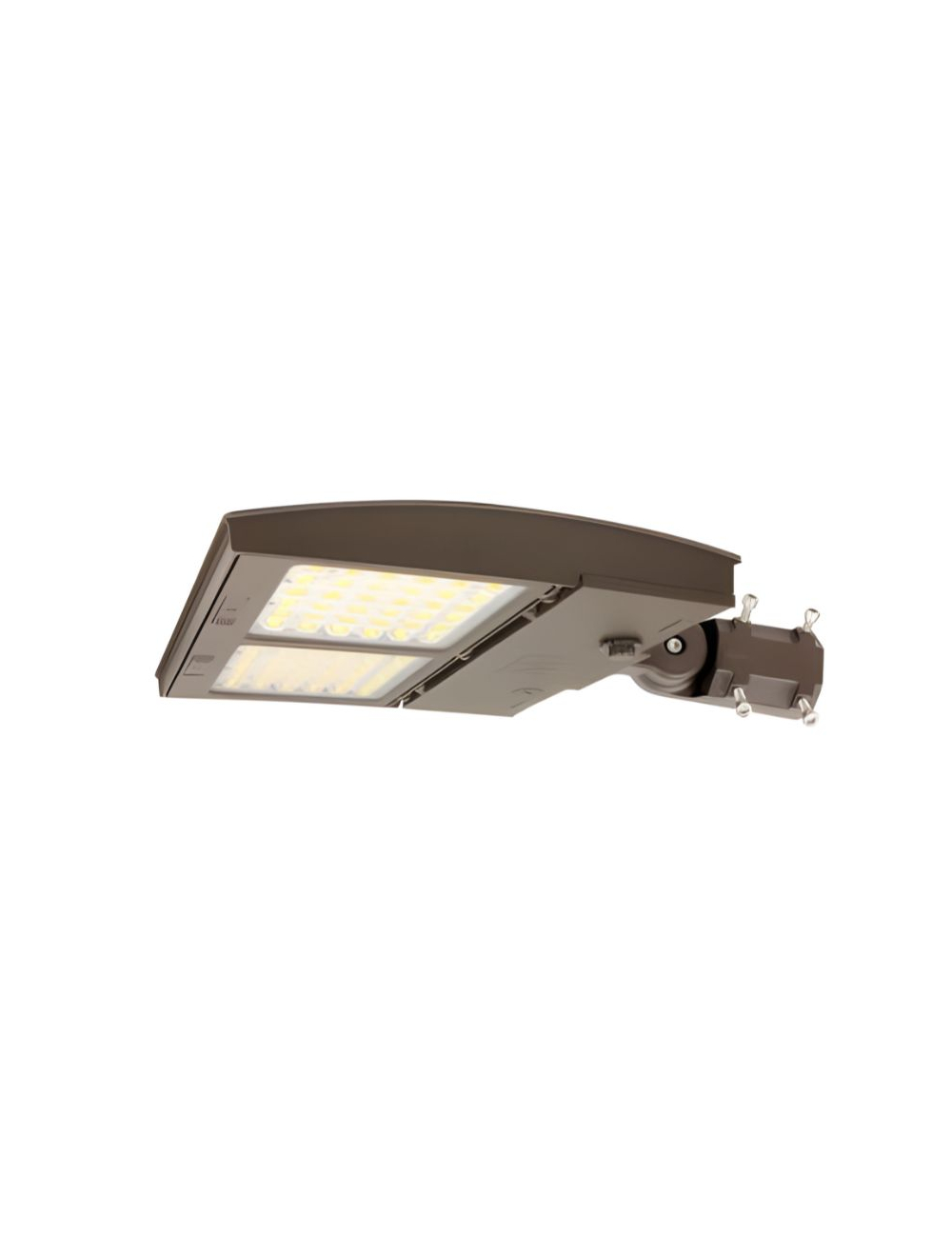

Maxlite M100HCW-WCSBKCR M Series Area Light 55/75/100 Watt Type 5 Low Glare 3CCT Selectable 277-480 Volt Slipfitter Mount Bronze Finish 113245

A singular housing thrives as either an Area, Flood, or Wall fixture, depending on the optics and mounting selected. Besides being CCT and Wattage selectable, it also offers changeable lenses, enabling the customer to choose from 7 different distribution patterns. The optics offer improved back light and perimeter control as well as uniformity. These lenses are also rotatable, allowing for customized orientation for your lighting application. It also includes a c-Max control port, opening up the entire c-Max portfolio from Basic to more sophisticated network control systems. Tool-less entry into the driver compartment makes maintenance easy. All of this comes with superior surge protection and a 10-year warranty. M Series offers design continuity and performance at a budget price point.

Features
• Full Outdoor portfolio offering design continuity with Area, Flood, and Wall applications
• Extensive wattage/lumen range
  – 15W to 300 Watts and 1,800- 40,000+ lumens
• Wattage Selectable & CCT Selectable between 3000/4000/5000K
• Superior photometrics with better backlight control and uniformity
• 7 changeable lenses fully rotatable at 90 degrees
• 6 different mounting options for wall, pole, ground, or slipfitter applications
• Tool-less driver compartment access
• Integrated networked lighting control, c-Max Bluetooth Lighting Control
  – Integral sensor receptacle
  – Occupancy sensor
  – Photocell
  – High-end trim
  – Energy monitoring
• 120-277V standard with 277-480V factory installed option
• Robust surge protection - 6kV + 10kA standard, 20kA option
• ANSI 3G vibration rated
• TAA available - contact Maxlite

Installation
• 6 field changeable mountings available –Straight Arm, Flexible Arm, Knuckle Slipfitter, Trunnion, Variable (adjustable) Wall, and Fixed Wall
• Mounting arms fit both square and round poles

Construction
• Die-cast aluminum housing with corrosion-resistant polyester powder coat finish
• UV stabilized polycarbonate lens

Application
• Area - 6 optics:
  Type 3 Medium, Type 4 Narrow, Type 4 Wide, Type 5 Square, Types 3 & 5 Low Glare
• Flood - 3 optics:
  Narrow 4x4, Concentrated Wide 6x6, and Soft Wide 6x7
• Wall - 4 optics:
  Type 3 Medium and Low Glare, Type 4 Narrow and Wide
