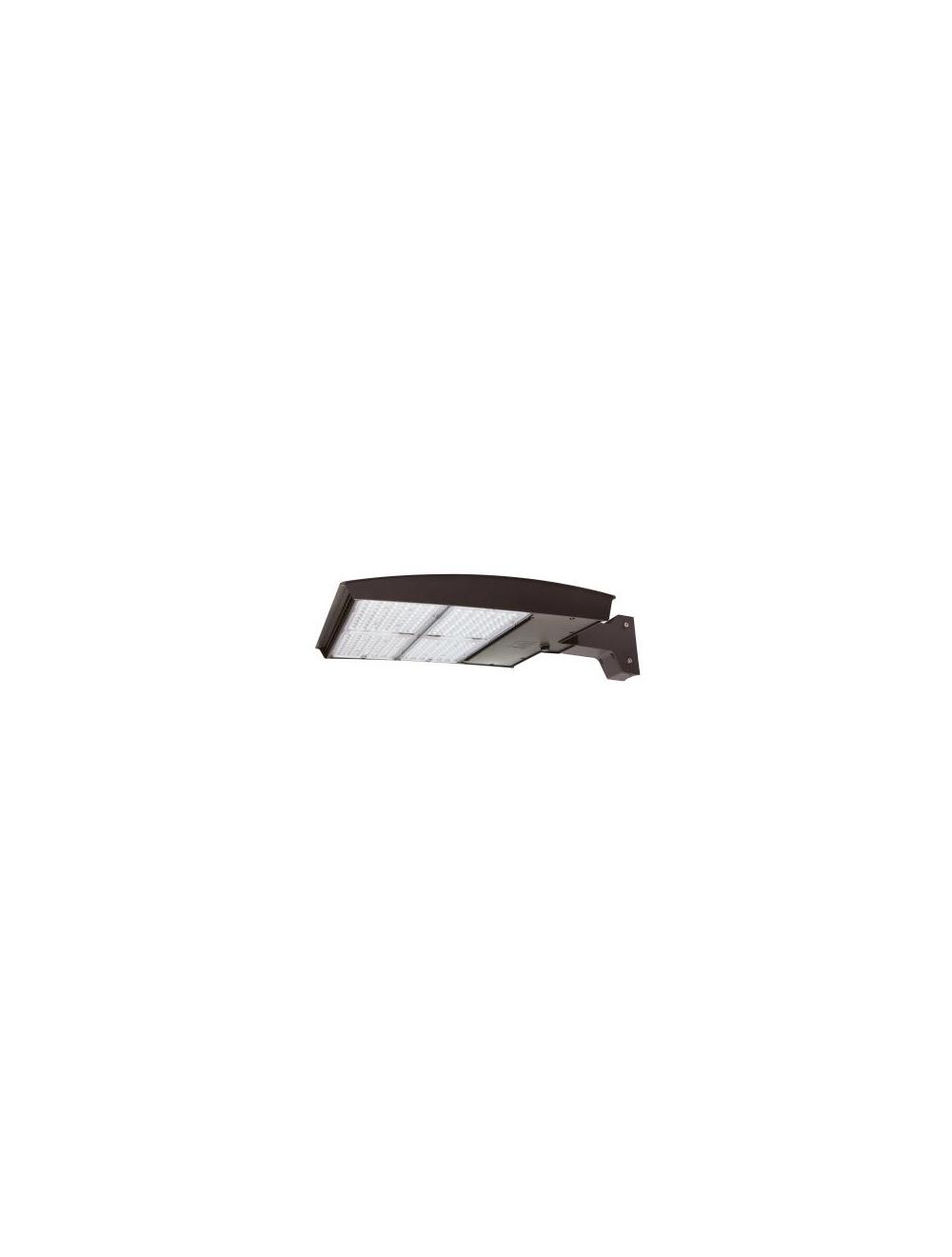

Maxlite M320U3M-CSBACR M Series 320W, 120-277V, Type 3M, Cct Select 3/4/5K, Bronze, Arm, C-Max Compatible

The M Series product family provides a slim, clean design with tremendous versatility for outdoor lighting applications. A singular housing thrives as either an Area, Flood or Wall fixture depending on the optics and mounting selected. The standard product is CCT selectable, enabling the customer to choose from 3 color temperatures in a single product. It also includes a controls ready receptacle that allows the customer to add either basic controls, such as an on/off photocell or motion sensor, or network control nodes for grouping and more sophisticated control functions. Beyond the standard features, additional options and accessories include high voltage (277-480V), battery backup, visual comfort lens, back light shield and visors. The M Series family provides a comprehensive site design solution for your outdoor lighting needs.
$306.17
Lead Time
In Stock - Quick Ship
Return Policy
30 Days Terms
SKU
M320U3M-CSBACR

•Covers 3 applications - Area, Flood and Wall
•4 sizes, 9 wattages – 40/55W, 75/100W, 125/150W and 200/250/320W
•Multiple mounting options for wall, area and flood applications
•Comprehensive range of optic choices for area, flood and wall design requirements
•HV – 277-480V option
•CCT Selection – 3000/4000/5000K
•Compatible with field installable c-Max controls
•Avi-On controls compatible (factory installed)
•TAA Compliant

More Information
Part Number M320U3M-CSBACR
Manufacturer Maxlite
Watts 320 Watts
Lumens 44028
CRI ≥70
Color Temperature 3000 Kelvin, 4000 Kelvin, 5000 Kelvin
Beam Angle Type 3
Input Voltage 120V-277V
Rated Life 174,000 hours
Minimum Operating Temperature -40°C
Maximum Operating Temperature 40°C
Dimensions 17.8"x3.19"x21.6"
IP_Rating IP66
Certifications , ,
Warranty 10 Year
Lead Time In Stock - Quick Ship
UPC Code 767627016059
