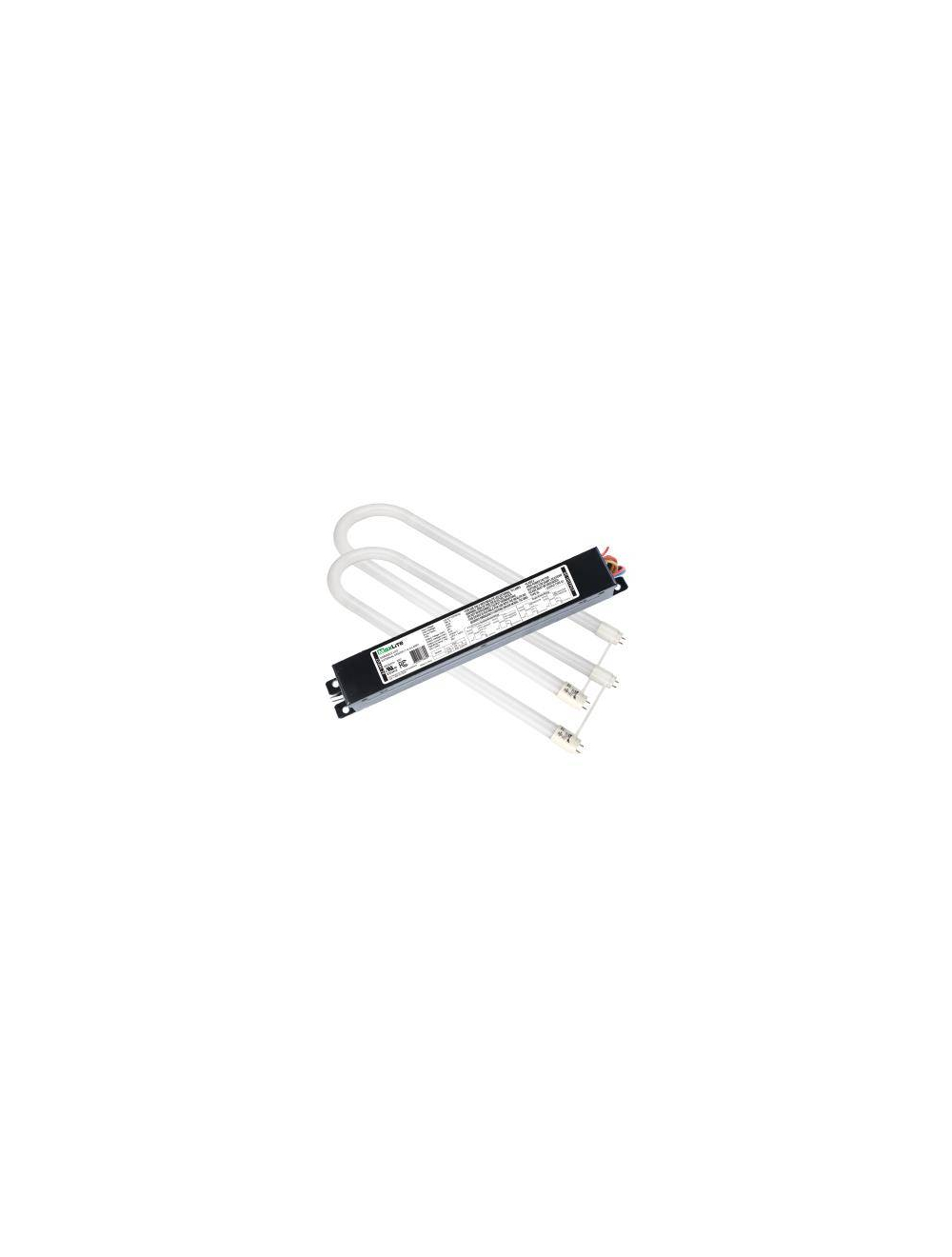

PRODUCT DESCRIPTION: UL Type C LED U-Bend Lamps are the most energy- efficient, reliable and dimmable solution for replacing fluorescent tubes in T8 U-bend troffers. Designed to provide uniform illumination from end-to-end, the lamps are powered by a matching external driver for 1- or 2-lamp luminaires. To install the lamps, the fluorescent ballast is removed from the fixture and the driver is connected to the sockets instead of the mains voltage, providing optimal long-term performance, safety and reliability. The lamps may be paired with an emergency battery back-up unit (sold separately) that provides 90 minutes of power to keep lamps illuminated during power failures.
FEATURE:
• Flicker-free
• PET coated glass
LISTINGS:
• UL Classified listed for dry/damp locations, Indoor
WARRANTY:
5-year standard warranty
| Part Number | U11.5T8EX235DR2L11.5 |
|---|---|
| Manufacturer | Maxlite |
| Watts | 12 Watts |
| Color Temperature | 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
| CRI | 80 |
| Lumens | 1700 |
| Rated Life | 50,000 hours + |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| Minimum Operating Temperature | -4° F |
| Maximum Operating Temperature | 113° F |
| Dimensions | Please See Spec Sheet |
| Lead Time | In Stock - Quick Ship |
| Certifications | ![]() ![]() ![]() ![]() |
| Specification Sheet | |
| Warranty | 5 Year |
