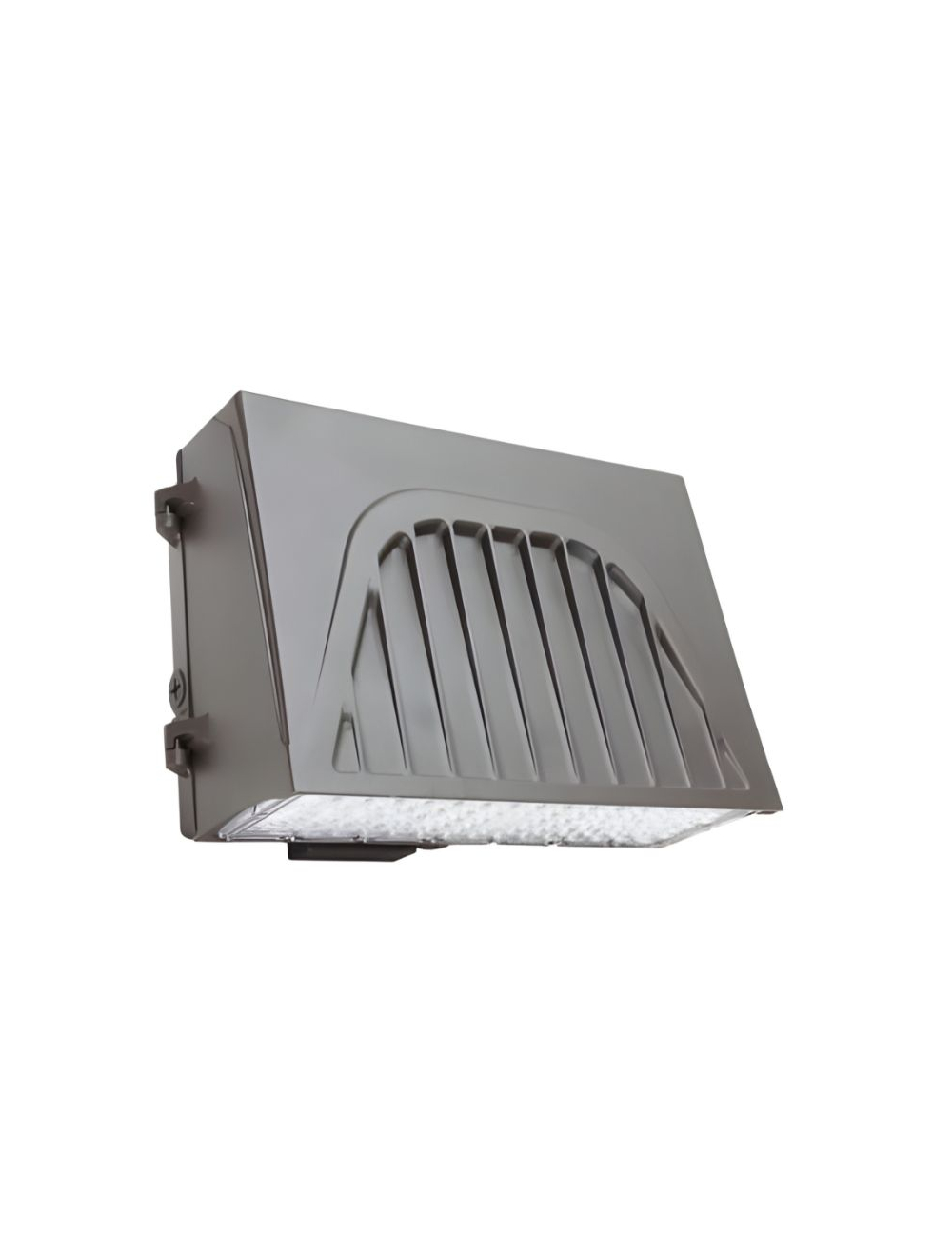

Maxlite WPC70U-WCSBPCCRE2 WallMax Cutoff Wall Pack 50/59/70 Watt Type 4 3CCT Selectable 120-277 Volt Bronze Finish Photocell Battery Backup 113206
WallMax Cutoff Wall Packs are a full cutoff architectural wall-mounted fixture ideal for commercial offices, schools, and other public administrative buildings. It offers a wide range of options, including CCT and wattage selectability, an integral photocell, and c-Max controls ready port.
Features:
• CCT selectable between 3000K, 4000K, or 5000K
• Wattage Selectable versions
• Sealed housing - control nodes are mounted internally without impacting the fixture sealing or aesthetics
• 4 x 1/2" conduit holes, one on each side for surface conduit applications
Controls Options:
• Integral photocell with on/off switch included standard
• Controls Ready for field installable c-Max controls
Construction:
• Die-cast aluminum housing with UV-stabilized and vandal-resistant polycarbonate LED lens
Listings:
• UL listed for Wet Locations, Outdoor
• IP65
• DLC Premium
- Not all product variations listed on this page are DLC-qualified.
Visit https://www.designlights.org/search/ to confirm qualification.
• RoHS Compliant
| Part Number | WPC70U-WCSBPCCRE2 |
|---|---|
| Manufacturer | Maxlite |
| Watts | 50 Watts, 59 Watts, 70 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 80+ |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120V-277V |
| Rated Life | 100,000 hours + |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 122°F |
| Beam Angle | Type 4 |
| IP_Rating | IP65 |
| Dimensions | 14.39" x 6.83" x 9.72" |
| Length | 14.39 |
| Width | 6.83 |
| Height | 9.72 |
| Certifications |     |
| Warranty | 10 Year |
| Lead Time | In Stock - Quick Ship |
