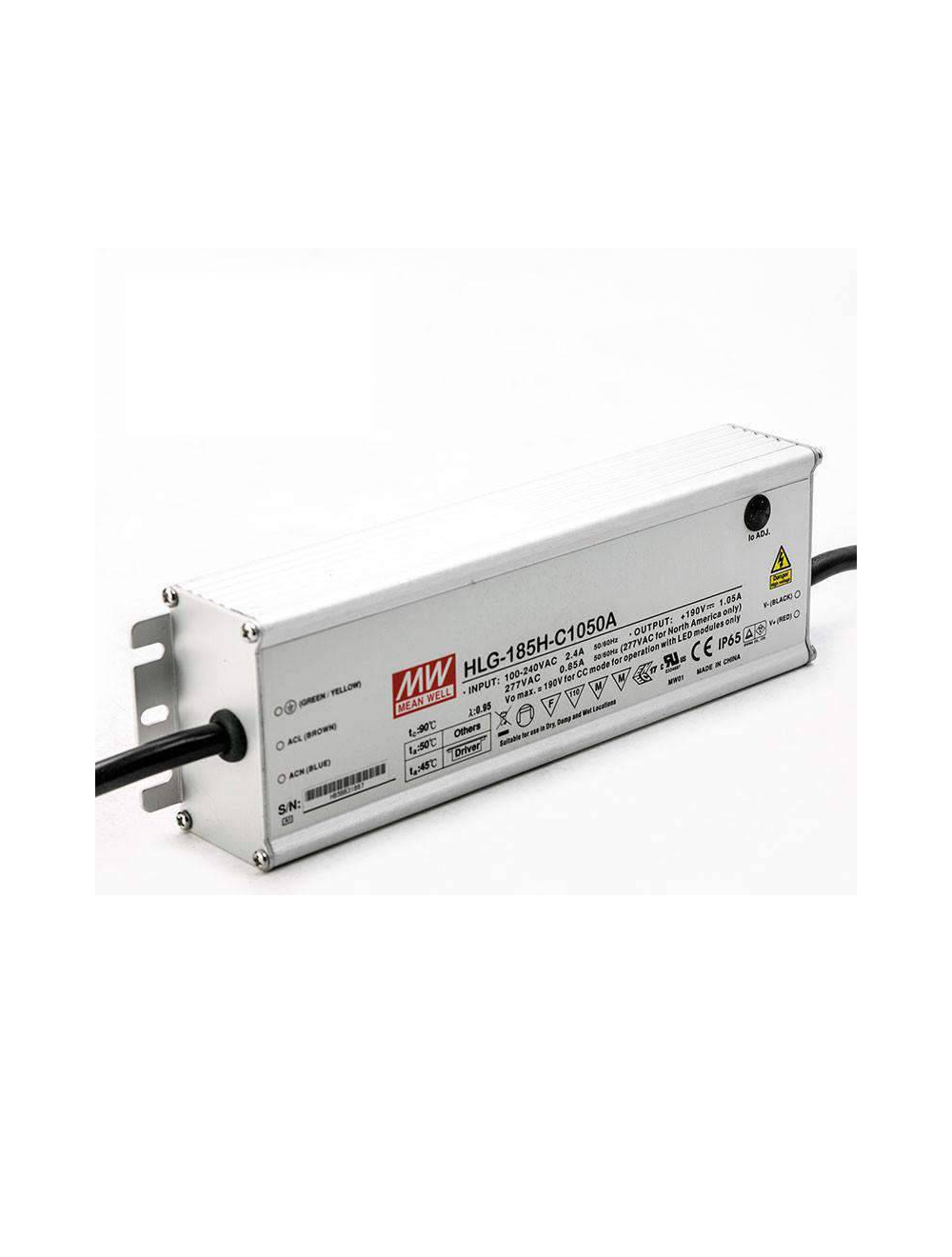

Meanwell HLG-185H-C1050AB AC-DC Single output LED Driver
Meanwell HLG-185H-C1050AB AC-DC Single output LED Driver
AC-DC Single output LED Driver (CC) with PFC; Output 1.05A at 190Vdc; IP65; Dimming with 1-10Vdc 10V PWM resistance; Io adjustable through built-in potentiometer
|
Part Number:
HLG-185H-C1050AB
|
|
Manufacturer:
MEAN WELL
|
|
Power:
200 W
|
|
Vin_min:
90 VAC
|
|
Vin_max:
305 VAC
|
|
LED Driving Mode:
Constant Current
|
|
Dimming:
0-10V, PWM, Resistance
|
|
Iout_min:
525 mA
|
|
Iout_max:
1050 mA
|
|
Vout Min:
95 V
|
|
Vout Max:
190 V
|
|
Case:
Metal Enclosure
|
|
IP Rating:
IP65
|
|
PFC:
PFC
|
|
% Typ Efficiency:
94
|
|
Certifications:
CSA C22.2 No. 250.12-13, EN55015, EN61000, EN61347-2-13, EN61547, EN62384, ENEC EN61347-1, GB17625.1, GB17743, GB19510.1, GB19510.14, J61347-1, J61347-2-13, UL8750
|
|
Special Note:
7-Year Warranty, Cable for I/O
|
|
Outputs:
1-Output
|
$30.00
Lead Time
In Stock - Quick Ship
SKU
HLG-185H-C1050AB
Meanwell HLG-185H-C1050AB AC-DC Single output LED Driver
AC-DC Single output LED Driver (CC) with PFC; Output 1.05A at 190Vdc; IP65; Dimming with 1-10Vdc 10V PWM resistance; Io adjustable through built-in potentiometer
| Part Number | Meanwell HLG-185H-C1050AB AC-DC Single output LED Driver |
|---|---|
| Manufacturer | Meanwell |
| Watts | 200 Watts |
| Input Voltage | 120V-277V |
| Output Voltage | 120V-277V |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | +90 |
| Dimmable | Yes |
| Dimensions | 228mm x 68mm x 38.8mm |
| Certifications |  |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
