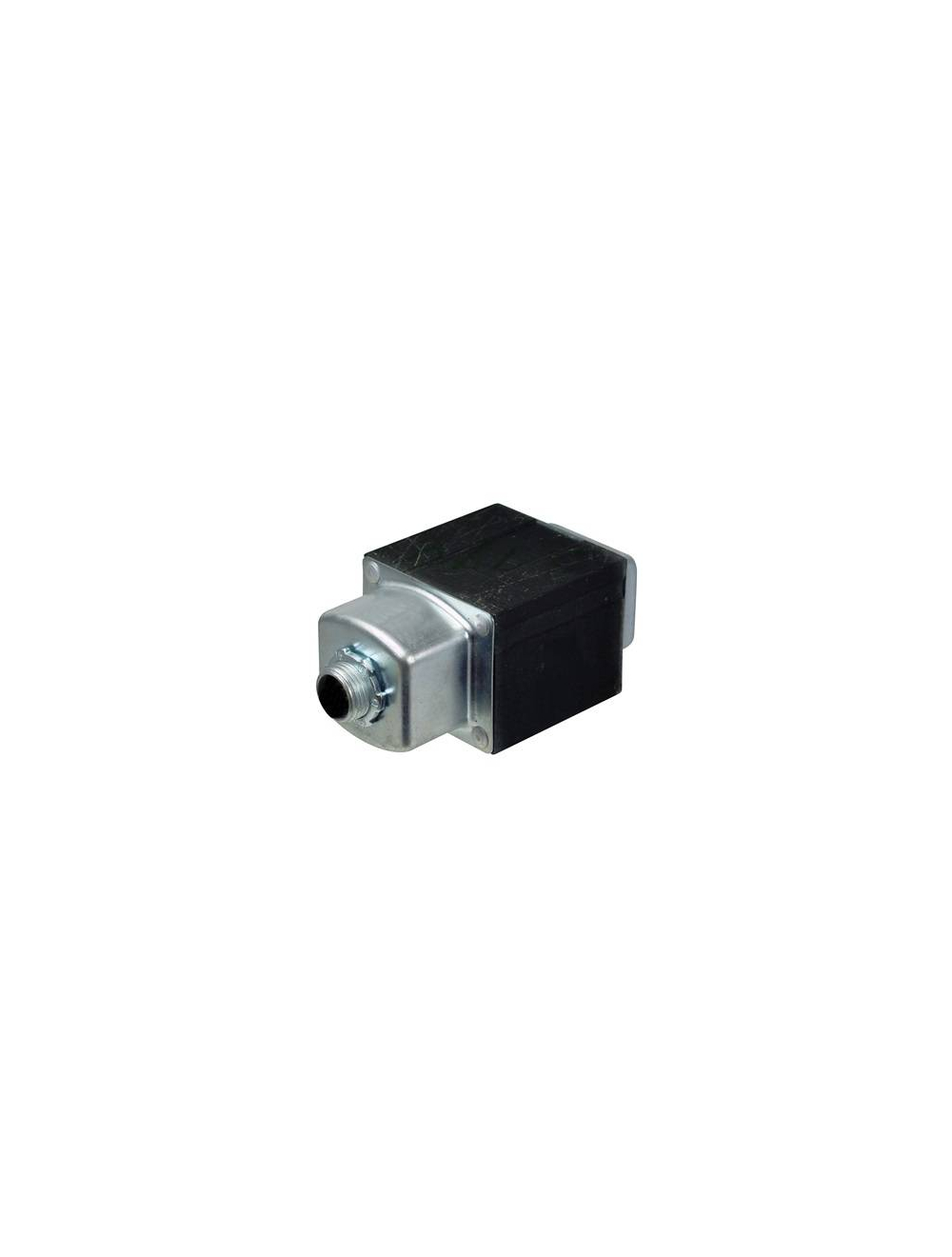

Nora NA-277/50MC Step Down Transformer, 227V to 120V 50 Watts
Step down transformer is an accessory offered to take 277V supply voltage and reduce it to 120V. The transformer is installed by a qualified electrician on a supply junction box before the 120V load and is 300VA rated. To calculate usable load, derate by 25%.
Nora NA-27750MC Step Down Transformer, 227V to 120V
Step down transformer is an accessory offered to take 277V supply voltage and reduce it to 120V. The transformer is installed by a qualified electrician on a supply junction box before the 120V load and is 300VA rated. To calculate usable load, derate by 25%
Dimming – Primary Side
Dimming on the primary side must be done with a 277V low voltage magnetic dimmer
Dimming – Secondary Side
Dimming on the secondary side (120V) must be done with a recommended compatible dimmer for the secondary load type
Minimum Clearance
Must be a minimum of 3″ from thermal insulation and 1/2″ from adjacent building components
Labels and Listings
UL Recognized
| Part Number | NA-27750MC |
|---|---|
| Manufacturer | Nora Lighting |
| Watts | 50 Watts |
| Input Voltage | 277V |
| Output Voltage | 120V |
| Dimensions | 4-1/4" x 2- /4" |
| Certifications |  |
| Warranty | 1 Year |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 732180819454 |
