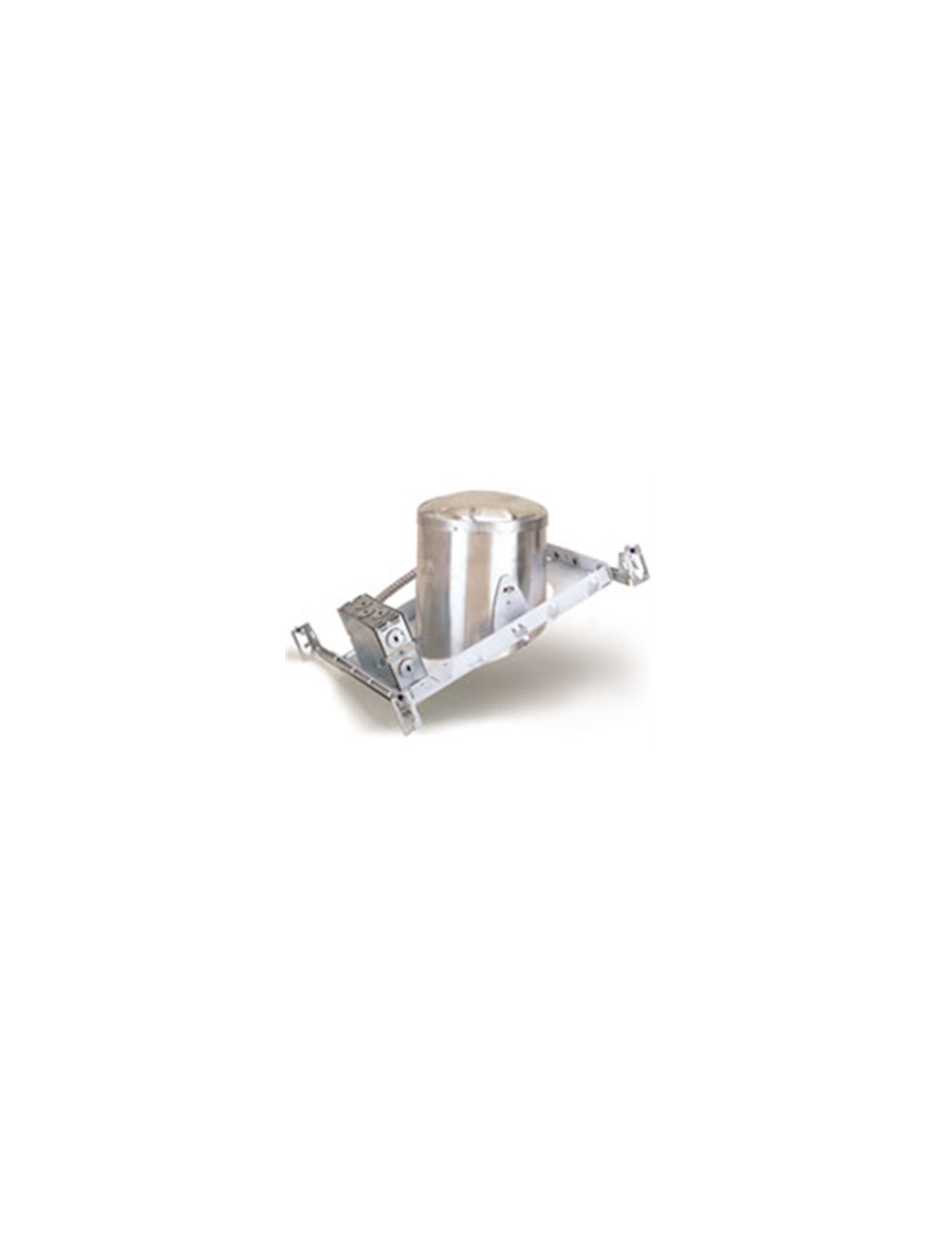

Nora NHIC-926QAT 6" Sloped IC Air-Tight Line Voltage Housing

New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is labeled for use with Nora 6” sloped line voltage trims and compatible with all LED retrofits.

FEATURES ·

IC Air-Tight energy saving by reducing the flow of air through the ceiling
Rated for direct contact with insulation
cULus listed for damp location and through branch circuit wiring
Quick connect provided
24-1/2" Bar hangers with captive nails and alignment foot
Accommodates ceiling pitches from 2/12 to 12/12 with designated trims

$35.10

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

NHIC-926QAT

Details

Sloped ceilings offer a clear path of unobstructed light from a 6/12 pitch (22-1/2 degree) ceiling to any floor or work plane. Airtight housing additionally reduces energy costs by decreasing the flow of air escaping through the ceiling. Rated for direct contact with insulation and adjacent ceiling structures, Nora’s sloped IC housings are easy and quick to install and accept standard down light or adjustable finishing trims. Also available as remodel.

Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required

Slope Angle:
Pitch: Minimum Pitch: 6/12, Maximum Pitch 12/12 (with designated trim)
Angle: Miminum Angle: 22-1/2°, Maximum Angle: 45° (with designated trim)

Bar Hangers: Bar hangers are adjustable from 13-5/8″ to 24-1/2″ and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.

Maximum Wattage: 75W (actual wattage varies with trim)
