Nora NHIOICD-48 4" Iolite LED Dedicated IC Air-Tight New Construction Housing 14W 800lm or 1000lm

New construction housing for use in insulated ceilings can be in direct contact with insulation**. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.

FEATURES · IC rated for direct contact with insulation** · Quick connect provided for electrical connection to the LED reflector · ASTM E283 for Air-Tight · Patented driver assembly

$72.45

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

NHIOICD-48

Driver / Dimming

120V input; Triac / ELV dimming

120-277V input; Triac / ELV / 0-10V dimming + $24.29

Optional Accessories

Remote Emergency Battery w/Test Switch + $158.50

Ceiling Extension Collar up to 2" + $3.79

Qty:

Details

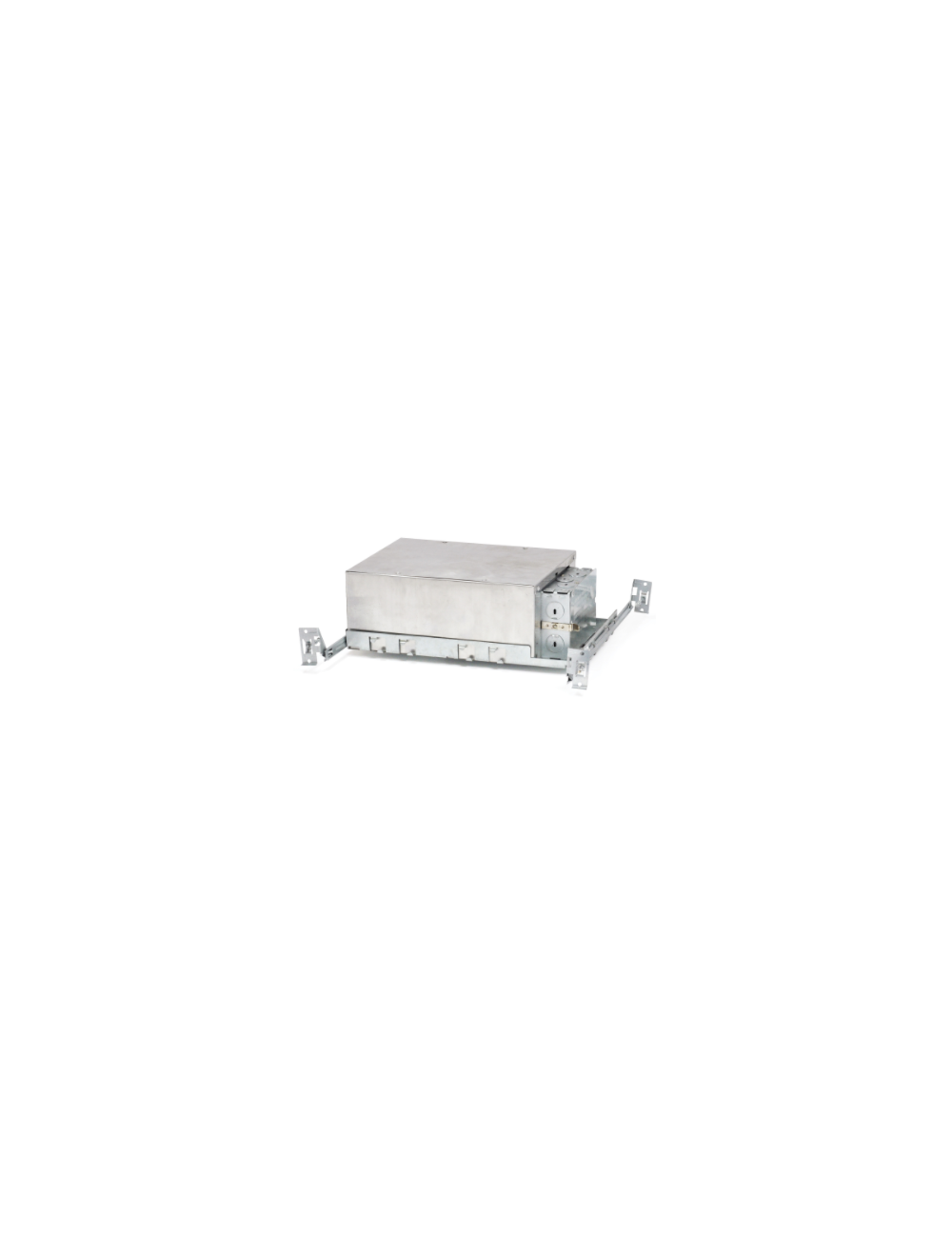

Dedicated new construction housing for 4″ Iolite reflectors. Rated for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows easy, tool-less removal of the driver.

Features:

IC Air-Tight rated
Quick connects provided for easy installation
Dimmable
5-year limited warranty
24-1/2″ hanger bars with alignment feet and nails included
cULus listed for damp location (wet location when used with specific reflectors)

Compatible Iolite Reflectors: NIO-4

Compatible Accessories:
NIO-4EXTC2: Extension collar for ceilings up to 2″ thick
NIO-TLMR-4R: Trimless mud plate for 4″ round trimless reflectors
NIO-TLMR-4S: Trimless mud plate for 4″ square trimless reflectors
NIO-FMMR-4R: Flush mount mud plate for 4″ round flanged reflectors
NIO-FMMR-4S: Flush mount mud plate for 4″ square flanged reflectors

Emergency: Housing can be pre-wired for use with remote battery, ordered separately (NEPK-07LEDUNV)

Specifications
