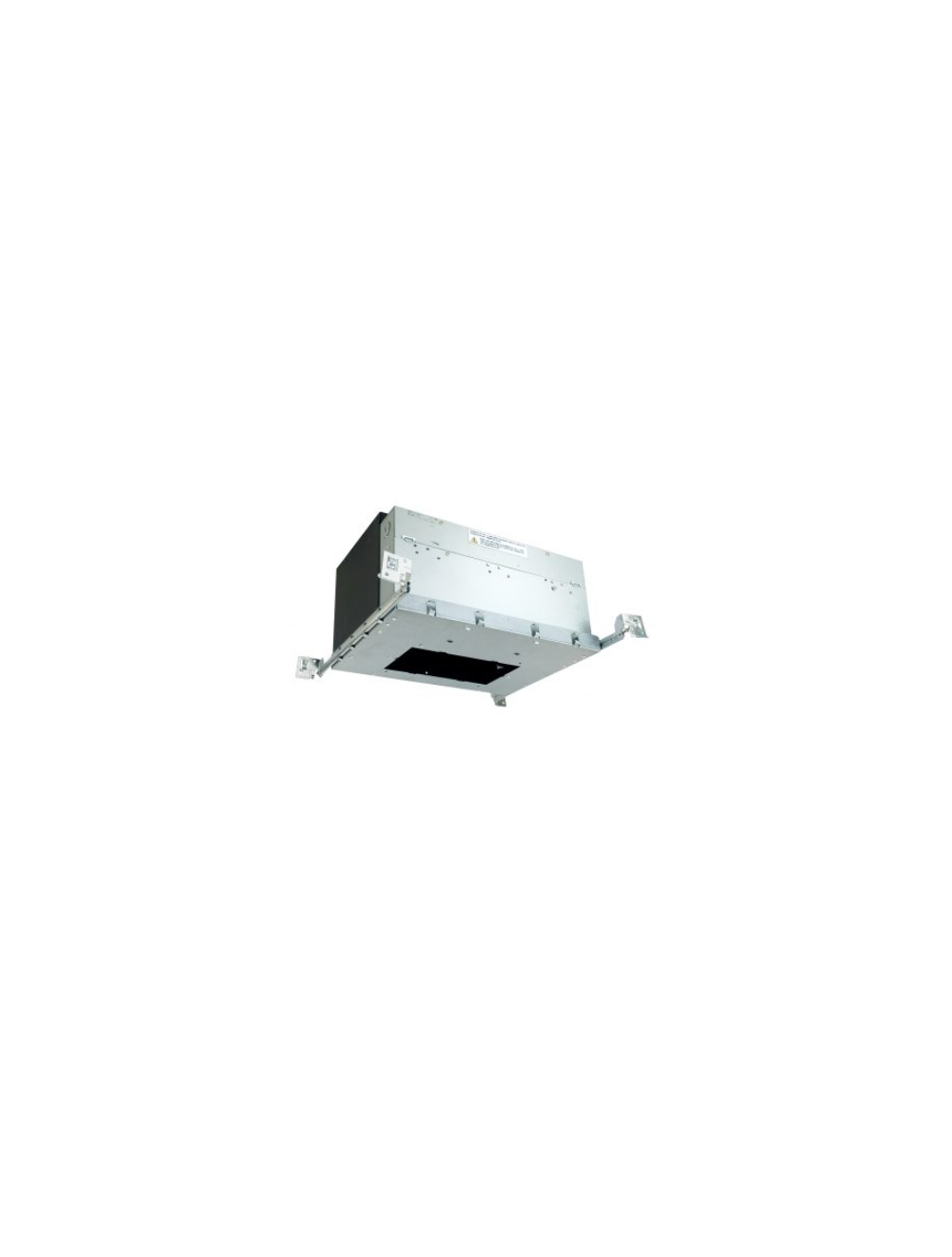

Nora NMHIOIC-12LE4 Iolite MLS IC Air-Tight Two Head Housing 24W LED

IC Air-tight new construction housing for Iolite Mulitple Lighting System. Accepts One Head Iolite Multiple Flanged (NMIOT-11) or Trimless (NMIOTL-11). Includes one LED driver with Triac/ELV and 0-10V dimming and 120/277V input.

Features:

IC & Air-Tight rated housing
Dimmable
Utilizes same technology as Iolite Downlight Series
Includes 24-1/2″ hanger bars with alignment feet
cULus and ENERGY STAR listed for damp location

Ordering Example: NMHIOIC-12LE4 / NMIOT-12-MPW-AAF-30X-10-MPW = Two Head Iolite Multiple, Matte Powder White Flange, Adjustable Snoot-Fixed-Adjustable Snoot, 3000K, 1000lm / 12W per head, / Matte Powder White finish

$179.55

Lead Time

Build Item 1-2 Weeks

Return Policy

30 Days Terms

SKU

NMHIOIC-12LE4

Details

Endless possibilities with Iolite multiple’s functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.

FEATURES

Trimless of Flanged appearance
One to three head configurations
Three optics included with each trim type (Premium TIR optics available)
Customizable reflector options
Housing includes individual drivers for each module
Cree® COB or Comfort Dim technology
Triac, ELV or 0-10V dimming

Optics: Each reflector includes field changeable optics (spot, narrow flood and flood - preinstalled). Premium 15° and 25° TIR optics are also available. (Note: TIR optics are not compatible with Comfort Dim)

REFLECTORS:

Fixed Downlight: Fixed downlight delivers over 1300lm in four finishes; Black (B), Black interior / Matte Powder White (BMPW - Note: adjustable and wall wash reflectors mixed with BMPW will be MPW), Haze (HZ) or Matte Powder White (MPW).

Adjustable Snoot: Rotates 359° horizontally and pivots 20° delivering over 1100 lumens in three finishes; Black (B), Haze (HZ) or Matte Powder White (MPW).

Wall Wash: Fixed wall wash reflector aims LED modules at optimal angle for maximum light distribution along wall surfaces. Available in three finishes; Black (B), Haze (HZ) or Matte Powder White (MPW).

Blank Plate: Blank plate is used in conjuction with two or three head configurations where a blank head is needed. Available in three finishes; Black (B), Haze (HZ) or Matte Powder White (MPW).

Specifications
