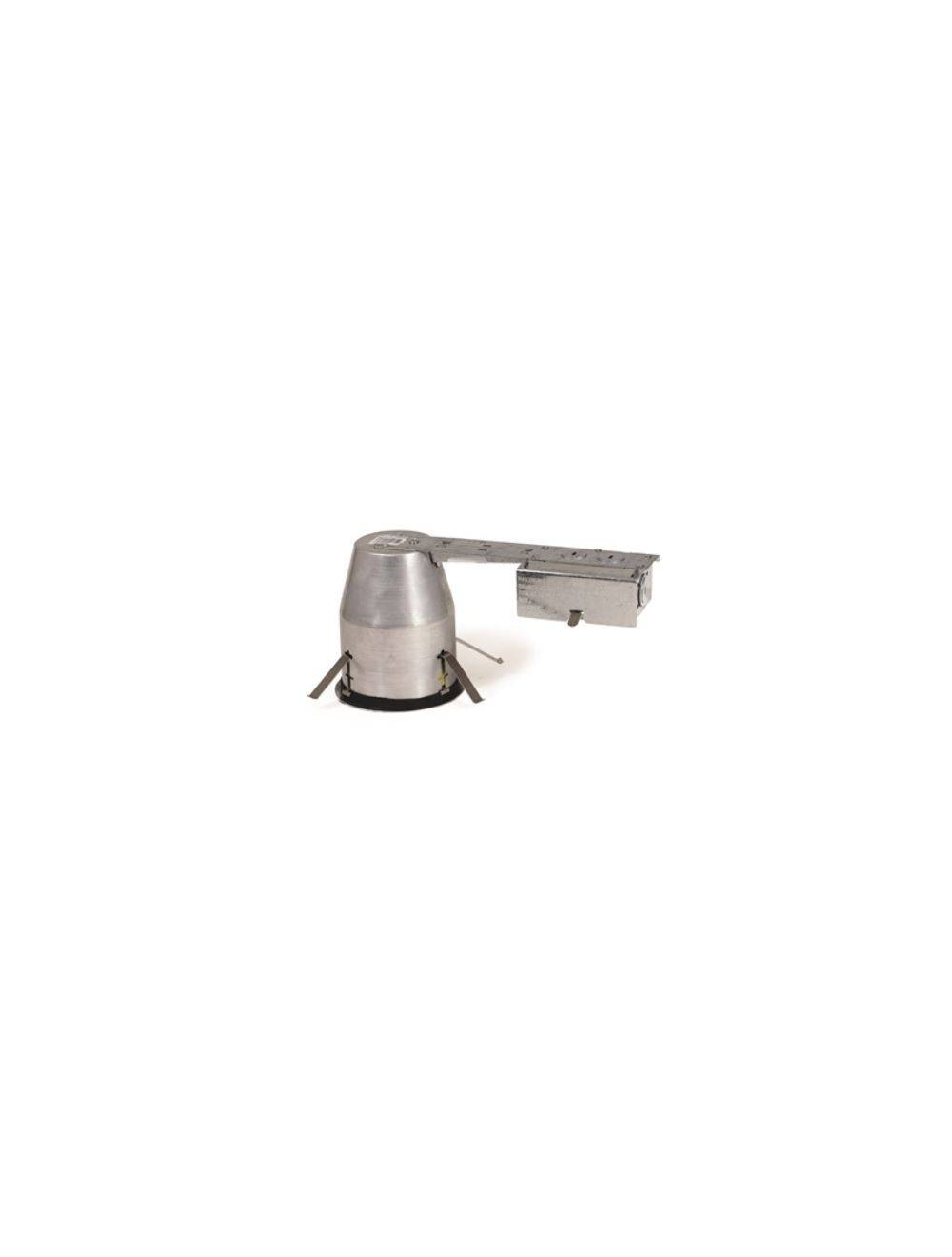

Nora NSERIC-407AT/20 4" Air-Tight Line Voltage MR16 GU10 Remodel Housing

Nora NSERIC-407AT/20 4" Air-Tight Line Voltage MR16 GU10 Remodel Housing

Product Description: Nora Lighting’s Line Voltage MR16 GU10 (LED compatible) housing provides the crisp reflectance of MR16 light sources while operating on straight line voltage without transformers. New GU10 lamps are shielded and feature solid, heavy duty turn-and-lock contacts. Nora’s GU10 fixture is quick to install, operates on standard incandescent dimming controls, and accepts a wide variety of high quality, adjustable finishing trims. Also available as new construction.

Housing: Aluminum housing adjusts to a ceiling thickness from 3/8" to 1-3/8". Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.050 steel and connects to housing with j-box and ballast. Integral springs brackets provided.

Air Flow Restriction: Air tight (AT) housings have factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements

Thermal Protector: Standard UL thermal protector rated for 90ºC (194ºF) is affixed to the inner top surface of housing.
