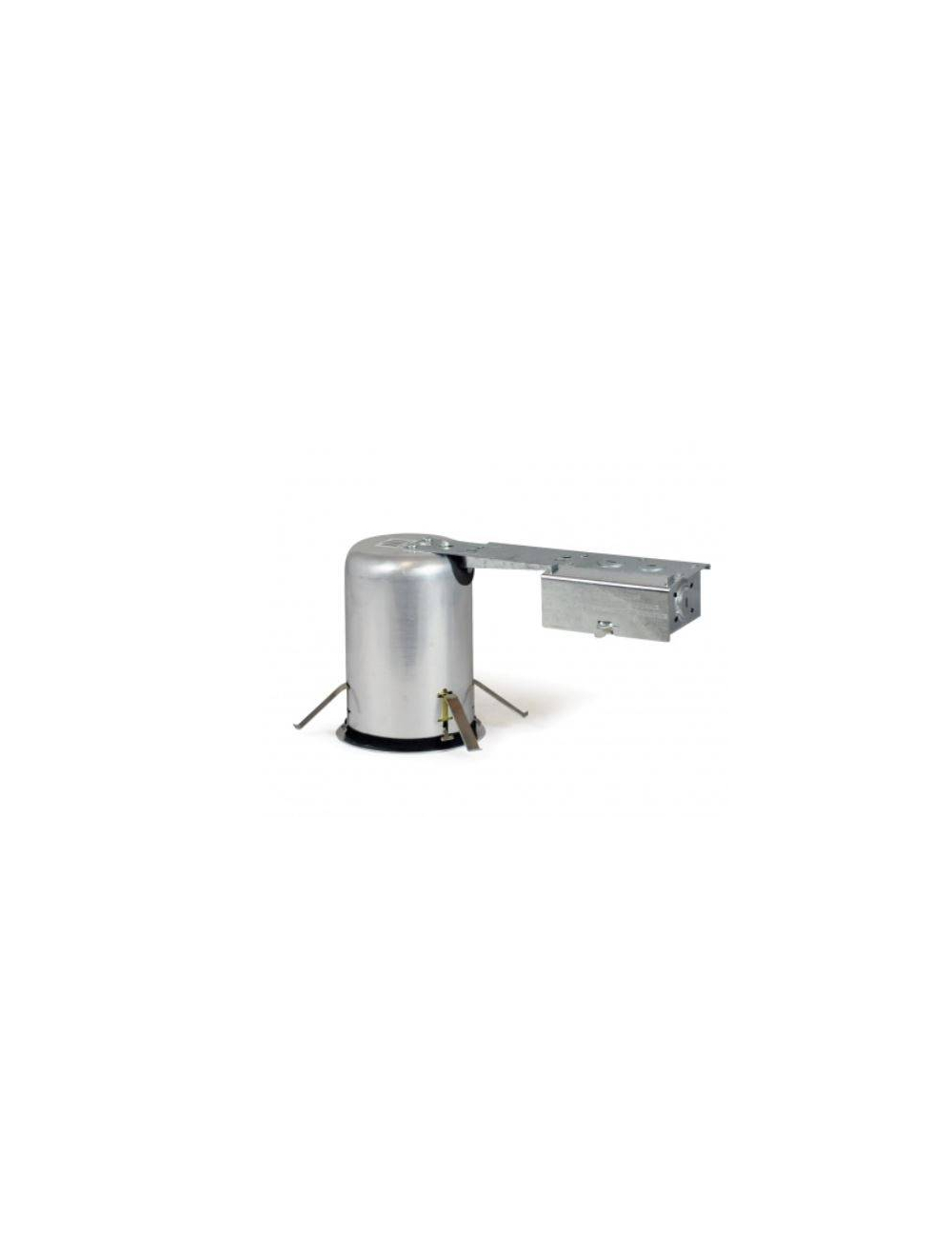

Nora NSIC-401QAT 4" IC Air-Tight Line Voltage Double Wall New Construction Housing

Nora NSIC-401QAT 4" IC Air-Tight Line Voltage Double Wall New Construction Housing

Product Description: Nora Lighting’s IC recessed 4" housing allows the use of R/PAR20, PAR16 designer light sources in insulated ceiling environments. Rated for direct contact with thermal insulation, Nora’s 4" IC housing is quick to install, accepts a wide variety of high quality trims, and is airtight built for energy savings.

Plaster Frame: 0.040 steel frame with integral bar hanger brackets. Brackets can accommodate longer 27" accessory flat bar hangers. Brackets run along all sides of frame to allow bar hangers to be run parallel or perpendicular to junction box.

Socket: Galvanized steel socket plate adjusts inside housing for optimum light performance. Contains a single medium base socket. Protective cap included to protect socket interior during ceiling painting. Socket plate can be removed in the field to convert to a floating socket

Air Flow Restriction: Air tight (AT) housings have factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
