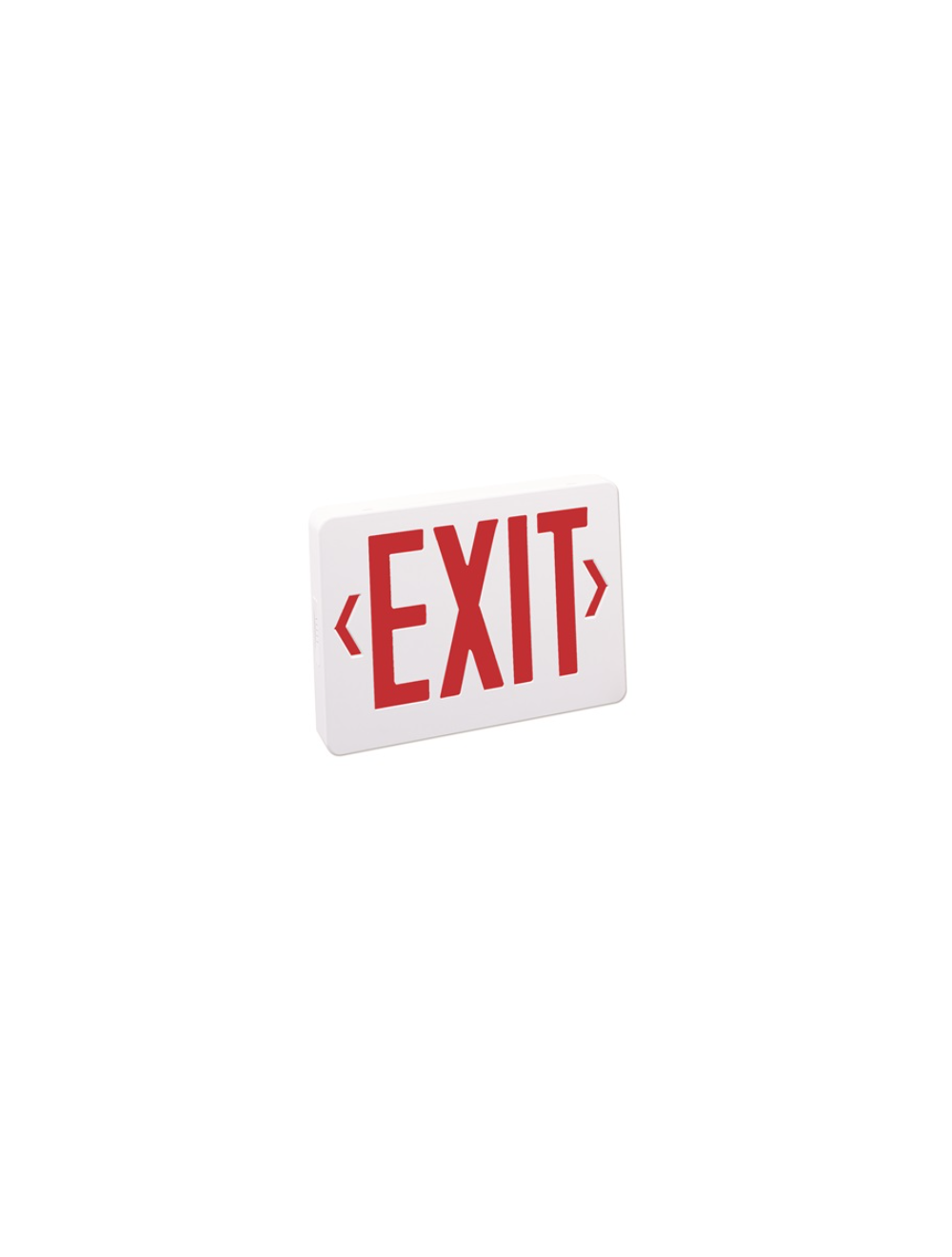

Nora NX-503-LED LED Exit Sign AC only

Compact, low profile LED exit signs are as brilliant and visible as standard incandescent signs, yet use a fraction of the power. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. Nora Lighting’s LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.

NX-503-LED/G – Green “Exit” Letters, White Housing
NX-503-LED/BG – Green “Exit” Letters, Black Housing
NX-503-LED/R – Red “Exit” Letters, White Housing
NX-503-LED/BR – Red “Exit” Letters, Black Housing

BODY
12-1/8″ Width x 8-5/8″ Height x 1-3/4″ Depth
Injection-molded thermoplastic housing

FACE
Single or double face available. Lettered face provided if dual face is preferred.
6″ high text with color diffusion
Replaceable knockout directional chevrons

MOUNTING
Wall, side, or ceiling
Mounting hardware and canopy included

ELECTRICAL
120V/277V Input
Total power usage: 2 Watts
LED light source
Isolated surge/short circuit protection
Disconnect for deep discharge

LIFE EXPECTANCY
LED sources and PC circuitry are rated for approximately 25 years with no change in illumination level
5 year warranty on materials and workmanship

APPROVALS
UL 924
Suitable for damp location
NFPA
NEC
State & Municipal
Certified to the energy efficiency standards of California Title 20

ACCESSORIES
NEXL-G: Green Replacement Lens
NEXL-R: Red Replacement Lens
NEG-60: Wet Location Enclosure
