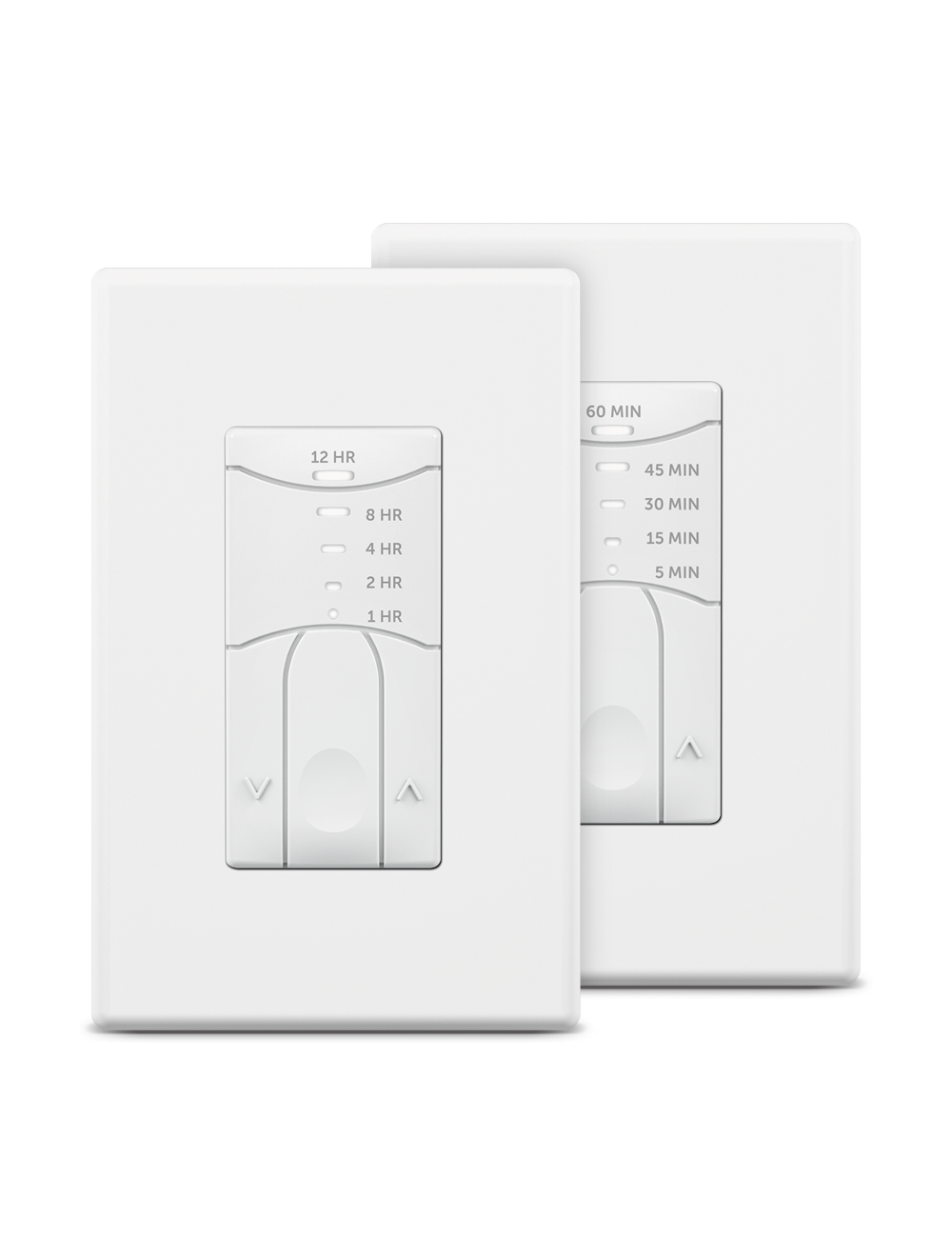

The SENSORWORX interval timer switch provides an automatic lighting control solution that is intuitive to
operate. Designed with contractors in mind, the unit is significantly shallower than typical timers, resulting in
less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For
interval adjustment, raise and lower buttons are present in addition to the on/off button. Five vertically stacked
LEDs are provided to indicate the timer setting / time remaining. Configurable parameters include Maximum
Time Setting, Blink Timeout Warning, Turn on Timer Levels, and LED Indication. This stylish unit also matches the
SENSORWORX family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.
ELECTRICAL FEATURES
• Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
• Electronically Timed Switching Ensures Long Relay Life
• Meets NEC 404.2(c) & 404.22 Guidelines Regarding Powering Over Ground & Current Leakage
OPERATIONAL FEATURES
• 5 LED Time Level Indicators
• Configurable Parameters including Maximum Time, Turn on Timer Setting, & Blink Warnings
• Blue Locator LED when Lights are Off
PHYSICAL FEATURES
• Enclosure is 25-40% Shallower than Other Timers (< 1” Depth into Wallbox)
• Self-Grounding Mounting Strap
• Modern Look and Intuitive Easy-Tap Buttons for On/Off, Increase Time, & Decrease Time
• Settings are Adjustable Without Removing Cover Plate
| Part Number | SWX-843-60M-WH |
|---|---|
| Manufacturer | Sensorworx |
| Input Voltage | 120V-277V |
| Warranty | 5 Year |
| Minimum Operating Temperature | 32°F |
| Maximum Operating Temperature | 122°F |
| Certifications | ![]() ![]() ![]() |
| Specification Sheet | |
| Dimensions | 2.74”H x 1.68”W x 1.39”D |
| Lead Time | In Stock - Quick Ship |
