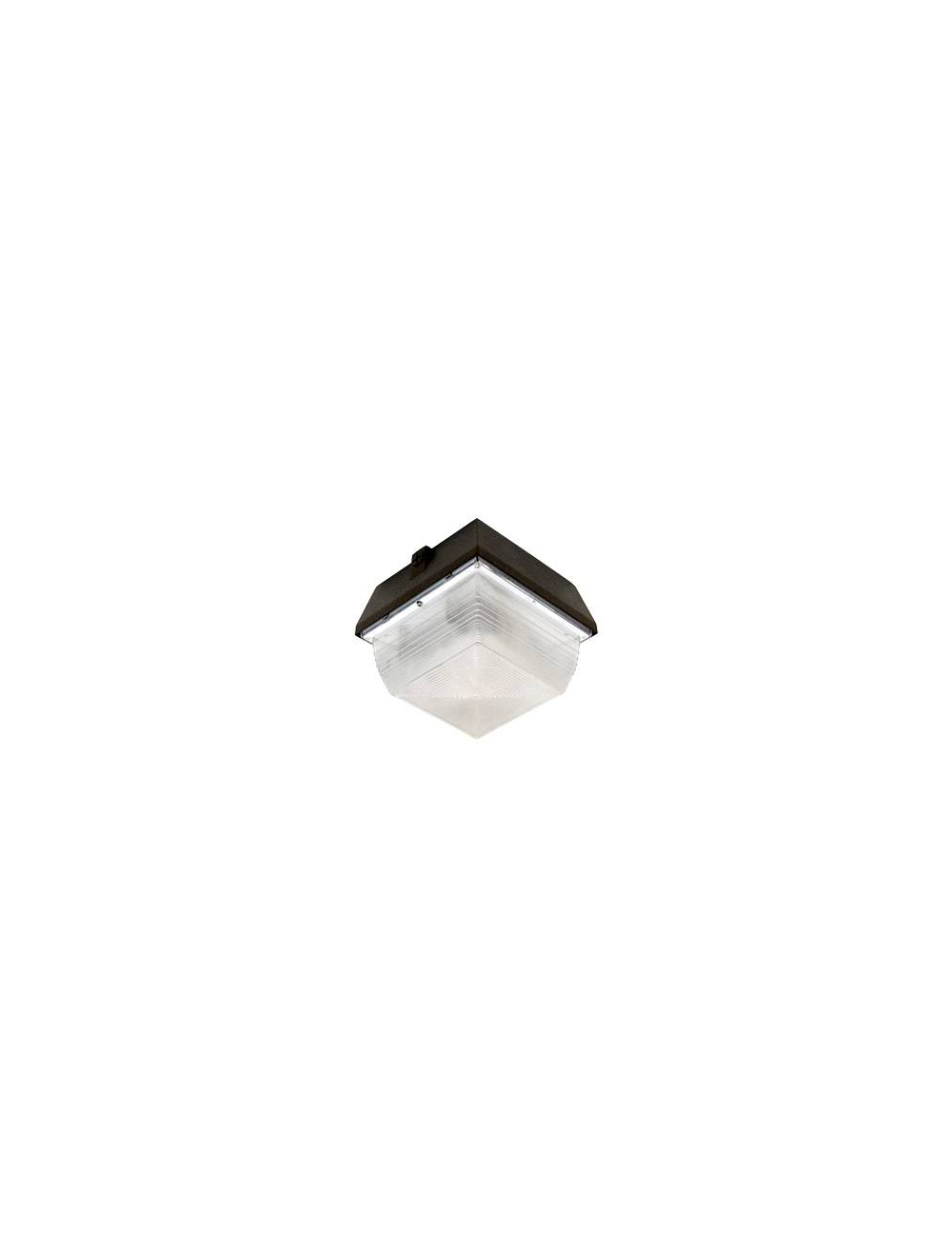

The square die-cast aluminum housing canopy luminaire. Modular design LED and aluminum reflector allows for ease of maintenance. Use for safety or security location of parking areas, walkways, and underpasses.
EATURES:
• Rugged die-cast aluminum housing and injection molded high impact UV stabilized clear prismatic polycarbonate lens.
• Die-cast aluminum housing with a dark bronze polyester powder coated finish.
• Housing with 1/2” side hub and plug provied. (Field installation of button photocell, not included)
• Housing has silicone gaskets secure the seal between the lenses and the housing.
• Available with tamper resistant screw as option.
MOUNTING:
• Ceiling or surface mount.
• Direct mounting to recessed J-box or 1/2” threaded plugs for conduit entry.
LENS:
• Injection molded high impact UV stabilized prismatic polycarbonate lens.
• Polycarbonate lenses will protect the light source against abuse, such as severe impact and vandalism.
LED:
• High efficient LED modules, Components are products of Samsung LEDs.
• Color Temperature: 3500/4000/5000K
• Color Rendering Index: 82+ Ra.
• Luminous Efficacy: 125 lm/W
• Input Voltage: 24Vdc
• 60°/120° Beam Angle.
• 50,000 hours.
| Part Number | SQDL2-40-G2LED-XXK-UNV-BZ |
|---|---|
| Manufacturer | Utopia |
| Watts | 40 Watts |
| Lumens | 4250 lm |
| CRI | +82 |
| Color Temperature | 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120V-277V |
| Rated Life | 50,000 hours + |
| Minimum Operating Temperature | -22°F |
| Maximum Operating Temperature | 122°F |
| Dimensions | Depth: 8-7/8", Width: 12-3/8" |
| Certifications | ![]() ![]() ![]() |
| Warranty | 5 Year |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
