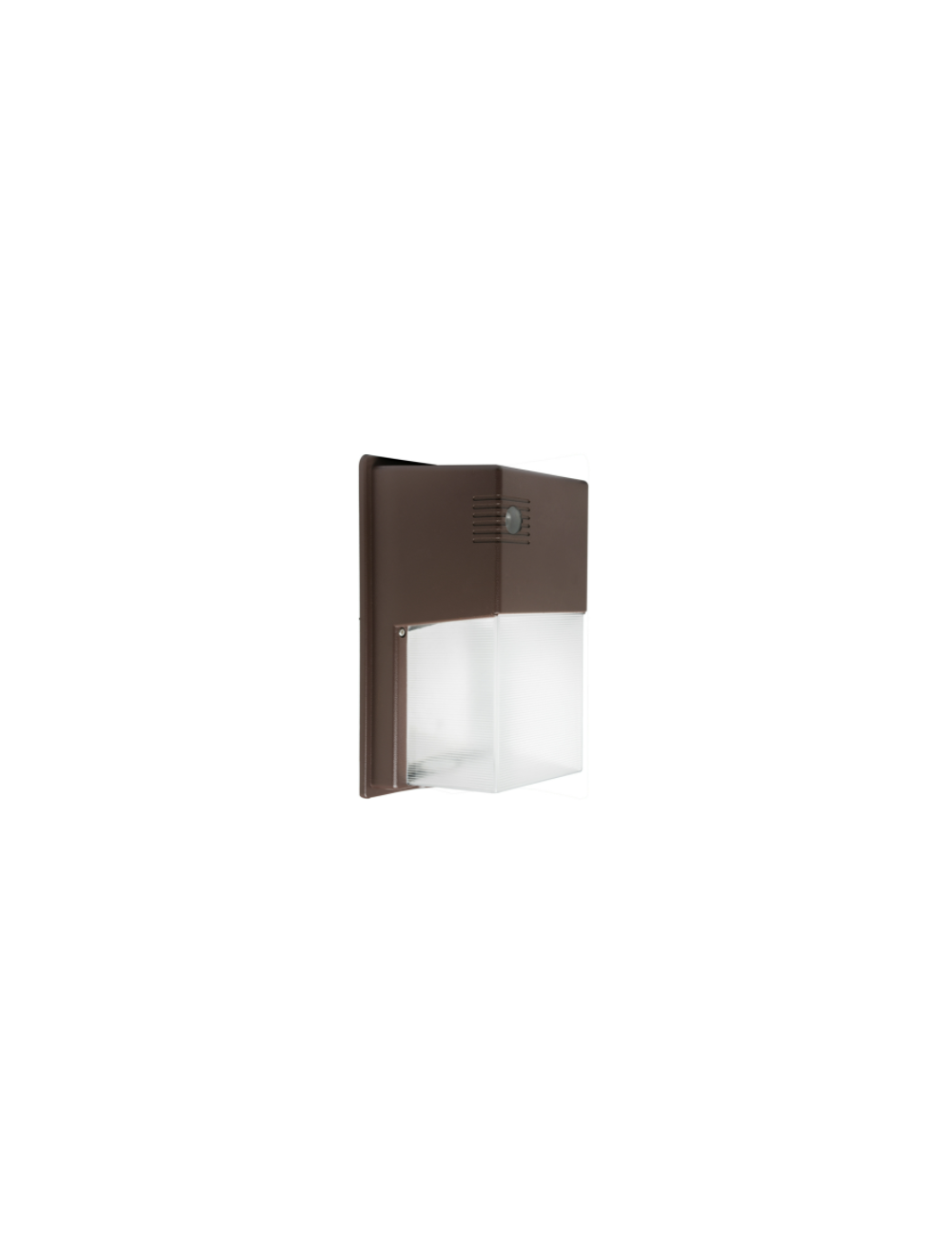

Westgate LSWX-5-30W LED Multi-Power Non-Cutoff Wall Packs w/ Photocell

Features:

• Back plate: Die-cast aluminum
• Threaded 1/2” Knockout Provided on Top Section of the Back
• Polycarbonate Housing & Lens
• 7-Year Warranty
• Multi-Power (The switch is inside the fixture)

Technical Specifications:

Electrical:

• Voltage: 120-277VAC 60Hz
• Wattage: 5W 10W 20W 30W
• Power Factor: >0.90
• Efficacy: 124 LPW
• Includes Pre-wired Photo Electric Control (Dusk to Dawn Photocell), 120 Volt, Removable
• Photocell Response Time: Maximum 3 Seconds

Lighting:

• Dimmable: 0~10V Dimming
• LED Type/Brand: 2835LUMILEDS
• Front: Polycarbonate Lens and Housing
• Multi-Power (The switch is inside the fixture)
• Total Lumens: 3600LM Max.
• Color Temperatures: 3000K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 70
• Beam Angle: 90° x 110°
• Rated life: 70,000 Hrs

Mechanical:

• Back plate: Aluminum LED board: High Conductive, Waterproof, Aging Resistance, Salt Mist Resistance
• Threaded 1/2” Knockout Provided on Top Section of the Back
• Polycarbonate Housing & Lens
• Non-Cutoff Optics Ideal for Maximum Light Distribution
• Operating Temperature: -4ºF -104ºF
• Wet Location
• 7-Year Warranty
• IP54

Applications:

• Ideal for general site lighting, loading docks, doorway, pathway and parking areas.
