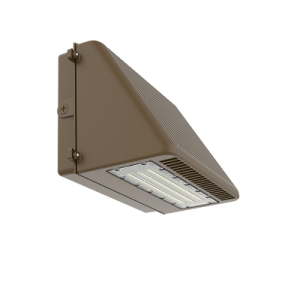

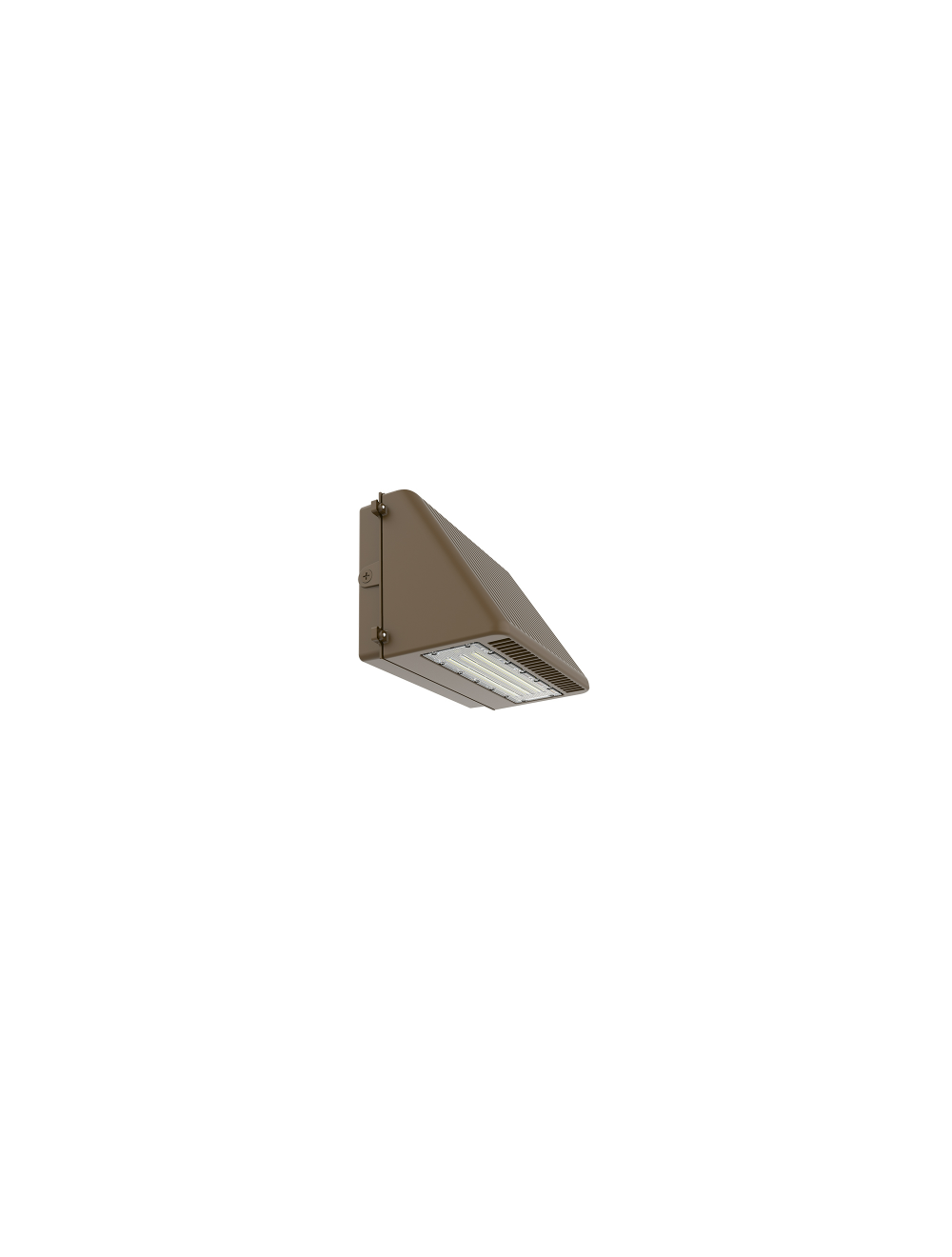

Westgate LWPX-50W Power & CCT Adjustable Full Cutoff Wall Pack

Features:

• High Light Transmittance, Anti-UV and Fire Resistant PC Lens
• LED Type/Brand: SMD 3030/ Philips Lumileds LEDs
• Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 BackDie-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• Multi CCT and Power (Switches are inside fixture)
• 7-Year Warranty

Technical Specifications:

Electrical:

• Voltage: 120-277VAC 60Hz
• Wattage: 50W
• Power Factor: >0.95
• Efficacy: 100 / 110 LPW

Lighting:

• Dimming: 0-10V dimming
• LED Type/Brand: SMD 3030/ Philips Lumileds LEDs
• The Type II Distribution Is Used for Wide WalkWays, on Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting • Dimmable: 0~10V Dimming
• Total Lumens: 5000LM/ 5500LM
• Color Temperatures: 3000K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 80
• Beam angle: 80° x 100°

Mechanical:

• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• Operating Temperature: -40° to 104ºF
• Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
• Wet Location
• 7-Year Warranty
• Full Cutoff, Dark sky Compliant
• IP 65
• Rated life: 70,000 Hrs

Applications:

• General site Lighting
• Alleys
• Loading docks
• Doorways
• Pathways
• Parking areas
