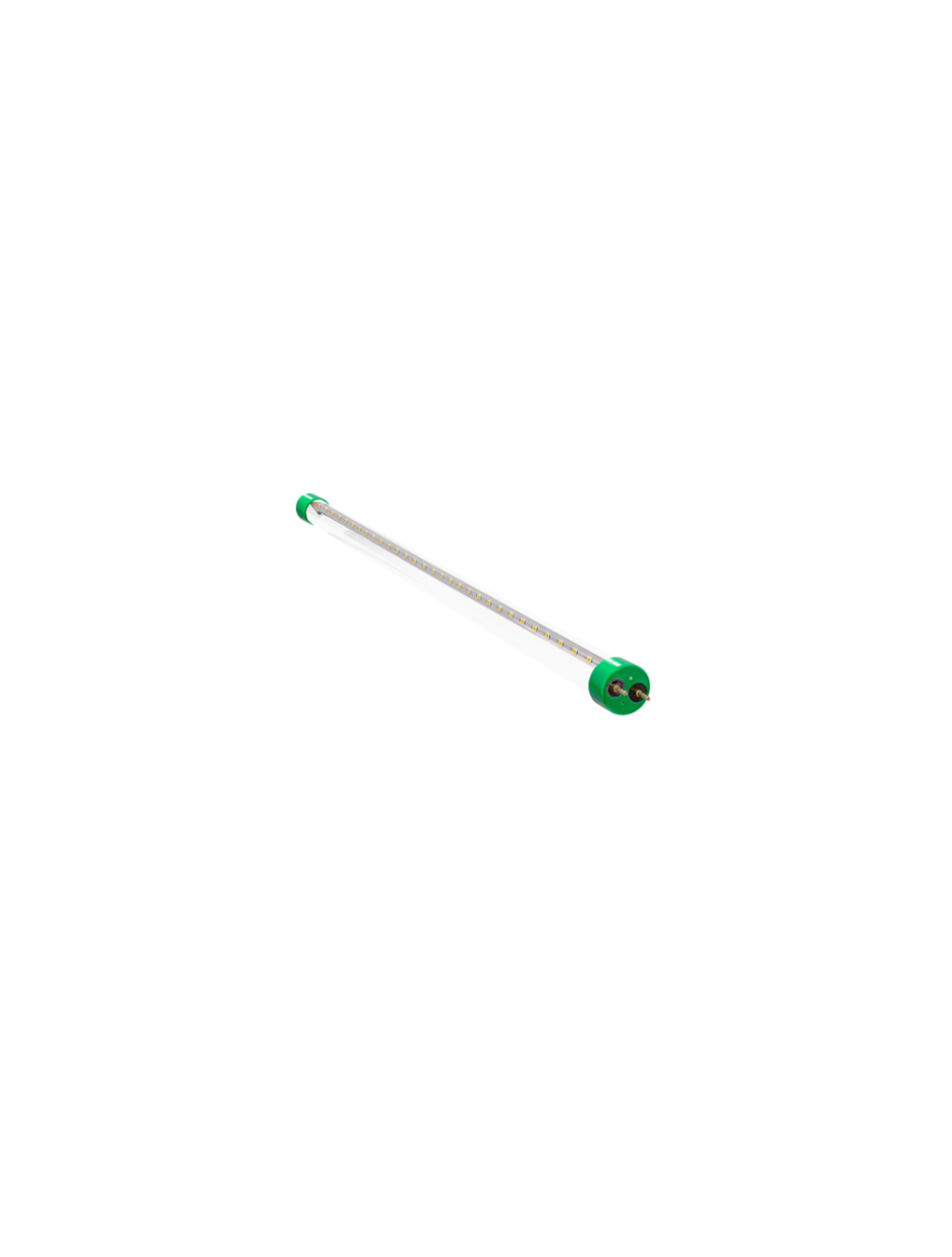

Westgate T8-EZ6-GS-2FT-10W LED T8-EZ6 Glass Tube Lamp 2ft 10W

Crystal Glass T8 Tube switches from fluorescent tubes to LED, giving more cost efficiency by providing the same amount of lumen output with less energy consumption. Type B single end and Type A+B are designed for different retrofit projects. 350° beam angle glass The LED tube offers a soft and bright light distribution. Stable quality out of mass automated production.

$8.71

Lead Time

In Stock - Quick Ship

SKU

T8-EZ6-GS-2FT-10W

Lens Color

Clear

Frosted

Kelvin

3000K

3500K

4000K

5000K

Qty:

Details

Features:

Type A + B (Dual UL)
Type A: With Existing Ballast - UL No. E366061
Type B: Ballast Override (AC Direct), Connect One End or Both Ends (Dual Function) - UL No. E342884
5-Year Warranty
Frosted Lens or Glass Lens

Technical Specifications:

Electrical:

Voltage: 120-277V; 50/60Hz AC
Power Factor: >0.90
THD: <20%
Wattage: 10W
Efficacy: 120 LPW

Lighting:

Dimming: Non Dimmable
Total Lumens: 1200LM
Color Temperatures: 3000K/3500K/4000K/5000K
Color Rendering Index: CRI ≥ 80
Beam Angle: 120°
Rated life: 50,000 hrs

Mechanical:

Base Type: G13
Glass tube: Better Transparency and Thermal Conductivity than Plastic
Clear Glass or Frosted
Ambient Operating Temperature: -13ºF to 113ºF
IP Rating: IP20 (Indoor)

Applications:

Direct Fit 2 T8 LED tubes do not burn out easily and provide bright and even lighting to schools, office spaces, retail stores and storage rooms.

Specifications

More Information
Part Number	T8-EZ6-GS-2FT-10W
Manufacturer	Westgate
Watts	10 Watts
Color Temperature	3000 Kelvin, 3500 Kelvin, 4000 Kelvin, 5000 Kelvin
CRI	80+
Lumens	1200LM
Lumens Per Watt	120 LPW
Beam Angle	120°
Rated Life	50,000 hours +
Input Voltage	120V-277V
Dimmable	No
Minimum Operating Temperature	-13ºF
Maximum Operating Temperature	113ºF
Dimensions	23 1/5”(L) X 1” (D)
Lead Time	In Stock - Quick Ship
Certifications	,
UPC Code	845060061802
Warranty	5 Year
