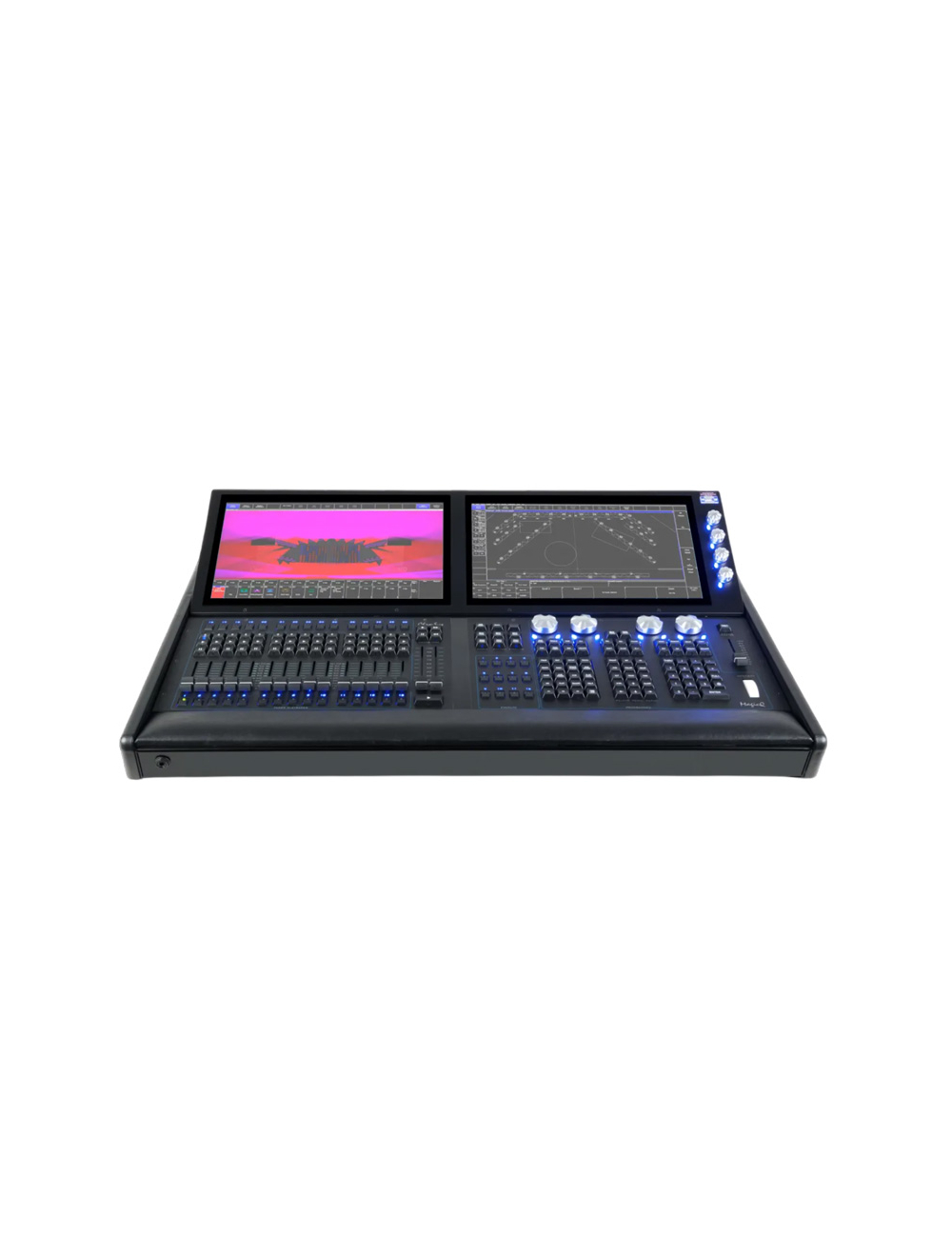

Chauvet Pro CHAMMQ500MPLUSWITHCASE MagicQ MQ500M+ Stadium Console

At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.

$41,825.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMQ500MPLUSWITHCASE

Details

Overview
• 400 universes direct from the console
• 15 fully motorised fader playbacks
• 15 encoder playback with RGB indicators
• 12 multi-purpose Macro/Executes/Playbacks keys
• RGB illumination of playbacks
• Backlit buttons
• Dual Inbuilt 15″ Multi HD touch displays
• Two Display Port++ External Monitor Support
• Inbuilt Wi-Fi for connection of Remote Focus application
• Inbuilt 4-port Gigabit Network Switch
• 4 DMX ports
• Audio In/Out on the Rear Panel
• Power Out for MQ500M Stadium Wing
• Up to 8 touch displays support (2 Internal, 2 External, 4 via remote network)
• Dual motorised 100mm crossfaders ideal for Theatre
• Inbuilt MagicVis Visualiser with full rendering of beams and gobos

Hardware Specifications
• Universes direct from the console (via Artnet/sACN/Pathport): 400
• Direct DMX Outputs: 4
• Motorised Playbacks: 15
• Encoder Playbacks: 15
• Macro/Execute/Playback Section keys: 12
• Total no of Playbacks: 42 (15+15+12)
• Dual Motorised Cross Faders: Yes
• Attribute Encoders: 8
• Backlit Keys: Yes
• Illuminated Playback/Encoders with RGB control: Yes
• Intensity Wheel: 1
• Network Ports: 4 (Gigabit)
• In-built Wi-Fi: Yes
• Inbuilt 15″ HD Multi-Touch Displays: 2
• External Monitors DP++ Port: 2
• USB Ports, including 2 High Power USBs: 6
• Audio Input (1 channel, 7 band): Yes
• Audio Input: Yes
• Audio Output: Yes
• MIDI Ports 1 in and out: Yes
• LTC Timecode Ports in and out: Yes
• Remote Input: Yes
• Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
• Front Storage Pockets: 2
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Power Output, Neutrik powerCON TRUE1
• Power Rating: Max 3.45A @ 100V A.C, Min 1.9A @ 240V A.C
• Max Power Consumption (mains): 456w

Software Specifications
• Max Number of DMX Channels: 204,800
• Max Number of Fixtures Supported: 204,800
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Numbers of Shows: Virtually unlimited (500GB SSD)

Included Accessories
• Dual Colour Desk lights: 2
• Dust cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1
• Monitor arm with VESA mount: 1
• USB Keyboard: 1
• USB Mouse: 1

Boxed Weights and Dimensions
• Width: 960mm (37.8 inches)
• Depth: 690mm (27.2 inches)
• Height: 330mm (13 inches)
• Weight: 40kg (88 lb)

Console Weights and Dimensions
• Width: 860mm (33.8 inches)
• Depth: 585mm (23 inches)
• Height: 90mm high at front (3.5 inches), 175mm high at rear (screens stored) (6.9 inches)
• Weight: 32kg (70.5 lb)
