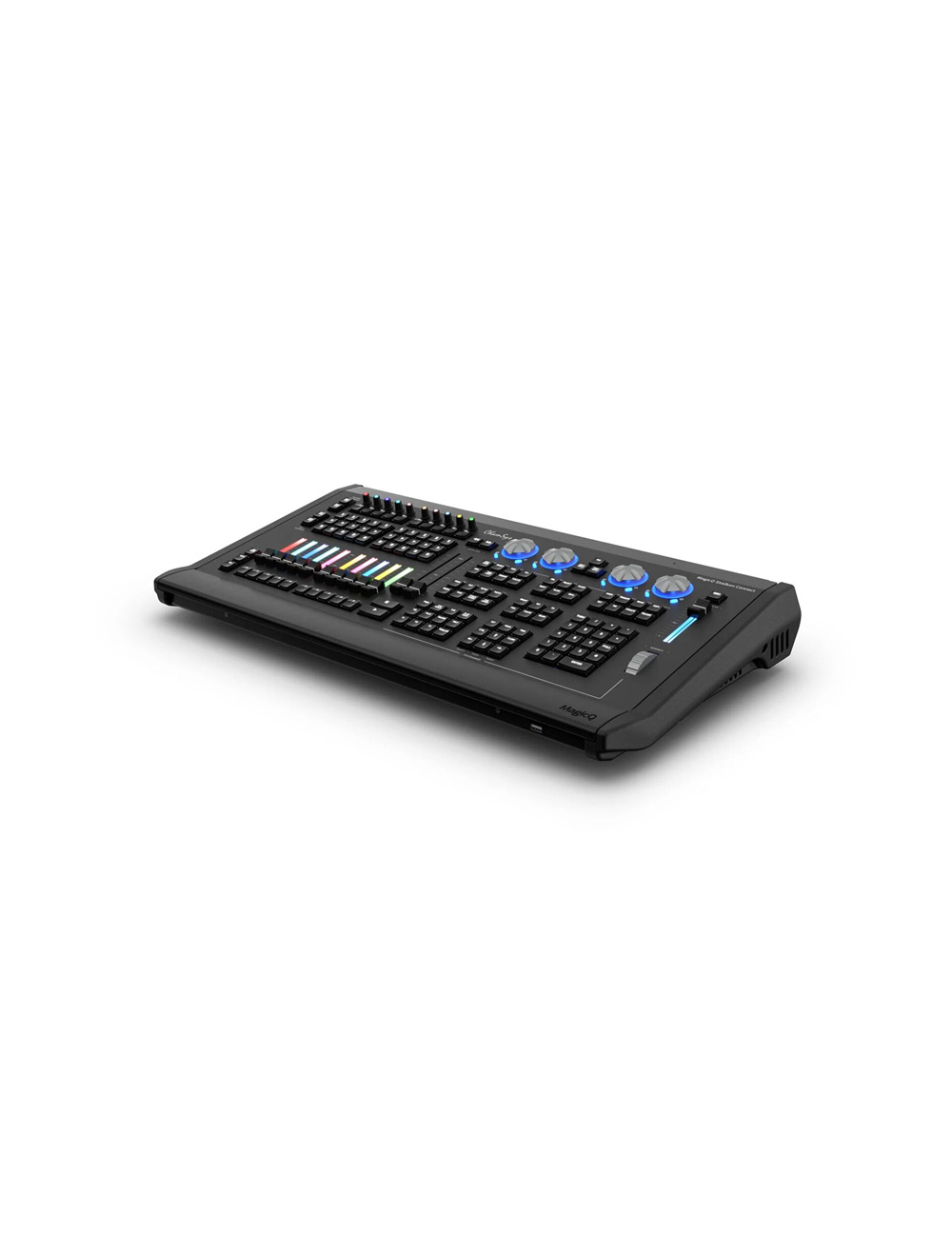

Chauvet Pro CHAMMQSTADIUMCONNECT MagicQ Stadium Connect

Overview
• 10 fully motorised fader playbacks
• 10 encoder playbacks
• RGB illumination of playbacks
• Backlit buttons
• 64 universes direct from MagicQ for Art-net/sACN output
• 256 visualisation universes for pre-programming
• Network port acts as network interface for PC
• Dual 100mm Manual Cross Faders
• 2 dedicated high power USBs for charging of phones/tablets

Hardware Specifications
• Direct DMX Outputs: 4
• Motorised Playbacks: 10
• Encoder Playbacks: 10
• Total no of Playbacks: 20 (10+10)
• Dual Cross Faders: Yes
• Attribute Encoders: 4
• Backlit Keys: Yes
• Illuminated Playback/Encoders with RGB control: Yes
• Intensity Wheel: 1
• Network Ports: 1
• USB Ports : 4
• Audio Input Sound to Light: Yes
• MIDI Ports 1 in and out: Yes
• LTC Timecode Ports in and out: Yes
• 10Scene Port: 1
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): 360w

Software Specifications
• Universes direct from software (via Artnet/sACN/Pathport): 64
• Visualisation Universes: 256
• Max Number of DMX Channels: 32,768
• Max Number of Fixtures Supported: 32,768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux

Included Accessories
• Dual Colour Desk lights: 2
• Dust cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1
• USB Cable: 1

Flight Cased Weights and Dimensions
• Width: 761mm (29.9″)
• Depth: 467mm(18.3″)
• Height: 197mm (7.7″)
• Weight (stadium connect in flightcase): 20.0kg (44.1lbs)

Stadium Connect Weights and Dimensions
• Width: 680mm (26.8″)
• Depth: 364mm (14.3″)
• Height: 85mm (3.3″)
• Weight: 8.7kg (19.1bs)
