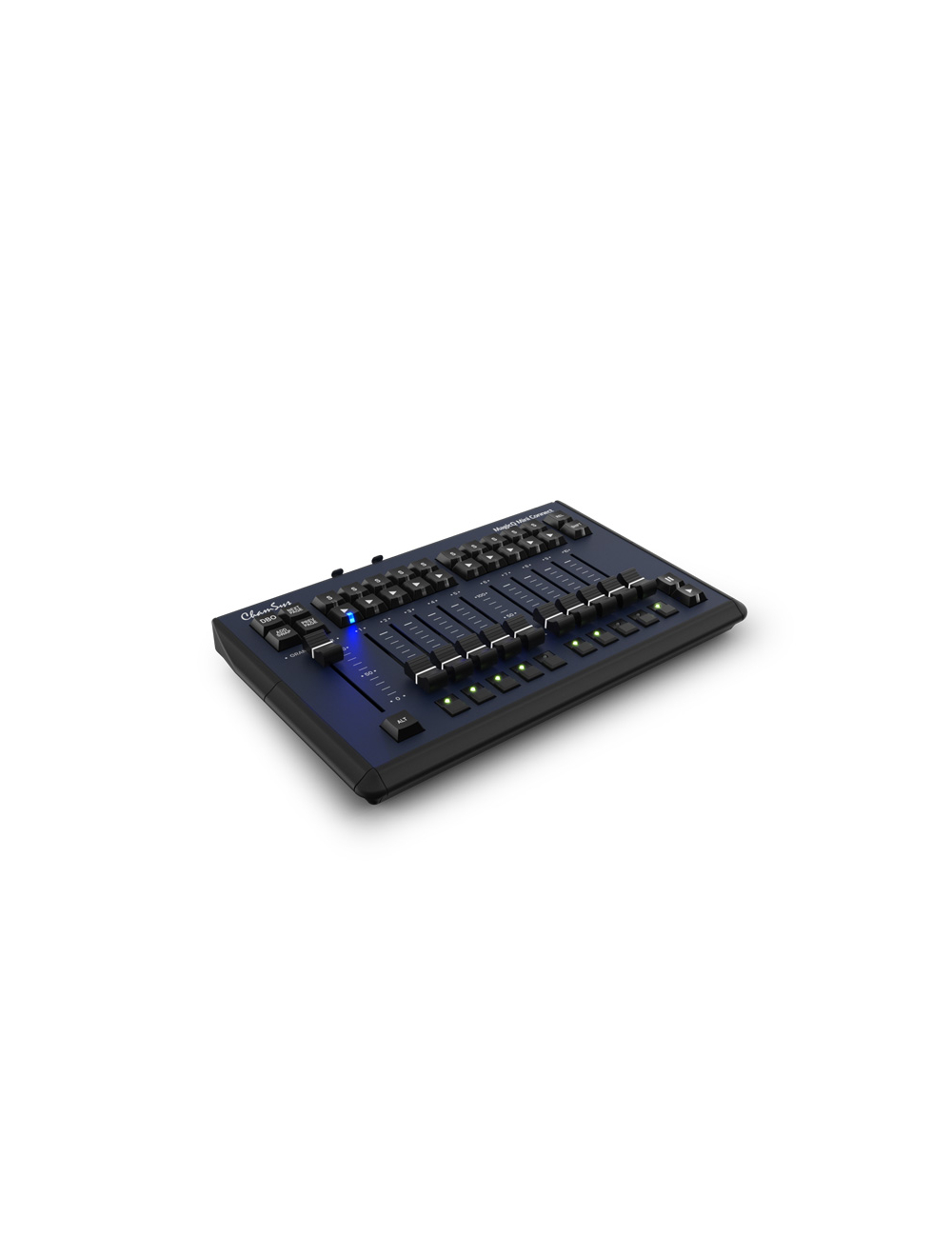

Chauvet Pro CHAMMQMINICONNECT MagicQ Mini Connect

The MagicQ Compact Mini Connect is a highly portable USB 3 powered control surface that couples physical playback with the power of MagicQ software.

$1,565.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMQMINICONNECT

Details

Overview
• 10 Playbacks
• USB Powered
• Connects to Free MagicQ Software – PC, Mac or Linux
• 1 Direct DMX Output supporting RDM
• Kensington Lock Slot
• Includes Lightweight Durable Case
• 64 Universes via Artnet/sACN

Hardware Specifications
• Fader Playbacks: 10
• Direct DMX Outputs: 1
• Network Ports: 1
• Kensington Security Lock Fixing: 1
• USB Connector: Yes – USB-C
• USB 3 Powered: Yes (Must be connected to a USB 3.0 or higher port)
• Lightweight Durable Case Included

Software Specifications
• Universes: 64
• Max Number of DMX Channels: 32768
• Max Number of Fixtures Supported: 32768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (Each different content)
• Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux

Included Accessories
• USB A-C Cable: Yes
• Lightweight Durable Case: Yes

Boxed Weights and Dimensions
• Width: 380mm (15 inches)
• Depth: 100mm (3.94 inches)
• Height: 300mm (11.8 inches)
• Weight: 3.0kg (6.6 lb)

Console Weights and Dimensions
• Width: 327mm (12.9 inches)
• Depth: 204mm (8.03 inches)
• Height: 45mm (1.78 inches)
• Weight: 1.85kg (4 lb)
