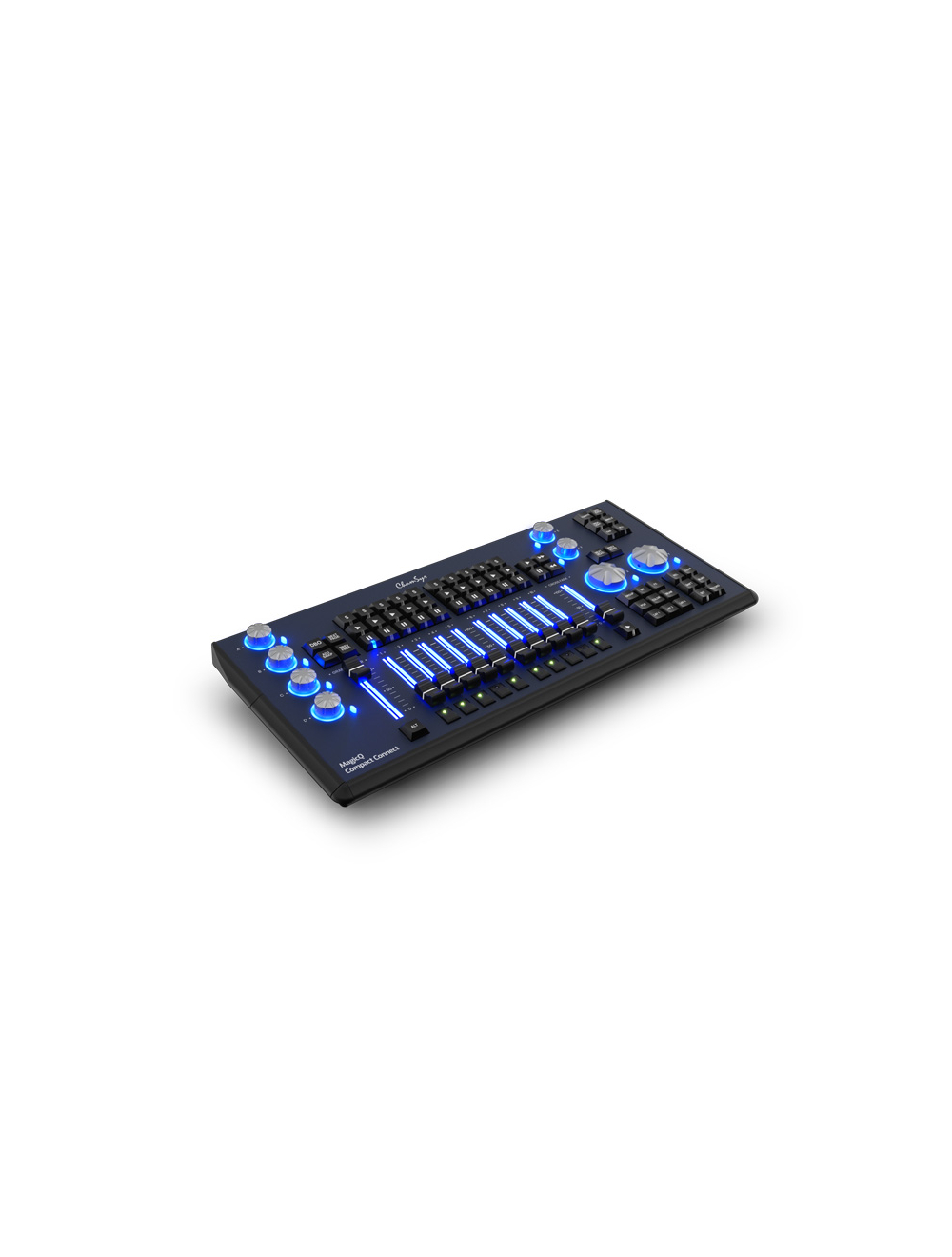

Chauvet Pro CHAMMQCOMPACTCONNECT MagicQ Compact Connect

The MagicQ Compact Connect is a lightweight USB control surface that connects to your PC or Mac to control lighting, media, and LEDs. Small enough to travel inside hand luggage, the portable Compact Connect is packed with powerful features. It has 2 direct DMX512 outputs and sends up to 64 universes of ArtNet and sACN directly from its onboard network port without the need for additional licenses or dongles.

$3,500.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMQCOMPACTCONNECT

Details

Overview
• 10 Playbacks
• 8 Attribute Encoders
• 2 Direct DMX Outputs supporting RDM
• Illuminated Playbacks
• Connects to Free MagicQ Software – PC, Mac or Linux
• 64 Universes via Artnet/sACN
• Audio Input
• 10Scene Input
• Fits Hand Luggage Restrictions

Hardware Specifications
• Direct DMX Outputs: 2
• Fader Playbacks: 10
• Attribute Encoders: 8
• USB Ports: 5 (4 USB-A output, 1 USB-C input)
• Network Ports: 1
• Audio Input: (1 channel, 7 band): Yes
• 10Scene Input: Yes
• Kensington Security Lock Fixing: Yes
• Working Light Port: Yes
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): 15w

Software Specifications
• Universes: 64
• Max Number of DMX Channels: 32768
• Max Number of Fixtures Supported: 32768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux

Included Accessories
• USB A-C Cable: 1
• Dual Colour Desk lights: 1
• Dust Cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1

Boxed Weights and Dimensions
• Width: 630mm (24.8 inches)
• Depth: 360mm (14.2 inches)
• Height: 230mm (9.1 inches)
• Weight: 5.5kg (12.1 lb)

Console Weights and Dimensions
• Width: 522mm (20.5 inches)
• Depth: 230mm (9 inches)
• Height: 65mm (2.5 inches
• Height (top of encoders): 78mm (3 inches)
• Weight: 3.65kg (8 lb)

Flight Cased Weights and Dimensions
• Width: 630mm (24.8 inches)
• Depth: 360mm (14.2 inches)
• Height: 230mm (9.1 inches)
• Weight: 8.0kg (17.7 lb)
