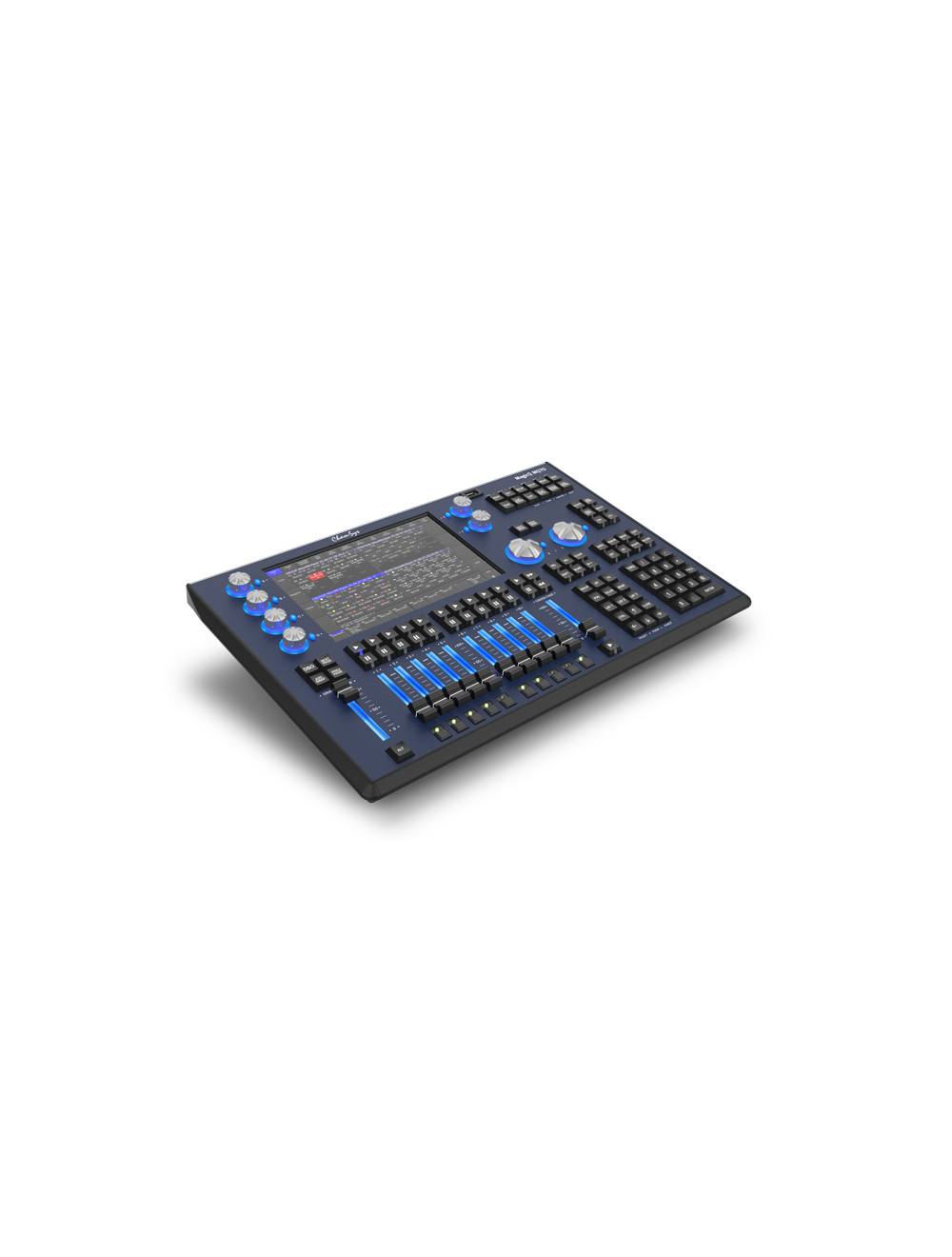

Chauvet Pro CHAMMQ70 MagicQ MQ70 Compact Console

Overview
• 24 universes direct from the console, expandable to 48
• Fits as carry on luggage for all major budget airlines
• High resolution 10.1″ multi touch display
• In built WiFi for quick connection to MagicQ Remote App
• UPS inbuilt to the console
• RDM support via direct DMX Ports and Network
• Silent operation, ideal for theatres

Hardware Specifications
• Universes direct from the console (via Artnet/sACN/Pathport): 24 *Expandable to 48
• Direct DMX Outputs: 4
• RDM Support: Yes
• In-built WiFi: Yes
• Playbacks: 10
• Grand Master Fader: 1
• Crossfade Master Fader: 1
• Attribute Encoders: 8
• Dual Colour Illuminated Playbacks: Yes
• Illuminated Encoders: Yes
• Network Ports: 3
• Inbuilt 10.1″ HD Multi-Touch Display: 1
• External Monitor up to 1920×1200 Resolution – HDMI: 1
• USB Ports: 5
• Audio Input (1 channel, 7 band): Yes
• Audio Output: Yes
• MIDI Ports: 1 in, 1 out
• LTC Timecode In Port: 1
• Remote Input Port: 1
• Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): 35w

Software Specifications
• Max Number of DMX Channels: 12288 *expandable to 24576
• Max Number of Fixtures Supported: 12288 *expandable to 24576
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Numbers of Shows: Virtually unlimited

Boxed Weights and Dimensions
• Width: 680mm (26.7 inches)
• Depth: 290mm (11.4 inches)
• Height: 500mm (19.6 inches)
• Weight: 10kg (22 lb)

Included Accessories
• Dual Colour Desk light: 1
• Dust cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1

Console Weights and Dimensions
• Width: 525mm (20.6 inches)
• Depth: 350mm (13.7 inches)
• Height: 60mm (2.3 inches)
• Weight: 7kg (15.4 lb)
