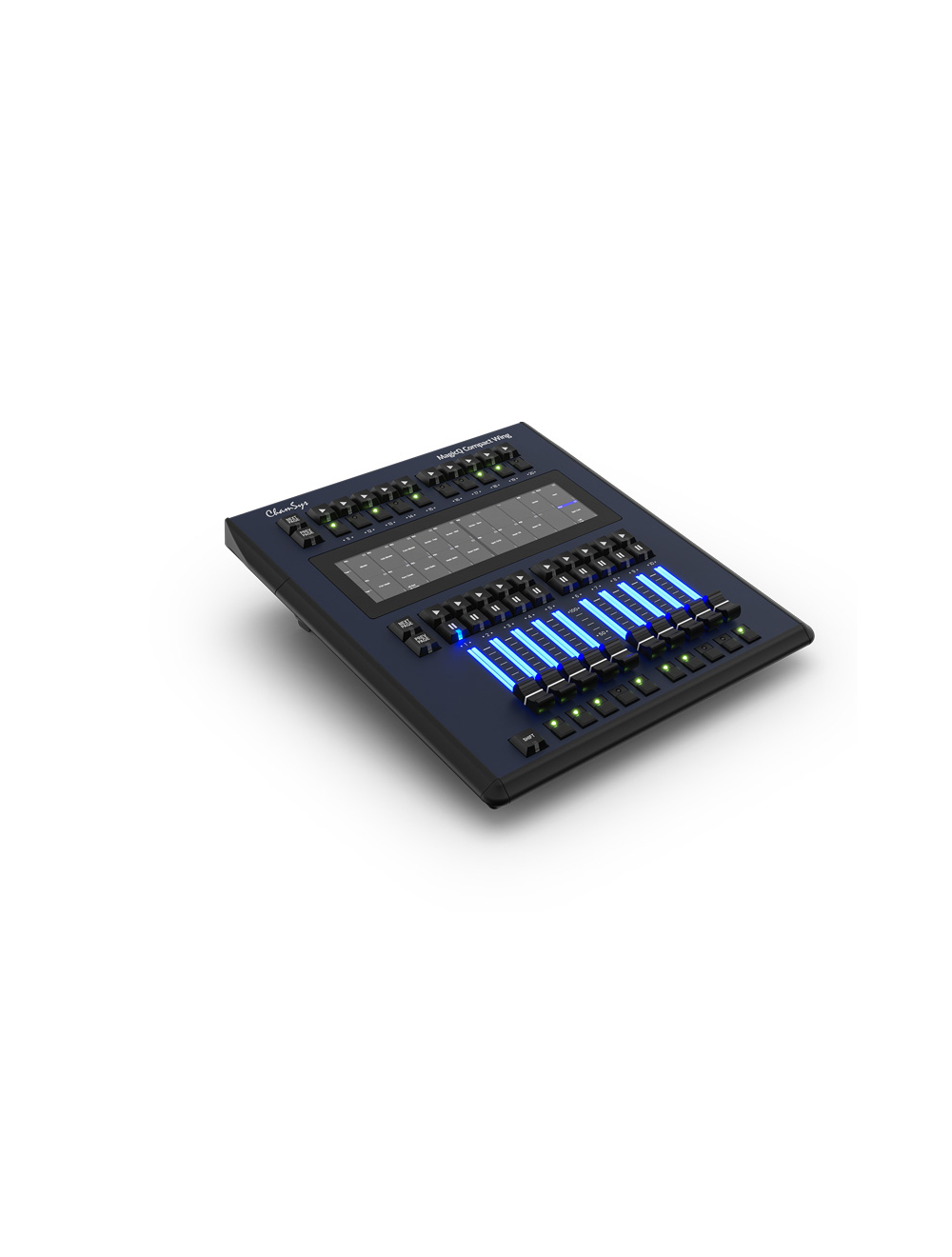

Chauvet Pro CHAMMQCOMPWING MagicQ Compact Wing

The new MagicQ Compact Wing enables MagicQ users to elegantly and efficiently expand their number of available physical playbacks. Styled to pair with MagicQ Compact consoles, this versatile expansion wing is compatible with all current MagicQ Console and PC Systems.

$3,500.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMQCOMPWING

Details

Overview
• 10 Fader Playbacks
• 10 Execute Playbacks
• Full Colour Touch-Screen Attribute Display
• Connect to MagicQ Compact and full Size Consoles
• Connect to MagicQ PC or MacOS Systems
• Upto 2 Compact Wings per System
• Separate Page/Up Down buttons
• USB Connection
• Dimmable Dual Colour Working Light

Hardware Specifications
• Fader Playbacks: 10
• Executor Playbacks: 10
• Total Number of Playbacks: 20
• Touch-Screen Display: Yes
• Electronic Playback Legends: Yes
• USB Ports: 3 (1 USB-C In, 2 USB A Out)
• Kensington Security Lock Fixing: Yes
• Working Light Port: Yes
• Power Input: PowerCon True1 100-240 VAC

Software Specifications (When used with PC Systems)
• Universes: 64
• Max Number of DMX Channels: 32768
• Max Number of Fixtures Supported: 32768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (Each different content)

Included Accessories
• USB A-C Cable: 1
• Dual Colour Working Light: 1
• Dust Cover: 1
• PowerCon True1 Mains Cable: 1

Boxed Weights and Dimensions
• Length: 450mm (17.71 Inches)
• Width: 425mm (16.73 Inches)
• Height: 210mm (8.27 Inches)
• Weight: 5.5kg (12.13 Lbs)

Wing Weights and Dimensions
• Length: 314mm (12.36 Inches)
• Width: 350mm (13.78 Inches)
• Height: 60mm (2.36 Inches)
• Weight: 4.0kg (8.82 Lbs)

Flight Cased Weights and Dimensions
• Length: 486mm (19.13 Inches)
• Width: 404mm (15.9 Inches)
• Height: 214mm (8.43 Inches)
• Weight: 8.0kg (17.64 Lbs)
