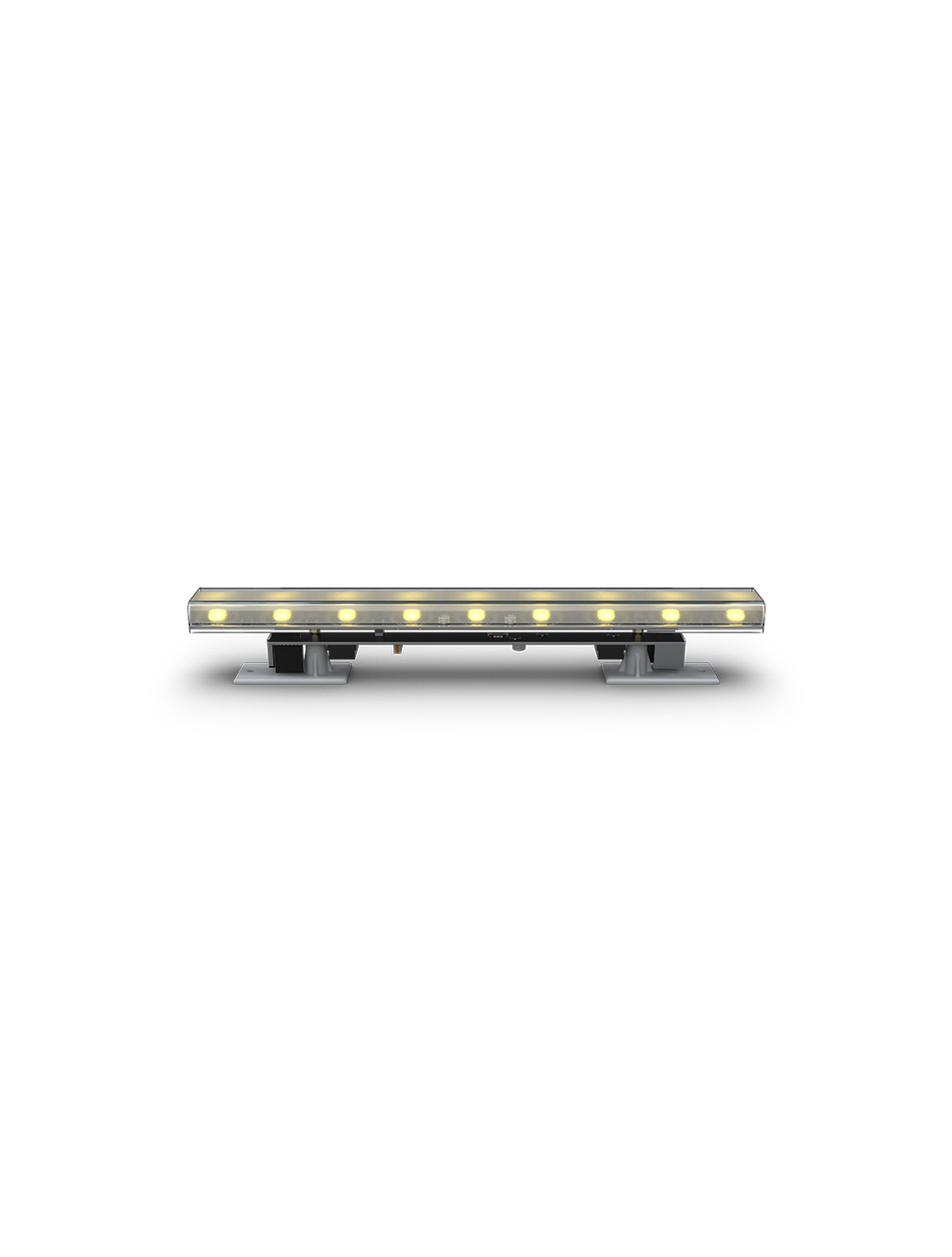

Chauvet Pro LOGICCVM LOGIC Cove LED Strip Medium - 2ft

Iluminarc Logic Cove M is a sleek and discreet architectural batten designed for permanent installation into tight spaces, behind decorative elements, or anywhere an accent of illumination is needed.

$511.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LOGICCVM

Details

Features:
• Light Source: 18 Quad-color RGBW LEDs at 2.5W
• LED Lifespan: 50,000 hours
• Native Beam Angle (Horizontal): 119.9º
• Lumen Output: 711
• Color Temperature Presets: 1,800K to 10,000K
• Control: Logic Drive 2X (required)
• Dimensions: 23.58 x 1.22 x 1.81 in (599 x 31 x 46 mm)
• Weight: 0.6 lb (0.3 kg)
• Lens Material: Clear Polycarbonate

Specifications:
• Light Source: 18 LED (quad-color RGBW) 2.5 W, (870 mA)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: Very Wide Filter
• Beam Angle: Open Optics: 121.9° (Horizontal), 123.1° (Vertical), Very Wide Filter: 142.3° (Horizontal), 136.4° (Vertical)
• Field Angle: Open Optics: 164.8°(Horizontal), 165.5° (Vertical), Very Wide Filter: 246.9° (Horizontal), 169.7° (Vertical)
• Cutoff Angle: Open Optics: 176.7°, Very Wide Filter: 287.4°
• Lumens: Open Optics: 922, Very Wide Filter: 688
• Iluminance: Open Optics: 11 lux @ 5 m, Very Wide Filter: 6 lux @ 5 m
• Efficacy At Full: Open Optics: 37 lm / W, Very Wide Filter: 28 lm / W
• Color Temperature Presets: 1800K - 10000K

Specifications

More Information
Part Number	LOGICCVM
Manufacturer	Chauvet
Lumens	492 Small \| 711 Medium
Color Temperature	RGBW
Rated Life	50,000 hours +
Dimmable	No
Dimensions	24.61 x 5.12 x 3.54
Length	24.61
Width	5.12
Height	3.54
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
UPC Code	781462221706
