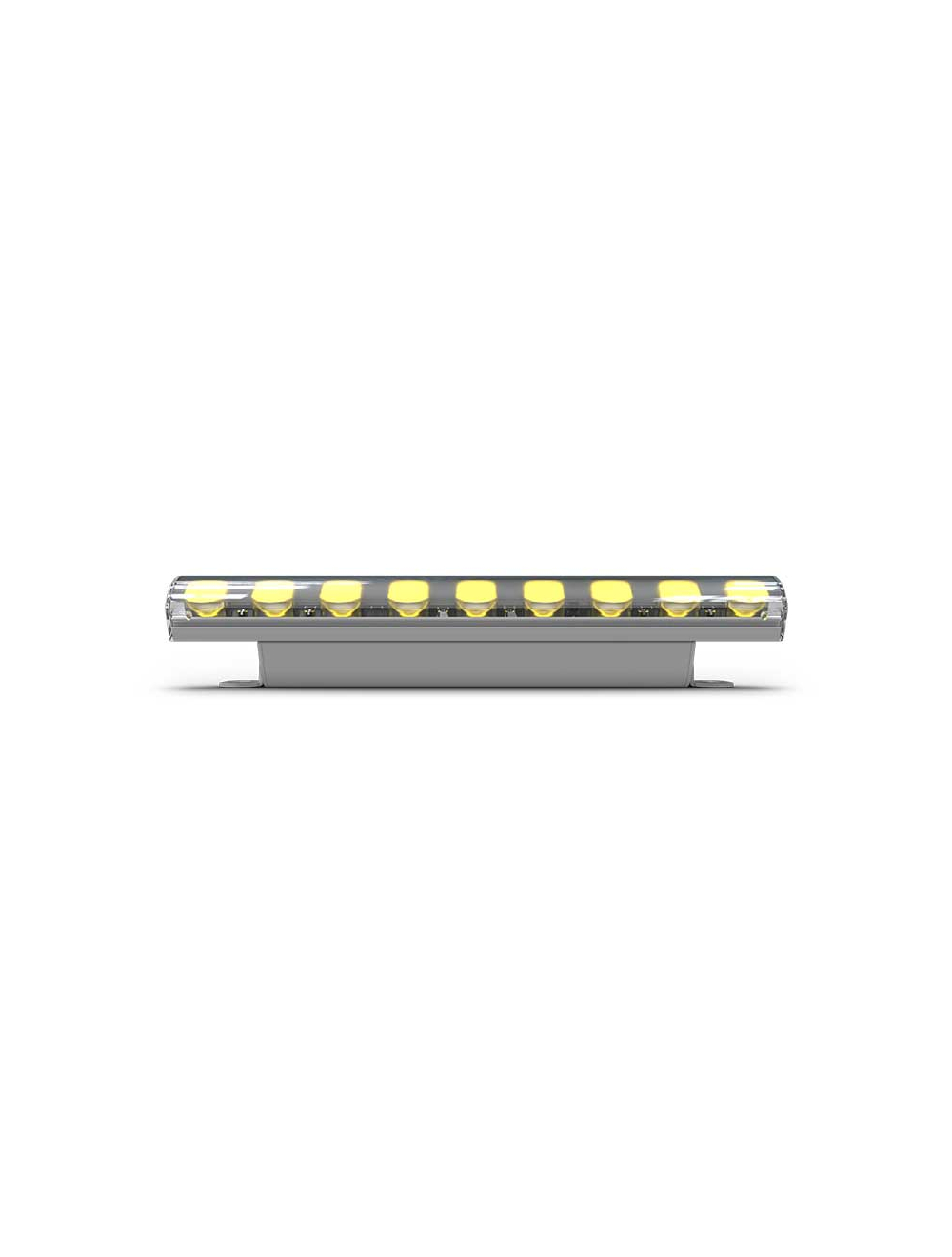

Chauvet Pro LOGICGZL LOGIC Graze Large - 4ft

Iluminarc LOGIC Graze is a compact wall graze luminaire designed to highlight smooth or textured surfaces with a throw distance up to 12 feet.

$792.50

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LOGICGZL

Details

Features:
• Light Source: 36 Quad-color RGBW LEDs at 2.5W
• LED Lifespan: 50,000 hours
• Native Beam Angle: 124.8º
• Lumen Output: 3,014
• Color Temperature Presets: 1,800K to 10,000K
• Control: Logic Drive 2X (required)
• Dimensions: 47.99 x 1.37 x 2.36 in (1,219 x 35 x 60 mm)
• Weight: 4.19 lb (1.9 kg)
• Lens Material: Clear Polycarbonate

Specifications:
• Light Source: 36 LED (quad-color RGBW) 2.5 W, (870 mA)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: Medium Filter
• Included Optics: Very Wide Filter
• Beam Angle: Open Optics: 125.3° (Horizontal), 124.8° (Vertical), Medium Optics: 41.1° (Horizontal), 28.6° (Vertical), Very Wide Filter: 51.5° (Horizontal), 47° (Vertical)
• Field Angle: Open Optics: 147.8° (Horizontal), 169.1° (Vertical), Medium Optics: 82.7° (Horizontal), 59.3° (Vertical), Very Wide Filter: 153.8° (Horizontal), 168.7° (Vertical)
• Cutoff Angle: Open Optics: 262.4°, Medium Optics: 137.6°, Very Wide Filter: 231.3°
• Lumens: Open Optics: 3,267, Medium Optics: 2,692, Very Wide Filter: 2,059
• Iluminance: Open Optics: 39 lux @ 5 m, Medium Optics: 171 lux @ 5 m, 44 lux @ 5 m
• Efficacy At Full: Open Optics: 66 lm / W, Medium Optics: 54 lm / W, Very Wide Filter: 41 lm / W
• Color Temperature Presets: 1800K - 10000K

Specifications

More Information
Part Number	LOGICGZL
Manufacturer	Chauvet
Lumens	749 Small \| 3014 Large
Color Temperature	RGBW
Rated Life	50,000 hours +
Dimmable	No
Dimensions	8.86 x 75.59 x 19.88
Length	8.86
Width	75.59
Height	19.88
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
UPC Code	781462220815
