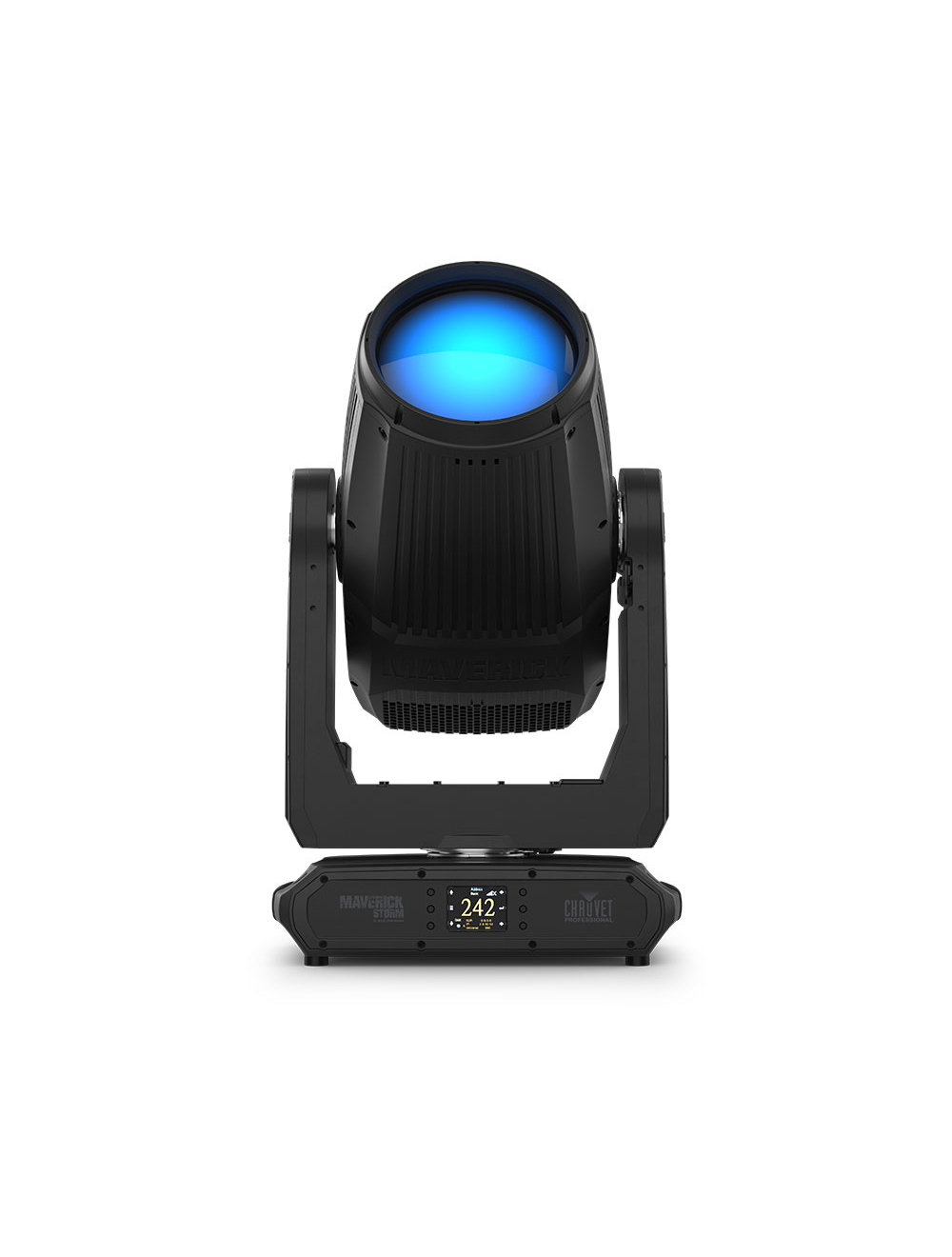

Chauvet Pro MAVERICKSTORM4SOLOWASHSP Maverick Storm 4 Solo Wash (with SIP) 1 LEDs 1250 Watt 100-240 Volt Yoke Single Source Wash Fixture LED

AT A GLANCE
• Fully featured, IP65 1,250 W LED yoke single source wash fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 9.5: 1 zoom, 1 rotating gobo wheel, 1 animation wheel, frost, and iris
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• 1 rotating, indexing and interchangeable slot and lock gobo wheel with geometric shapes
• An animation wheel for kinetic textured effects
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 7.1° to 74.1 zoom range for variable beam sizes
• Iris, Animation wheel, and frost for beam shaping effects
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB-C slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost

SPECIFICATIONS
OPTICAL
• Light Source: 1 LEDs (CW) 1250 W, (35.84A), 7464 K, 50,000 hours life expectancy.
• Color Temperature (at full): 7252K
• Front lens diameters: 225 mm
• Cutoff Angle: 15.7° to 74.1°
• Zoom Range 7.1° to 74.1°
• Lumens: 78,300
• Illuminance (6.8°): 162,410 lux @ 5 m
• Illuminance (71.6°): 4,798 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: Colors: 5 (including CRI) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag, color correction
• Gobos (1): 6 + open (6 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 26 mm (image), 0.6 mm (max. thickness)
• Effect Wheel: 1 effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Frost: Motorized
• Strobe Rate: 0 to 25.6Hz
• Move-in-Black: Yes
• Dim Curves: 5

CONSTRUCTION / PHYSICAL
• Dimensions: 29.92" x 22.83" x 30.04"
• Weight: 154.99 lb (70.30 kg)
• Exterior Color: Black
• Housing Material: Magnesium Aluminum die-cast, High-impact flame-retardant polymer, Steel

CONNECTIONS
• Power Connection: Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)
• Software Update: USB-C

CONTROL
• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 31 or 46
• Art-Net Channels: 31 or 46
• Modes/Personalities: 2 personalities (31ch, 46ch)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1720 W, 14.67 A @ 120 V, 60 Hz
• Power and Current: 1690 W, 8.35 A @ 208 V, 60 Hz
• Power and Current: 1680 W, 7.48 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED
• Maverick Storm 4 Solo Wash
• Seetronic Powercon IP65
• (2) 140-D Omega bracket with mounting hardware
• (2) handles and (8) screws

OPTIONAL ACCESSORIES
• Clamps
• Neutrik powerCON cables
• Neutrik etherCON cables
• DMX Cables
• Flight Cases
• IP Tester
• CP Rack
