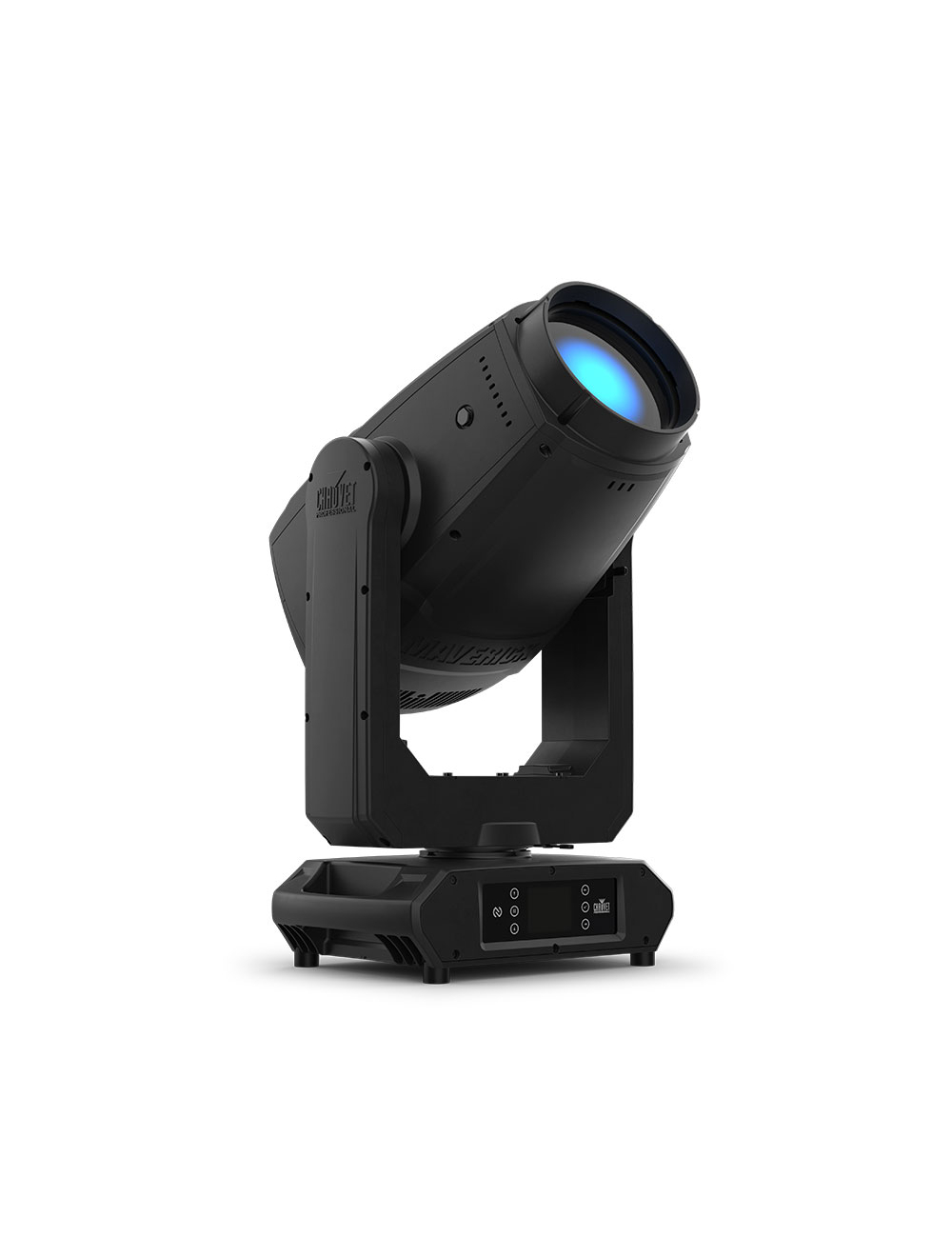

Chauvet Pro MAVERICKSTORM3PROFILE Maverick Storm 3 Profile 1 LEDs 620 Watt 100-240 Volt IP65 Compact and Lightweight LED

At a Glance
• Fully-featured, compact, and lightweight IP65 620 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 18:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, and integrated sun shield
• 16-bit dimming of master dimmer for smooth control of fades
• 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• One rotating, indexing, and interchangeable slot and lock gobo wheel
• One static gobo wheel
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 3.5° to 57.7° (18:1) zoom range for variable beam sizes
• Iris, 5-facet prism and frost for beam control
• True 1 compatible power input
• Integrated sun shield for protecting the optical path from sunlight when the fixture is off
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
• NFC for quick and easy fixture setup in the shop or in the field

Specifications
Optical
• Light Source: 1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 7062 K
• CRI: 72.3
• CRI with CRI Filter: 90.2
• Front Lens Diameter: 165 mm
• Beam Angle: 3.5° to 51.5°
• Field Angle: 4.1° to 54.3°
• Cutoff Angle: 4.3° to 57.7°
• Zoom Range: 3.5° to 57.7°
• Lumens – Output: 34,500 lm
• Illuminance (3.5°) 165,664 lux @ 5 m
• Illuminance (56.7°) 2,173 lux @ 5 m
• PWM Frequency: 600Hz, 1500Hz, 2000Hz, 65,000Hz

Dynamic Effects
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY wheel, CTO wheel
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (glass), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
• Framing Shutter rotation: +/- 60° rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Animation: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move-in-Black: Yes
• Dim Curves: 4

Construction / Physical
• Dimensions: 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
• Weight: 69 lb (31.3kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Connections
• Power Connection: Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Control
• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 34 or 50
• Art-Net Channels: 34 or 50
• Modes/Personalities: 2 personalities (34, 50)

Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1020 W, 8.5 A @ 120 V, 60 Hz
• Power and Current: 1020 W, 4.82 A @ 208 V, 60 Hz
• Power and Current: 1010 W, 4.39 A @ 230 V, 50 Hz
• Fuse: F15 AL, 250 V

Battery

Certifications / Qualifications
• CE, MET, FCC, CB, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

What's Included
• Maverick Storm 3 Profile
• Seetronic Powerkon IP65 power cord to Edison
• Omega bracket with mounting hardware
