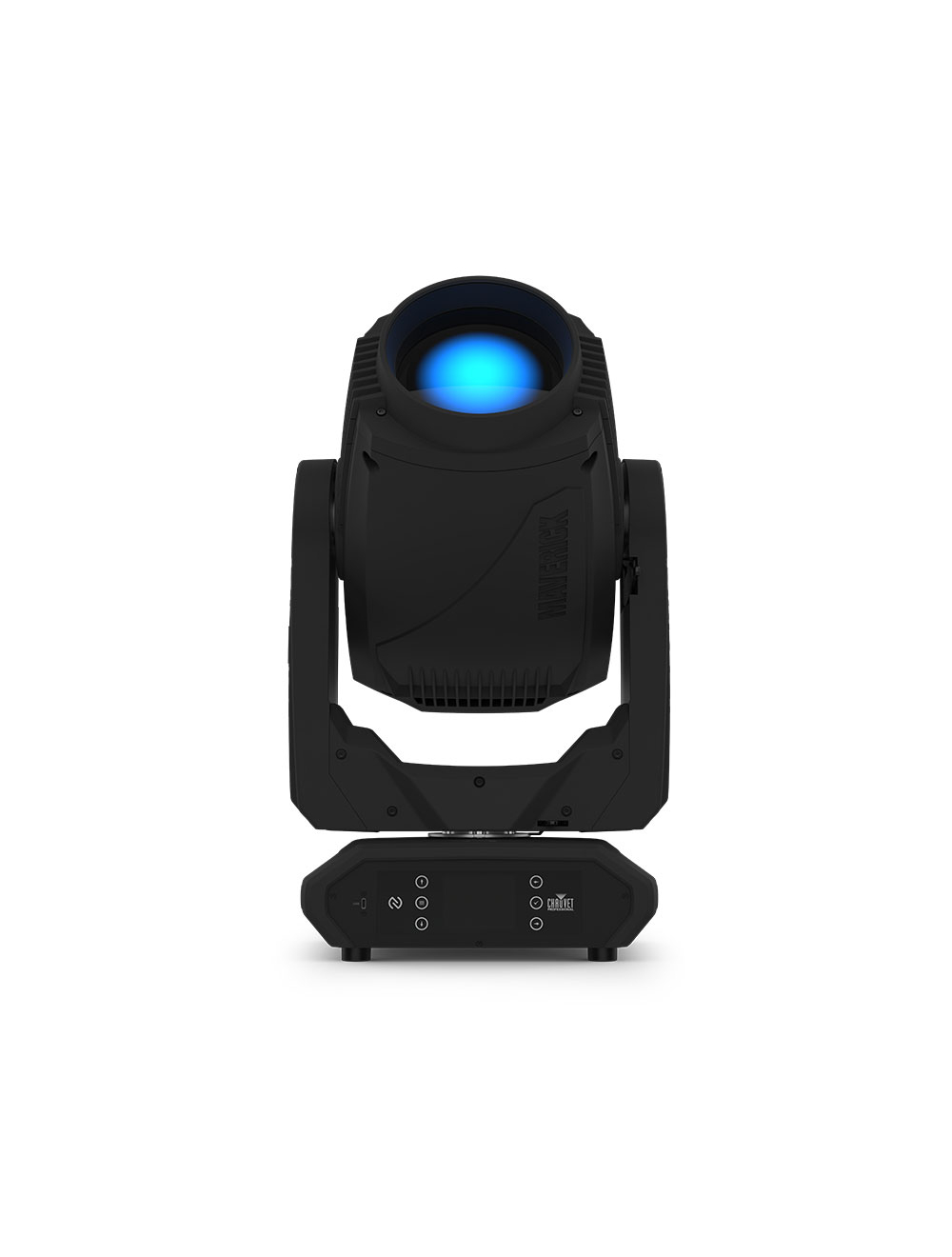

Chauvet Pro MAVERICKFORCEXPROFILE Maverick Force X Profile 1 LED 520 Watt 100-240 Volt Compact Powerful LED Moving-Head Fixture with High Output Performance

Highlights
• Fully featured, compact and lightweight 520 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
• 16-bit dimming of master dimmer for smooth control of fades
• 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
• Variable CMY color mixing system to create a wide pallet of colors
• DMX, CRMX, sACN, and Art-Net for full flexibility of control options
• RDM-enabled for remote addressing and trouble shooting
• 3.5° to 57.3° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• 4 blade framing shutters with dual axis movement, full wipe, and 120-degree total module rotation
• True-1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows data to pass even if fixture power is lost
• NFC for quick/easy fixture setup in the shop or in the field

Specifications
Optical
• Light Source: 1 LEDs (CW) 520 W, (4.2A), 6966 K, 50,000 hours life expectancy.
• Color Temperature (at full): 6966 K
• Front lens diameters: 145 mm
• CRI: 72.2
• CRI with CRI filter: 90
• Beam Angle: 3.4° to 52.2°
• Field Angle: 3.7° to 55.3°
• Cutoff Angle: 3.8° to 57.3°
• Zoom Range: 3.5° to 57.3°
• Lumens - Output: 18,963
• Illuminance (3.4°) : 104,429 lux @ 5 m
• Illuminance (57.3°) : 1,219 lux @ 5 m
• Selectable PWM : 600Hz, 1500Hz, 2000Hz 65000Hz
• DMX Channels:1024 + 512 via ArtNet
• DMX Connectors:3-pin XLR
• Input Voltage:5 V USB
• Weight:0.4 lb (0.2 kg)

Dynamic Effects
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY wheels
• Color Macros: CMY macros
• Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (9 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 23.9 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: Yes
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move-in-Black: Yes
• Dim Curves: 5

Construction / Physical
• Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight: 50 lbs (23.1 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

Connections
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (power): 5 ft (1.5 m)

Control
• Control Protocol: DMX, Art-Net, sACN, CRMX, NFC
• DMX Channels: 31 or 47
• Art-Net Channels: 31 or 47
• Modes/Personalities: 2 personalities (31, 47)

Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V;4 units @ 230 V
• Power and Current: 595 W, 5.98 A @ 120 V, 60 Hz
• Power and Current: 576 W, 2.82 A @ 208 V, 60 Hz
• Power and Current: 580 W, 2.58 A @ 230 V, 50 Hz

Battery
• Battery type: Lithium Ion (display screen backup)
• Rechargeable: Yes
• Battery Charge Time: 5 hours
• Battery Life: 1 hours
• Battery Power: 3.7V, 500 mAh

Certifications / Qualifications
• CE, MET, FCC, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
• CE, MET, FCC, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Optional Accessories
• Clamps: CTC-50HC, CTC-50G, CTC-50CBLK, CTC 50HCN, CTC-50HCNBLK
• RIGLINK POWERKON CABLES
• RIGLINK TR1 CABLES
• DMX Cables
• Flight Cases
• CP Rack
• PowerStream 4 IP
