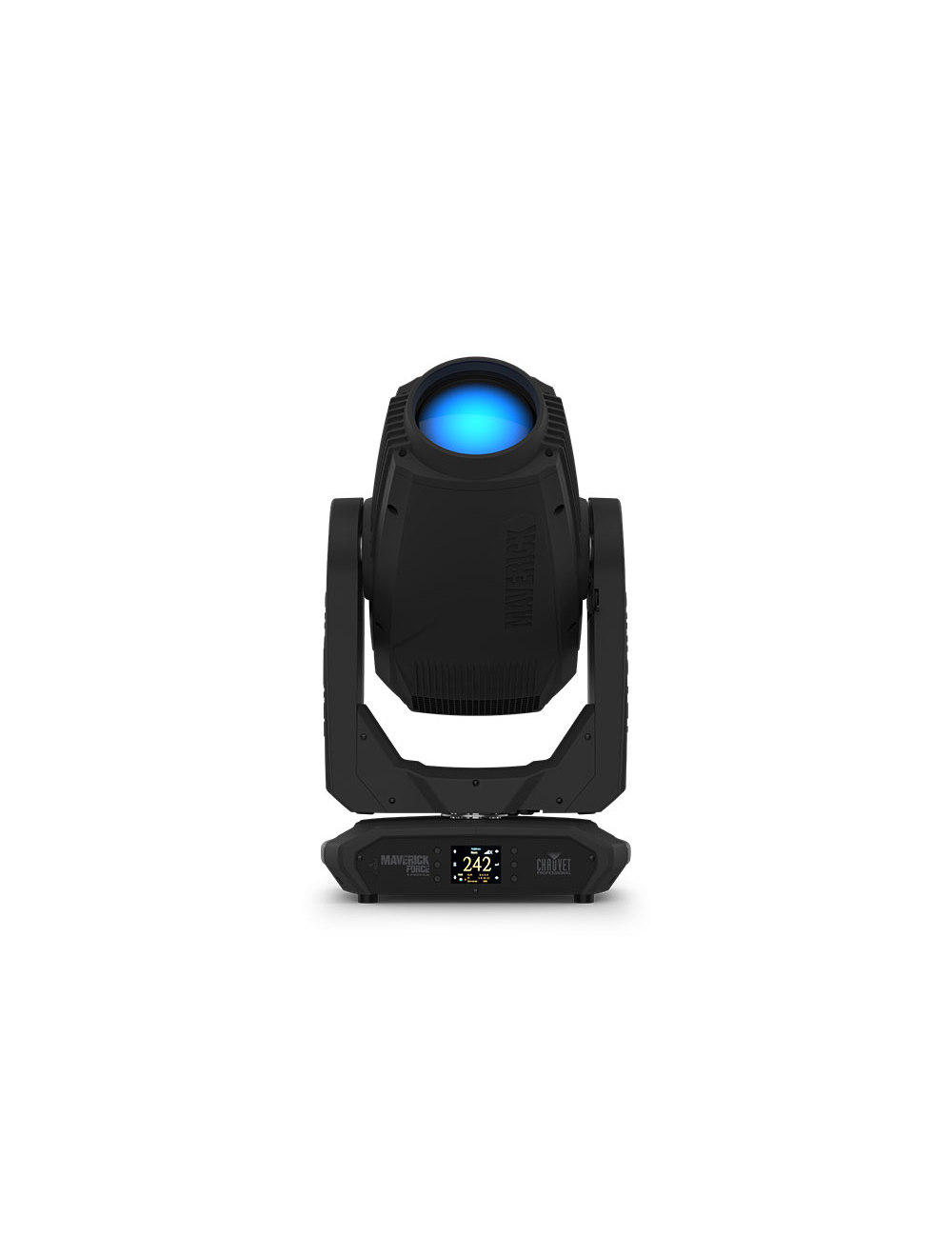

Chauvet Pro MAVERICKFORCE3PROFILE Maverick Force 3 Profile 1 LED 915 Watt 100-240 Volt Fully Featured LED with Four Blade Framing Shutter

AT A GLANCE
• Full featured 915 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 10: 1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• Independently layerable five facet linear and five facet round prisms for increased prism options
• One rotating and one static gobo wheel for dynamic texture possibilities
• Independent light and medium frosts for beam control
• + or – 60 degree rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 4.9° to 53.9° zoom angle for variable beam sizes
• Three menu presets and preset cross load for decreased shop setup time
• True 1 compatible power input
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation.
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.

SPECIFICATIONS
OPTICAL
• Light Source: 1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 7228 K
• CRI: 70.9
• CRI with CRI Filter: 89.4
• Front Lens Diameter: 160 mm
• Beam Angle: 4.9 ° to 42.8°
• Field Angle: 5.8° to 49.4°
• Cutoff Angle 6.5° to 53.6°
• Zoom Range: 4.9° to 53.9°
• Lumens – Source: 62,000
• Lumens – Output: 40,906
• Illuminance (4.9°) 130,582 lux @ 5 m
• Illuminance (53.9°) 3,792 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags
• Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open glass, static, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (static): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 blades, each with dual axis movement.
• Framing Shutter rotation: +/- 60° rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Linear Facets, motorized, rotating
• Prism: 5 Circular Facets, motorized, rotating
• Strobe Rate: 0 to 26 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL
• Dimensions: 22.05" x 20.28" x 35.04"
• Weight: 96.12 lb (43.60 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 37 or 53
• Art-Net Channels: 37 or 53
• Modes/Personalities: 2 personalities (37, 53)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1320 W, 11.29 A @ 120 V, 60 Hz
• Power and Current: 1270 W, 6.32 A @ 208 V, 60 Hz
• Power and Current: 1260 W, 5.76 A @ 230 V, 50 Hz
• Fuse Size: F20 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC,UKCA
• IP Rating: IP20, dry location
• Noise Level (Idle): 38.1 dB(A) @ 1 m
• Noise Level (Max): 40.3 dB(A) @ 1 m
• Noise Level (ECO): 36.6 dB(A) @ 1 m
• Noise Level (Auto): 39.8 dB(A) @ 1 m
• Noise Level (Full): 47.1 dB(A) @ 1 m
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED
• Maverick Force 3 Profile
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
• Clamps
• Barn Doors
• Neutrik powerCON cables
• Neutrik etherCON cables
• DMX Cables
• Flight Cases
• CP Rack
