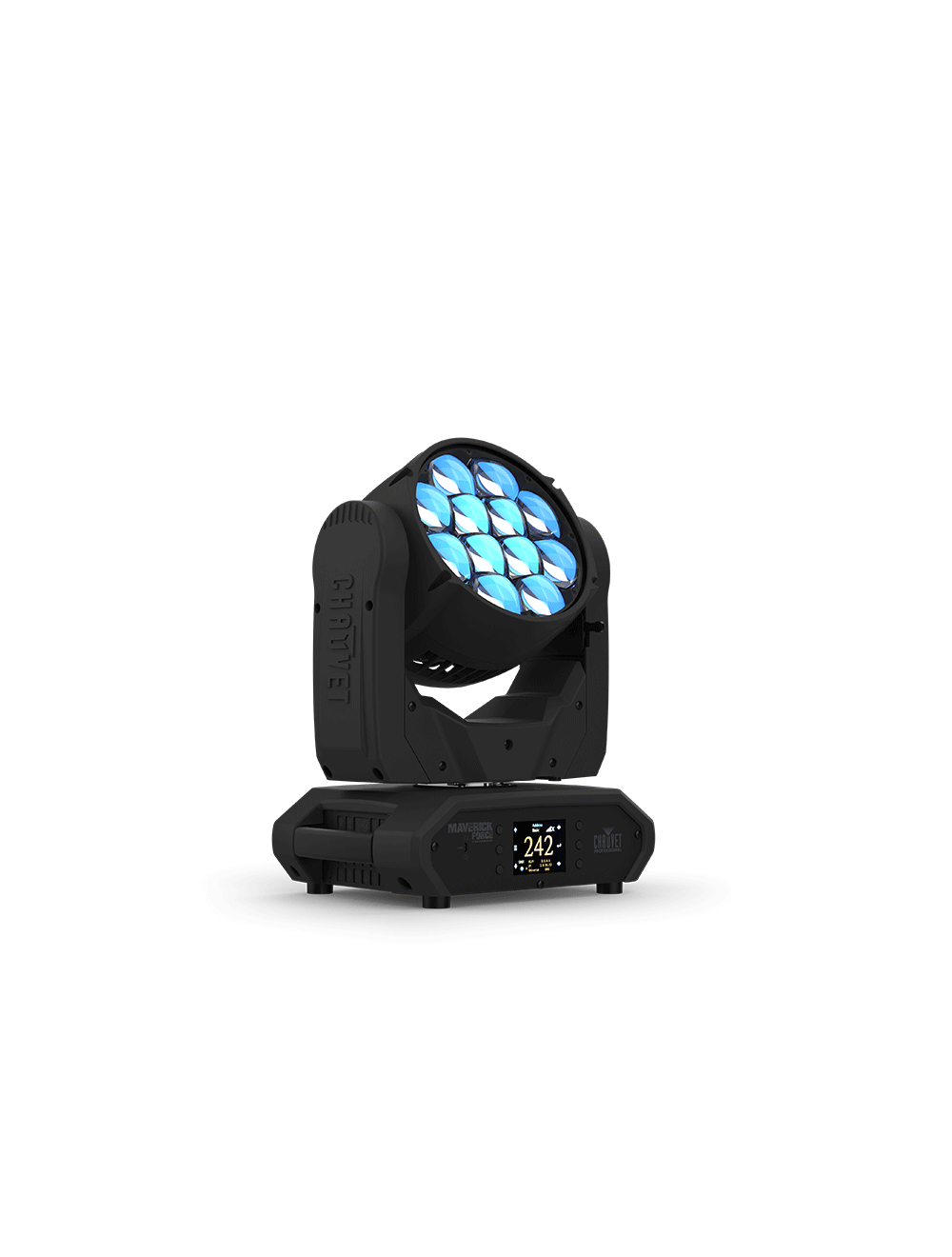

Chauvet Pro MAVERICKFORCE2BEAMWASH Maverick Force 2 BeamWash 12 LEDs 540 Watt 100-240 Volt Fully featured LED

AT A GLANCE
• Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• Virtual Color wheel with instantaneous access to a wide array of options
• Built in virtual gobo wheel with background colors for impressive atmospheric effects
• Fast movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations
• DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 3.7° to 44.1 zoom range for variable beam sizes
• User selectable calibrated white for 7500 K at full output
• True 1 compatible power input
• USB-C software update port
• Battery backup display with auto rotate depending on fixture orientation
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

SPECIFICATIONS
OPTICAL
• Light Source: 12 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy
• Color Temperature (range): 2700 to 8000 K
• Beam Angle: 3.7° to 33.6°
• Field Angle: 5.8° to 44.1°
• Cutoff Angle: 6.5° to 48.6°
• Zoom Range: 3.7° to 44.1°
• Lumens – Source: 10,800
• Lumens – Output: 9,183
• Illuminance (3.7°) : 41,355 lux @ 5 m
• Illuminance (45.1°) : 1,267 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL
• Dimensions: 18.50" x 12.60" x 16.54"
• Weight: 33.07 lb (15.00 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Seetronic Powerkon IP65
• Power Input/Output: Seetronic Powerkon IP65
• Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX
• DMX Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
• Art-Net/sACN Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
• DMX Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
• DMX Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
• Art-Net/sACN Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
• Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
• Modes/Personalities: 8 personalities (20ch, 25ch, 68ch, 122ch or 146ch 8ch-36ch, 20ch-48ch, 26ch-96ch)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 620 W, 5.23 A @ 120 V, 60 Hz
• Power and Current: 603 W, 2.96 A @ 208 V, 60 Hz
• Power and Current: 600 W, 2.68 A @ 230 V, 50 Hz
• Breaker Size: F10 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, CB, UKCA
• Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Maverick Force 2 BeamWash
• Seetronic Powerkon IP65 power cord
• 2 140Dmm Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Professional Clamps : CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• IP Rated Seetronic® Powerkon Extensions
• UPLOAD 08 software uploader
• Micro T-1 TRX G6 WDMX Transceiver
• FLIGHT CASE
