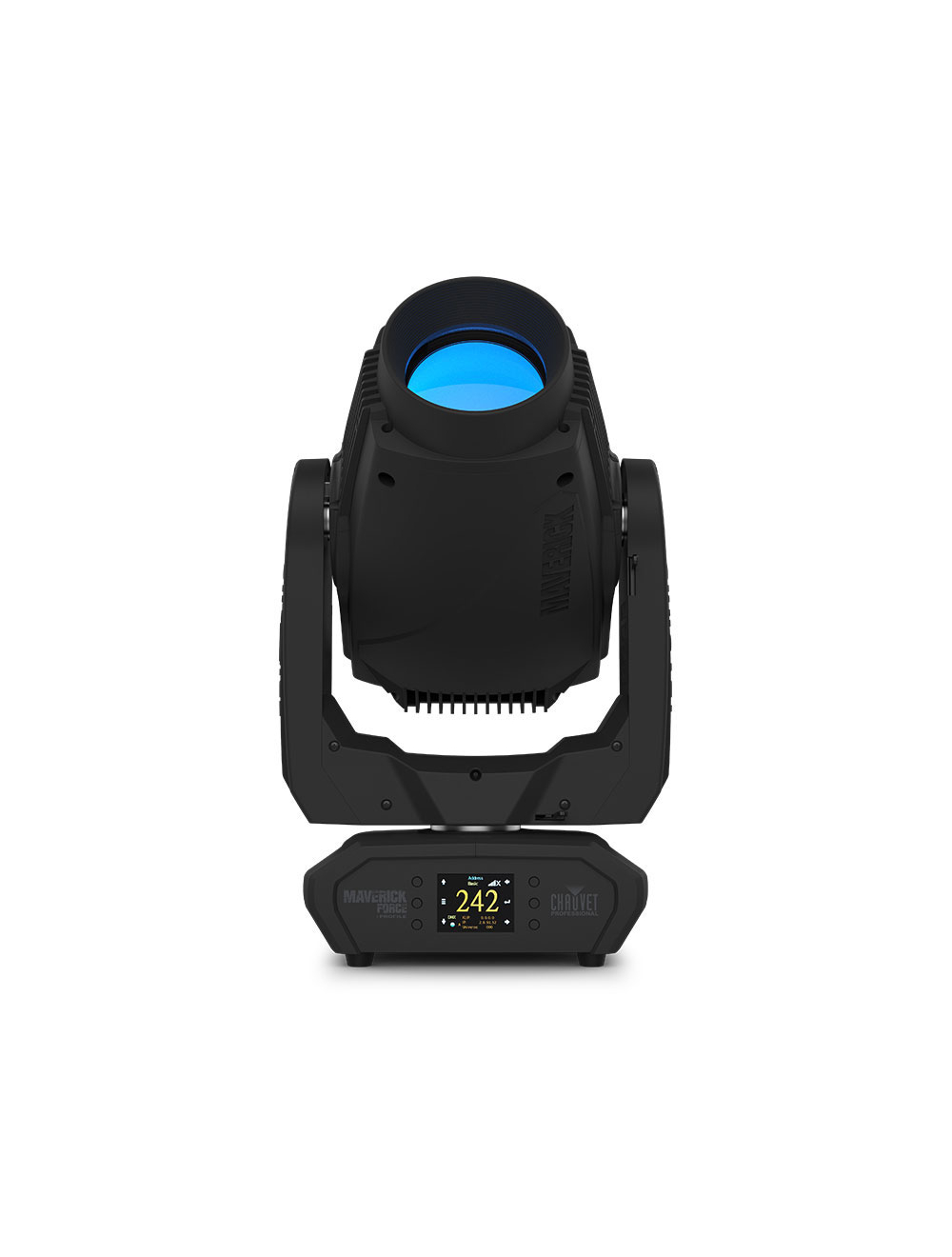

Chauvet Pro MAVERICKFORCESPROFILE Maverick Force S Profile 1 LED 350 Watt 100-240 Volt Multi-Faceted LED

AT A GLANCE
• Fully featured, compact and lightweight 350 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY color mixing system to create a wide pallet of colors
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM Enabled for remote addressing and trouble shooting
• 4.5° to 41.6° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• 4 blade framing shutters with dual axis movement, full wipe, and 120 degree total module rotation
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS
OPTICAL
• Light Source: 1 LED (CW) 350 W, (2.7 A), 8400K, 50,000 hours life expectancy
• Color Temperature (at full): 6937K
• CRI: 69
• CRI with CRI filter: 89.6
• Front Lens Dia: 119 mm
• Beam Angle: 4.5° to 35.9°
• Field Angle: 5.2° to 40.5°
• Zoom Angle: 5.8° to 41.6°
• Lumens - Source: 20,000
• Lumens – Output: 14,669
• Illuminance (4.5°) 51,865 lux @ 5 m
• Illuminance (41.6°) 1,648 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Colors: CMY Wheels
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (metal), continuous scroll at variable speeds
• Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 blades, each with dual axis movement.
• Framing Shutter rotation: 120°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL
• Dimensions: 28.94" x 12.40" x 17.13"
• Weight: 56.22 lb (25.50 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
• DMX Channels: 31 or 47
• Art-Net Channels: 31 or 47
• Modes/Personalities: 2 personalities (31, 47)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
• Power and Current: 563 W, 4.75 A @ 120 V, 60 Hz
• Power and Current: 547 W, 2.69 A @ 208 V, 60 Hz
• Power and Current: 546 W, 2.44 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP20, dry location
• Noise Level (Idle): 29.2 dB(A) @ 1 m
• Noise Level (Max): 35.7 dB(A) @ 1 m
• Noise Level (ECO): 31.6 dB(A) @ 1 m
• Noise Level (Auto): 33.1 dB(A) @ 1 m
• Noise Level (Full): 37.4 dB(A) @ 1 m
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED
• Maverick Force S Profile
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX cables
• IP Rated Seetronic® Powerkon Extensions
• Flight Case
• UPLOAD_08 software uploader
