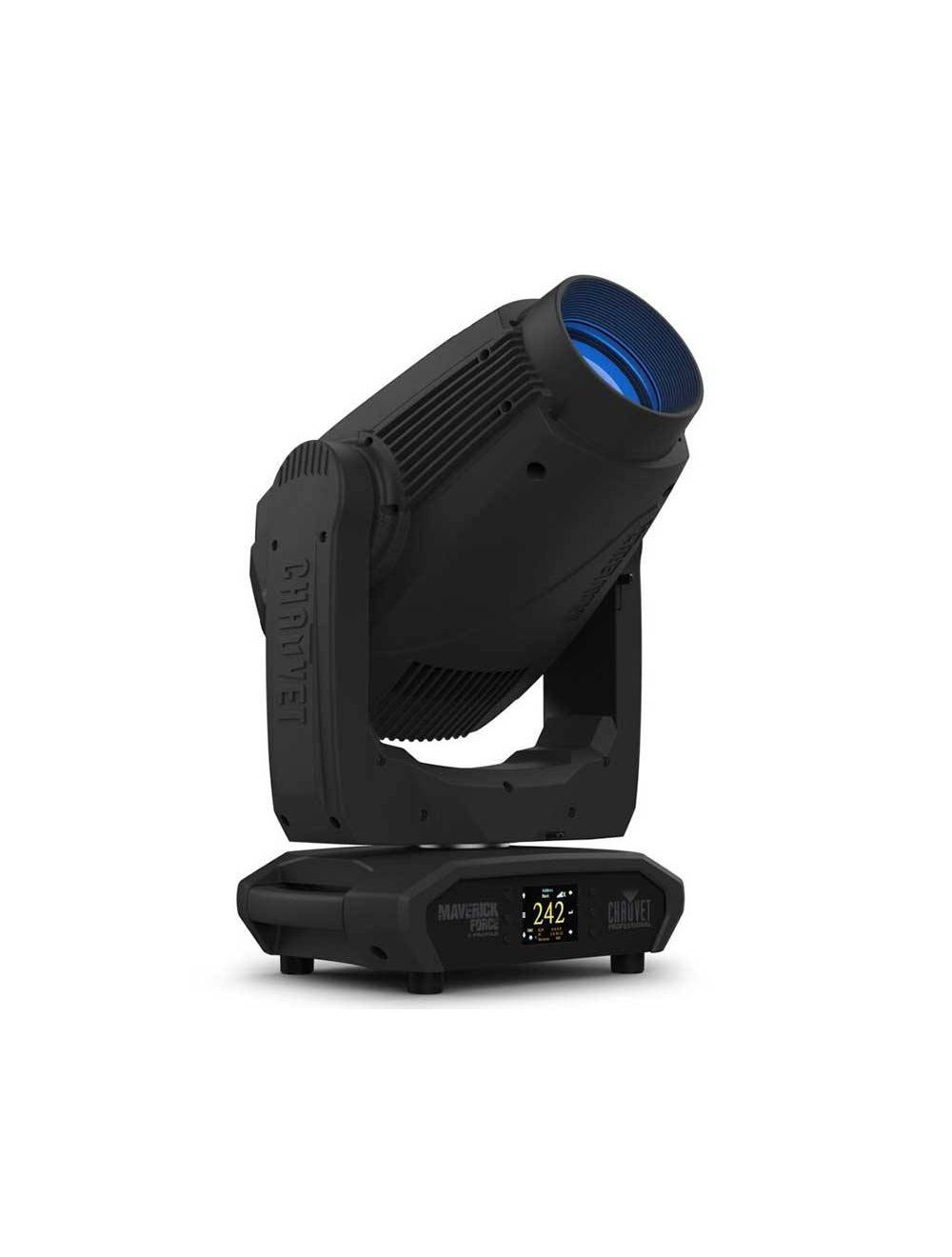

Chauvet Pro MAVERICKFORCE2PROFILE 1 LED 580 Watt 100-240 Volt Compact and Lightweight LED

AT A GLANCE
• Fully featured, compact and lightweight 580 W LED yoke profile fixture including CMY + CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, 8:1 zoom, a 5 facet prism wheel, and two rotating gobo wheels
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• Two rotating, indexing and interchangeable slot and lock gobo wheels
• DMX , WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 6.8° to 55.9° zoom range for variable beam sizes
• Iris, 5-facet prism and frost for beam control
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL
• Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7055 K, 50,000 hours life expectancy
• Color Temperature (at full): 7055 K
• CRI: 70.8
• CRI with CRI Filter: 89.3
• Front Lens Diameter: 127 mm
• Beam Angle: 6.8° to 48.1°
• Field Angle: 7.6° to 54.9°
• Cutoff Angle: 8.4° to 55.9°
• Zoom Range: 6.8° to 55.9°
• Lumens – Source: 39,000
• Lumens – Output: 20,856
• Illuminance (7°) 51,865 lux @ 5 m
• Illuminance (55.9°) 1,648 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag
• Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (rotating): 25.5 mm (outside), 18.5 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 blades, each with dual axis movement.
• Framing Shutter rotation: 120° total rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL
• Dimensions: 30.31" x 13.78" x 19.29"
• Dimensions (shipping size): 30.12 x 13.58 x 19.1 in (765 x 345 x 485 mm)
• Weight: 67.46 lb (30.60 kg)
• Weight (shipping weight): 61.73 lb (28 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 33 or 50
• Art-Net Channels: 33 or 50
• Modes/Personalities: 2 personalities (33, 50)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 800 W, 8.01 A @ 100 V, 60 Hz
• Power and Current: 780 W, 6.41 A @ 120 V, 60 Hz
• Power and Current: 764 W, 3.68 A @ 208 V, 60 Hz
• Power and Current: 754 W, 3.31 A @ 230 V, 50 Hz
• Power and Current: 762 W, 3.19 A @ 240 V, 50 Hz
• Power and Current (resting): 102 W, 1.02 A @ 100 V, 60 Hz
• Power and Current (resting): 101 W, 0.801 A @ 120 V, 60 Hz
• Power and Current (resting): 111 W, 0.532 A @ 208 V, 60 Hz
• Power and Current (resting): 123 W, 0.485 A @ 230 V, 50 Hz
• Power and Current (resting): 125 W, 0.467 A @ 240 V, 50 Hz
• Fuse Size: F13 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP20, dry location
• Noise Level (Idle): 25.1 dB(A) @ 1 m
• Noise Level (Max): 39.8 dB(A) @ 1 m
• Noise Level (ECO): 35.7 dB(A) @ 1 m
• Noise Level (Auto): 43.1 dB(A) @ 1 m
• Noise Level (Full): 46.3 dB(A) @ 1 m
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED
• Maverick Force 2 Profile
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
• Warranty Card
• Quick Reference Guide or User Manual

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic® Powerkon Extensions
• DMX cables
• Ethercon Extension cables
• Flight Case
• UPLOAD 08 software uploader
