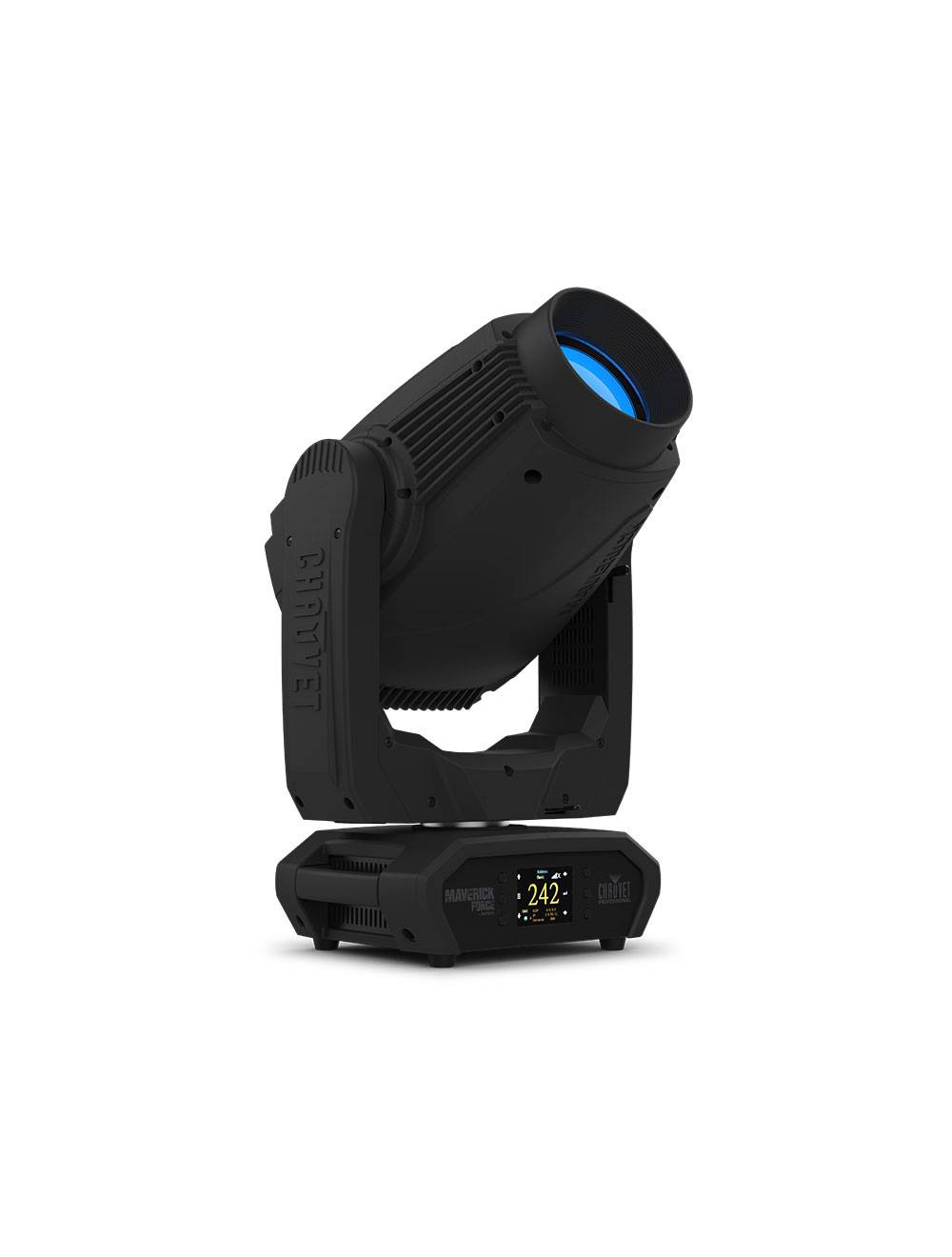

Chauvet Pro MAVERICKFORCESSPOT Maverick Force S Spot 1 LED 350 Watt 100-240 Volt Fully Featured, Compact and Lightweight LED

AT A GLANCE
• Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY color mixing system to create a wide pallet of colors
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM Enabled for remote addressing and trouble shooting
• 3.8° to 43.4° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL
• Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
• Color Temperature (at full): 6858 K
• CRI: 68.6
• CRI with CRI filter: 89.6
• Front Lens Diameter: 119 mm
• Beam Angle: 3.8° to 36.5°
• Field Angle: 4.8° to 40.4°
• Cutoff Angle: 5.1° to 43.4°
• Zoom Range: 3.8° to 43.4°
• Lumens - Source: 20,000
• Lumens – Output: 14,407
• Illuminance (3.8°): 62,004 lux @ 5 m
• Illuminance (43.1°): 1,745 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY Wheels
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
• Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL
• Dimensions: 28.94" X 12.40" X 17.13"
• Weight: 52.03 lb (23.60 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
• DMX Channels: 22 or 29
• Art-Net Channels: 22 or 29
• Modes/Personalities: 2 personalities (22, 29)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current: 554 W, 5.54 A @ 100 V, 60 Hz[6.0 A in-rush]
• Power and Current: 542 W, 4.53 A @ 120 V, 60 Hz[7.0 A in-rush]
• Power and Current: 522 W, 2.58 A @ 208 V, 60 Hz[15.0 A in-rush]
• Power and Current: 521 W, 2.33 A @ 230 V, 50 Hz[15.0 A in-rush]
• Power and Current: 521 W, 2.26 A @ 240 V, 50 Hz[15.0 A in-rush]
• Power and Current (resting): 77 W, 0.904 A @ 100 V, 60 Hz
• Power and Current (resting): 77 W, 0.701 A @ 120 V, 60 Hz
• Power and Current (resting): 76 W, 0.418 A @ 208 V, 60 Hz
• Power and Current (resting): 73 W, 0.375 A @ 230 V, 50 Hz
• Power and Current (resting): 74 W, 0.368 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP20, dry location
• Noise Level (Idle): 28.9 dB(A) @ 1 m
• Noise Level (Max): 36.1 dB(A) @ 1 m
• Noise Level (ECO): 31.5 dB(A) @ 1 m
• Noise Level (Auto): 33.6 dB(A) @ 1 m
• Noise Level (Full): 38.7 dB(A) @ 1 m
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED
• Maverick Force S Spot
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware
• Quick Reference Guide

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX cables
• Ethercon extension cables
• IP Rated Seetronic® Powerkon Extensions
• Flight Case:
• UPLOAD_08 software uploader
